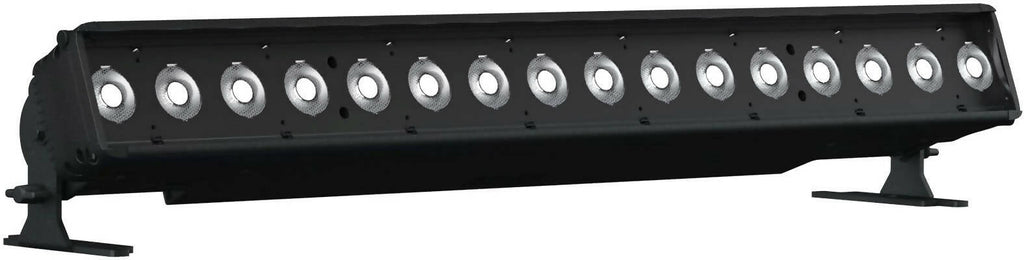

ColorSource Linear 2 Pearl

Measuring 1 meter in length, ETC's ColorSource® Linear Pearl 2 is a variable white-light LED batten luminaire that utilizes a mix of two different white LEDs. This enables the user to set the color temperature anywhere between 2700 K and 6500 K. The Pearl array includes the same great feature set and high quality construction as its full color sibling, including an impressively bright output and simple user interface.

Designed for installations that depend heavily on white light such as studios, houses of worship, and architectural installations, this array features flicker-free operation and an impressively smooth dimming curve.

ETC ColorSource Linear Pearl 2 Features:

• Linear 2 (1 Meter) - two cells of control
• 2700 K to 6500 K variable white light
• Homogenized optics
• Simple user interface with seven-segment display
• powerCON in and thru power connections
• DMX in and thru (5-pin XLR or RJ45)
• RDM or local configuration
• LED droop compensation for consistent output
• Optically calibrated
• Tour-ready, aluminum housing

ETC ColorSource Linear Pearl 2 Specifications:

• Part Number: CSLINEARPRL2
• General:
  • IP20-rated for indoor use
  • Power- and DMX-in/thru connections for simple setup
  • 7-segment, 3-button interface
  • (12) onboard, customizable presets
• Physical:
  • Rugged, die-cast, aluminum and plastic housing
  • Color: Black
  • Trunnions and power cable included
  • Dimensions (HxWxD)*: 4.29" x 39.37" x 6.04" (109 x 1000 x 153 mm)
  • Product Weight*: 20.1 lbs (9.12 kg)
  • Shipping Weight: 23.5 lbs (10.66 kg)
• Electrical:
  • 100VAC to 240VAC 50/60Hz universal power input
  • powerCON in and thru power connections
  • Up to 10 luminaires total per 20A switched circuit when used with ETC R20 relay module or similar equipment
  • Inrush: 35.6A (first half-cycle) at 120V
  • Wattage: 219W typical, 3W standby
  • Current draw: 1.83A at 120V
• Source*:
  • 36,000-hour LED life (at 70% intensity)
  • 80 Luxeon® Z LED emitters (5 per optic)
  • 11,298 max lumens
  • 52 lumens per watt
• *See additional LED notes and photometrics in the Datasheetlocated under"Documentation" tab.
• Color:
  • Warm white, cool white
  • 2700 K - 6500 K color temperature range
  • Calibrated array
• Optical:
  • 15° beam angle
  • Camera flicker control: 1.2 kHz (default) and 25 kHz (via RDM)
  • Secondary lenses available for multiple beam-spread options (
• Control:
  • DMX512 in and thru via 5-pin XLR or RJ45 connectors (End-of-line termination required)
  • Supports DMX and RDM protocols
  • RDM support for address and setting changes
  • Modes (footprint):
    • Variable color temperature: ICt (2)
    • Direct: IWCS (4)
    • Single channel: I (1)
  • 7-segment address display
  • Local control of 12 presets
• Thermal:
  • Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
  • Ambient operating temperature of 32° to 104°F (0° to 40°C)
  • Active electronic thermal management using variable-speed fan
  • 28.4dBa average at 1m
  • 747 BTUs/hour
