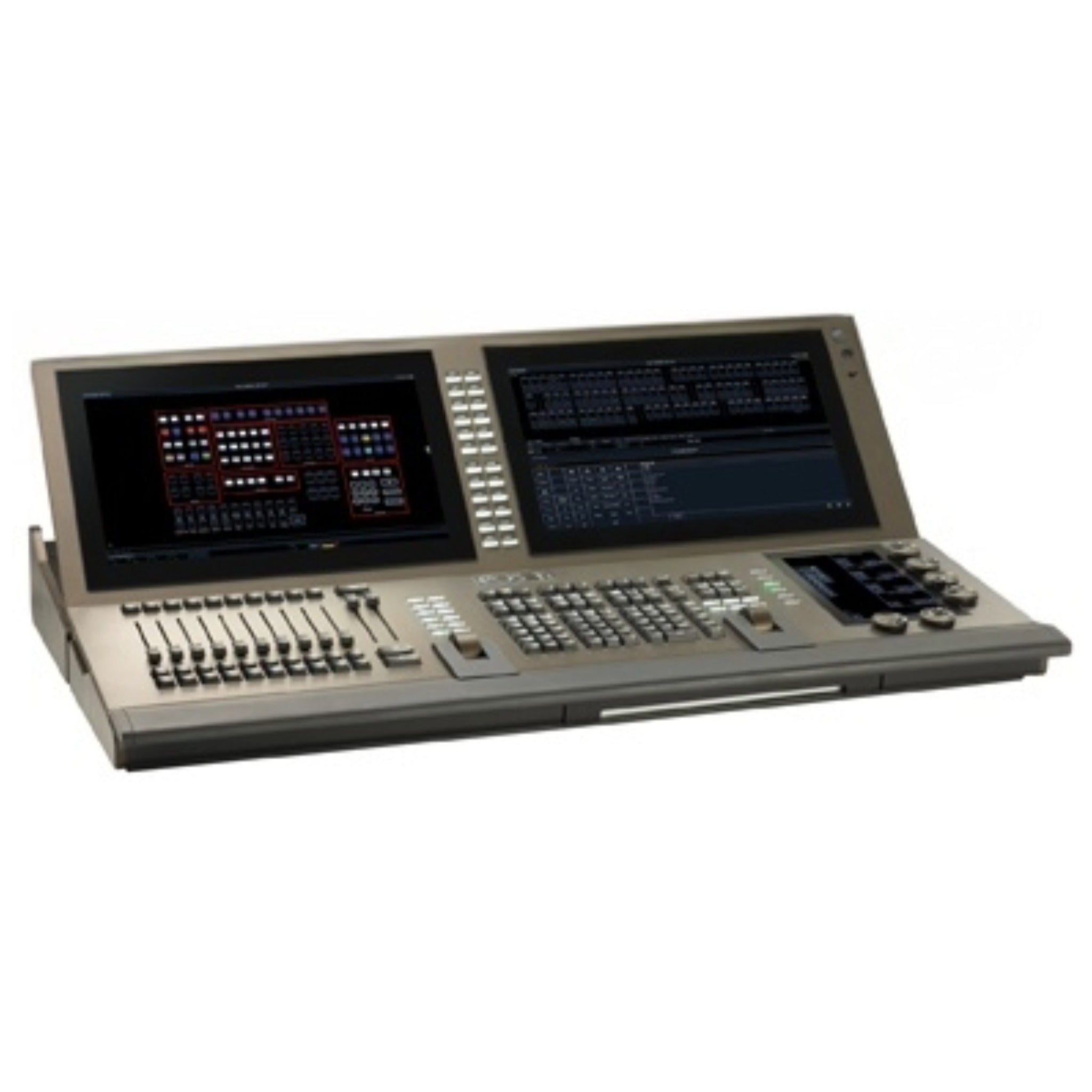

EOS Ti 16,384 Ch ETC Console

The ETC Eos Ti 16,384 Ch is a professional lighting control console designed for large-scale theatrical, broadcast, touring, and live production environments. Built on the Eos control platform, it provides 16,384 outputs, extensive control-channel capacity, advanced cue control, powerful networking, and flexible external display support for demanding show programming and playback workflows.

• Professional Eos Ti lighting control console for large-scale productions
• 32,768 control channels mapped to any number from 1 to 99,999
• Supports extensive cue, cue list, submaster, palette, preset, group, effect, macro, snapshot, curve, and color path storage
• Two individually configurable ethernet ports with ETCNet2, Net3, Artnet, and Avab UDP output protocols
• Four DMX-512 / RDM ports for direct lighting control connectivity
• Three DisplayPort outputs for high-resolution external displays with optional touch screen control
• USB ports for flash drives, pointing devices, and keyboards
• Gateway support for MIDI, SMPTE, OSC, UDP, contact closure, and RS-232 workflows

• Product Type: Lighting control console
• Model: Eos Ti 16,384 Ch
• Outputs: 16,384 Outputs
• Control Channels: 32,768 Control Channels (mapped to any number from 1 to 99,999)
• Cues: 10,000 Cues
• Cue Lists: 999 Cue Lists
• Submasters: 999 Submasters
• Fader Pages: 100 Fader Pages
• Palettes: 4 x 1000 Palettes (Intensity, Focus, Color, Beam)
• Presets: 1000 Presets (all palette)
• Groups: 1000 Groups
• Effects: 1000 Effects (relative, absolute or step)
• Macros: 99,999 Macros
• Snapshots: 1000 Snapshots
• Curves: 1000 Curves
• Color Paths: 1000 Color Paths
• Storage: Solid-state hard drive
• Network Interfaces: Two individually configurable ethernet ports, 802.3af compliant PSE
• Protocols: ETCNet2, Net3 (powered by ACN), Artnet, and Avab UDP output protocols
• DMX Ports: Four DMX-512 / RDM Ports
• Display Outputs: Three Display Port connectors support high-resolution external displays (1280x1024 minimum) with optional single-touch or multi-touch screen control
• USB: USB multipurpose (11 ports)
• External Control: OSC Transmit and Receive; UDP Transmit and Receive
• Gateway Support: MIDI Timecode, MIDI Show Control and MIDI Notes; SMPTE Timecode; contact closure (12 analog inputs, 12 SPDT contact outputs, RS-232)
• Height: 14.58" (370mm)
• Width: 39.50" (1003mm)
• Depth: 26.25" (667mm)
• Weight: 85 lbs (38.5kg)

Ideal for theaters, opera houses, concert touring, broadcast studios, theme parks, houses of worship, live events, and large installed lighting systems that require high channel capacity, advanced cueing, and flexible networked control.
