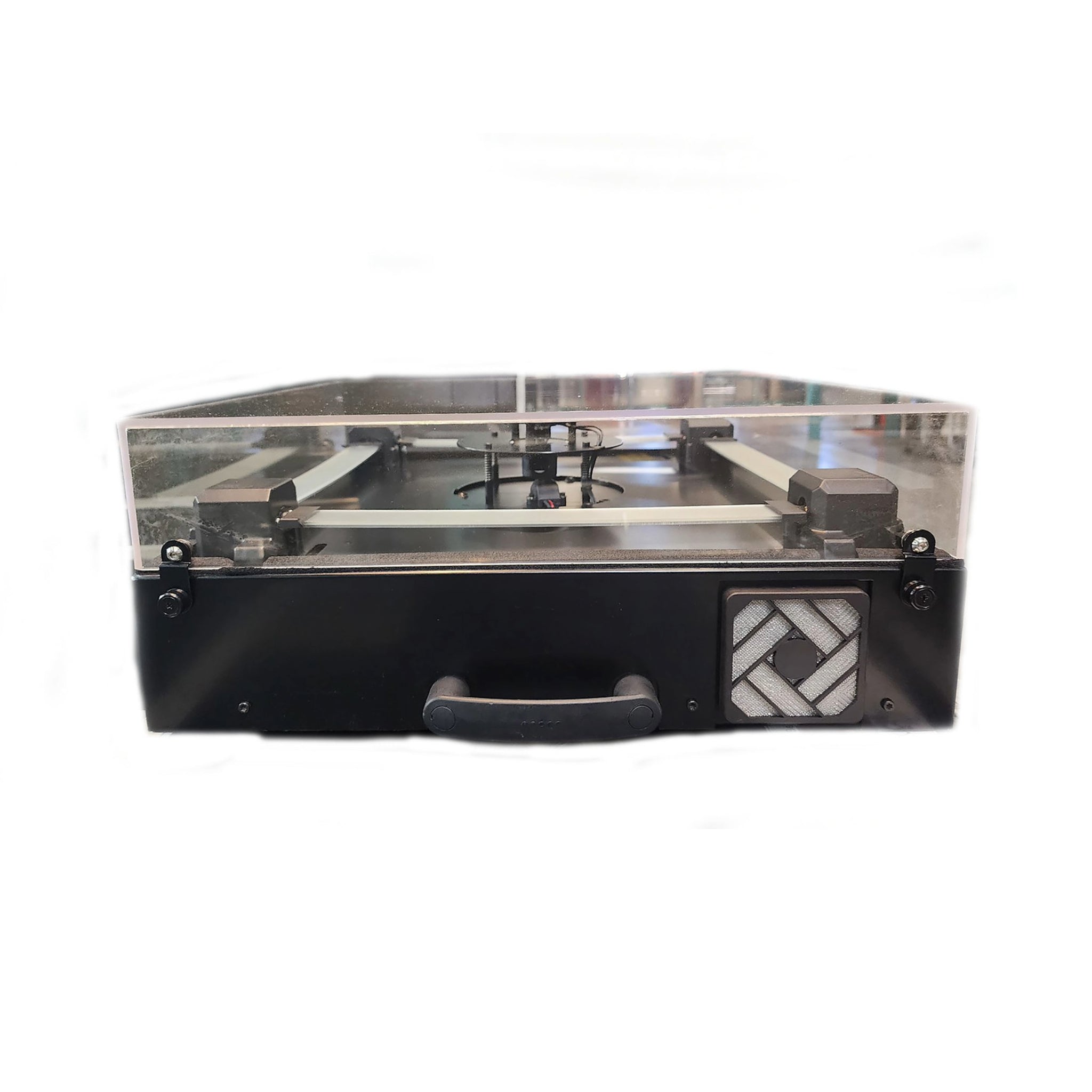

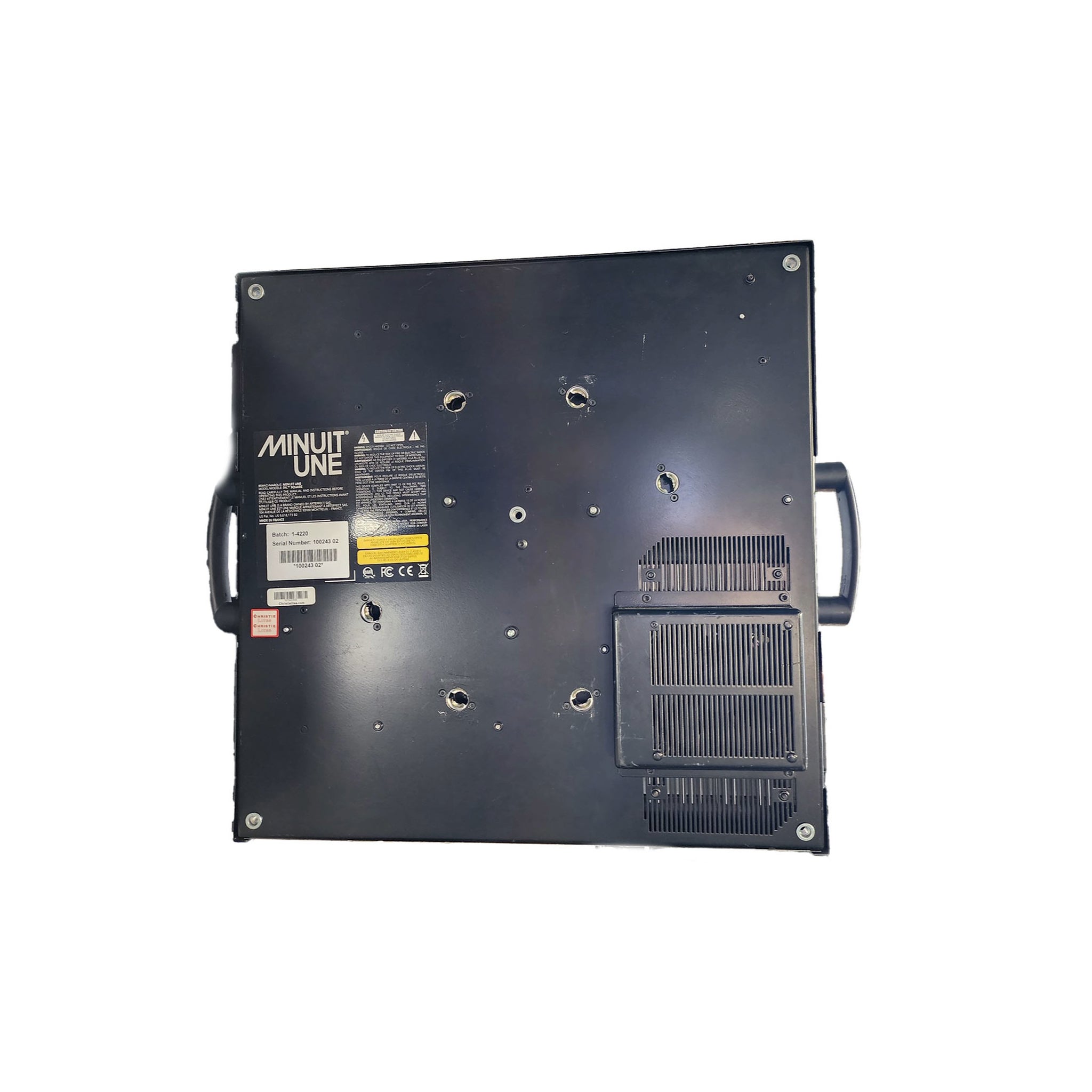

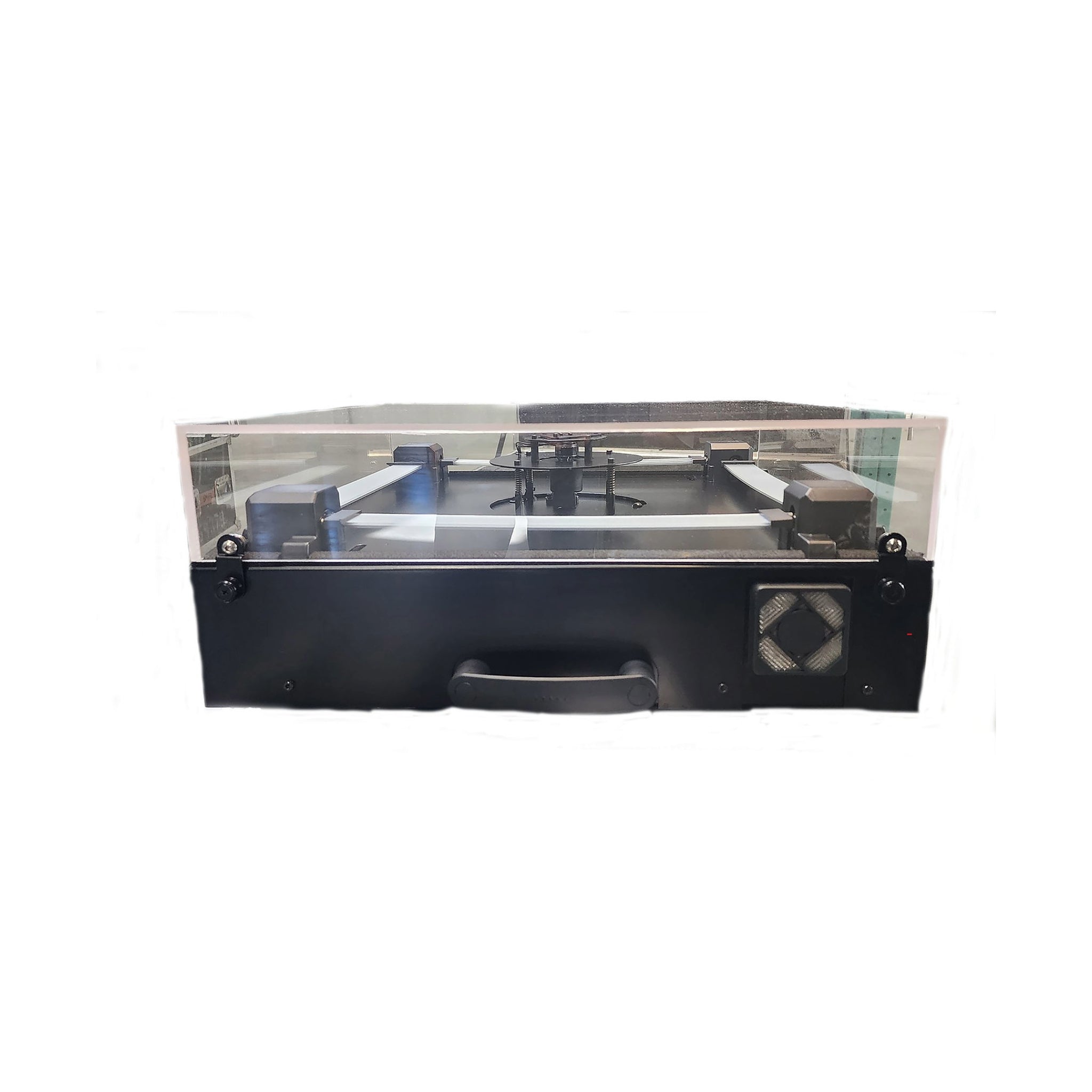

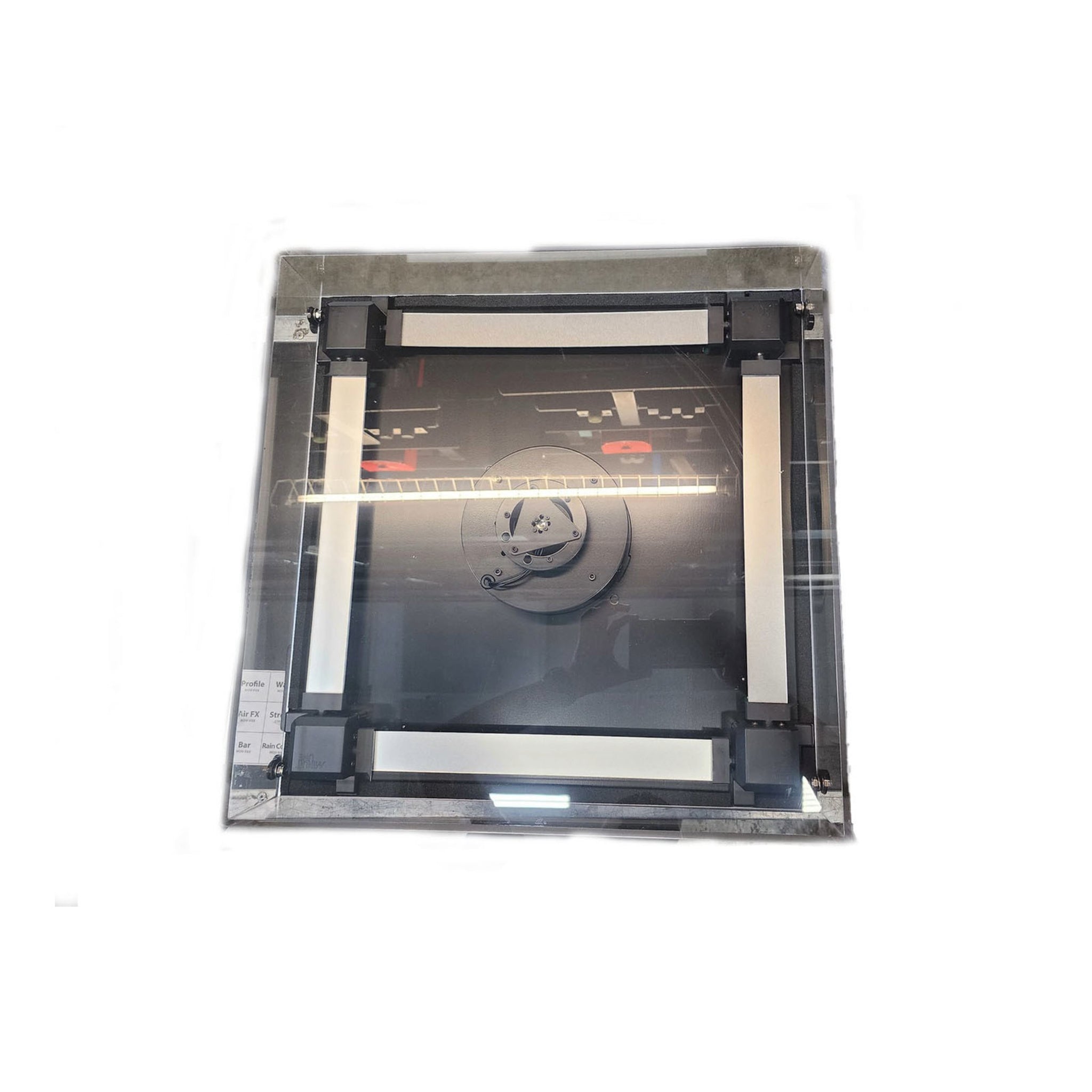

IVL Square

The IVL Square is a multi-directional immersive light fixture designed to transform space with wide-angle coverage, smooth RGB textures, and deep 3D perspectives. An evolution of the IVL Carré, this US variant delivers four independently tilting light planes from a single compact unit. With beam control from 1 to 256 cuts, dual light modes, and programmable tilt movement, IVL Square offers an entirely new visual dimension - all without heavy logistics or special variances.

• 4 directional light planes with 180° tilt movement (16-bit resolution)
• Beam control from 1 to 256 segments via gobo-like programming
• Dual lighting modes: directive beam or wide wash per light plane
• Two beam shape options: square or pyramid cover
• Smooth RGB textures and calibrated wide-area output
• Certified Class 3R laser fixture - no variance required
• Touch-free, flicker-free, immersive 3D rendering effects
• Programmable via any standard DMX console
• Lightweight design (16 kg) with durable aluminum construction
• Optimized for touring, TV, corporate, and immersive events

• Light Source: Class 3R laser (extended source), 450 nm / 520 nm / 638 nm
• Beam Diameter: >12 mm at scanning vertex
• Beam Divergence: >1.5 mrad
• Beam Range: 1° to 80°
• Color: Smooth RGB spectrum
• Scan Rate: 340 Hz
• Pulse Energy: 13.8 ?J typical
• Emission Limit: <15.5 ?J
• Modes: Mode 1: 25 channels / Mode 2: 45 channels
• Tilt Movement: 4 brushless step motors, 0°-180°, 16-bit
• Gobo System: Intuitive indexing with rotation support
• Housing: Aluminum body, black matte with PMMA covers
• Dimensions (L x W x H): 592 x 520 x 242 mm
• Weight: 16 kg (35.3 lbs)
• Power Supply: 100-240 V AC, 50/60 Hz
• Power Consumption: 75 W max
• Cooling: Temperature-regulated with overheat protection
• Control: DMX (5-pin XLR), RDM
• Power Connectors: Neutrik PowerCon True1 in/out
• IP Rating: IP20
• Mounting: Six quarter-turn locks, safety cable point
• Operating Temp: 0°C to 40°C (32°F to 104°F)
• Certifications: CE, EN 60825-1, EN 60825-3, EN 60065, EN 62311

Designed for lighting designers, visual artists, and event producers seeking immersive light effects without logistical complexity. Ideal for concerts, fashion shows, broadcast, touring, corporate events, and creative installations across all genres - from rock and pop to classical and electronic.
