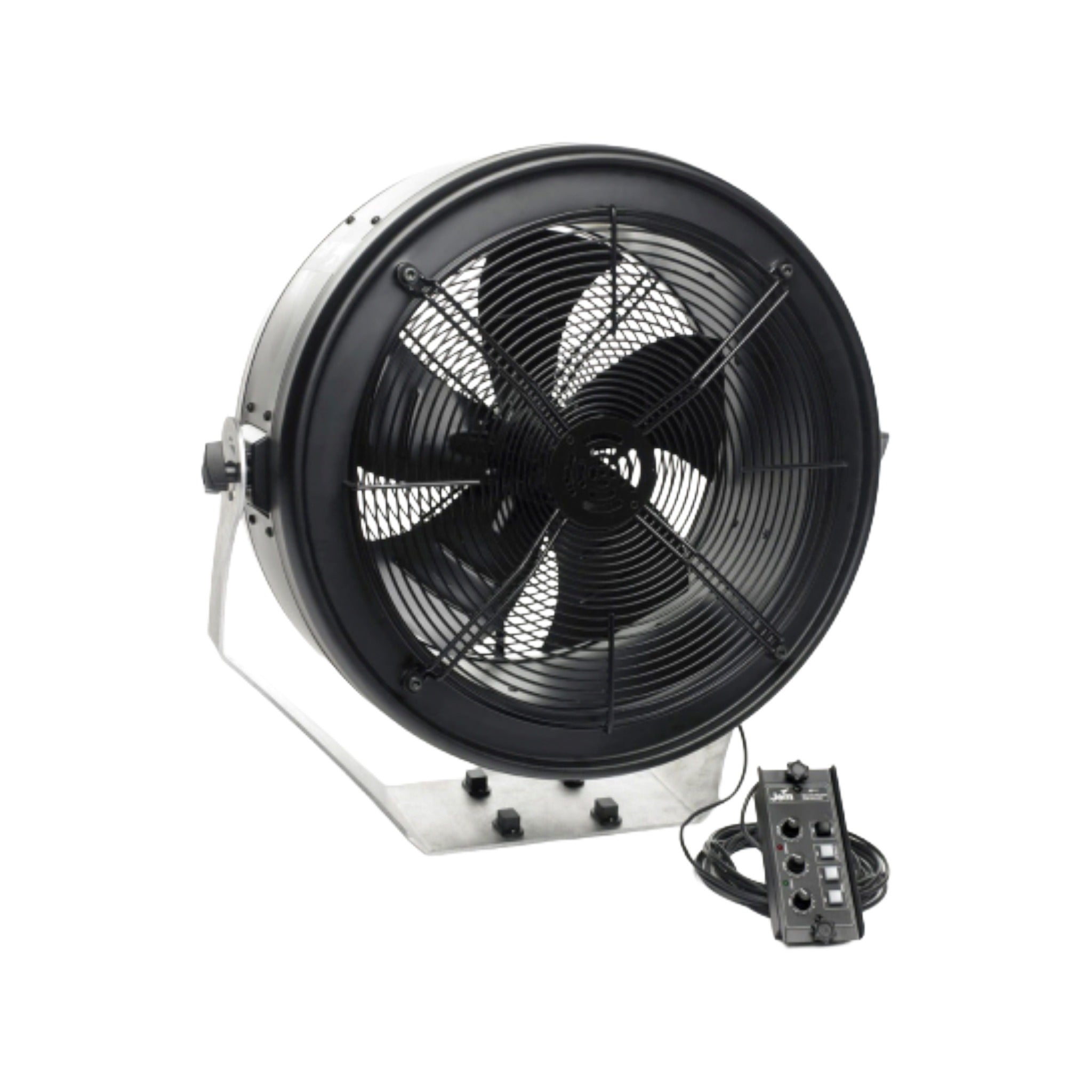

AF 2 Fan 120 volt

The JEM AF-2 is a high-output, fully DMX-controllable fan designed for demanding atmospheric applications in stage, studio, theme park, and film environments. Featuring a powerful 24" sealed axial fan and integrated DMX with 1-channel operation, it delivers variable-speed air movement with quiet performance in a rugged, road-ready design. An analog timer remote control is also included for versatile operation.

• 24" sealed axial fan motor resistant to moisture and condensation
• Variable speed and range control with instant-on capability
• Analog timer remote control and integrated DMX (1-channel)
• Quiet operation at full speed (max 73 dBA)
• Fan output adjustable from 0–100%

• Airflow: 5,700 m³/h (201,295 ft³/h), 3,355 CFM
• Fan Speed: 0–1,400 rpm
• Noise Level: Max 73 dBA
• DMX Protocol: ANSI E1.11 – USITT DMX512-A, 1 channel
• Remote: Analog timer remote, 3-pin XLR, 5 m (16.4 ft) cable
• Housing: Black aluminum with sealed fan motor
• Power (EU): 220–240 V, 50/60 Hz, 245 W, IEC C14 inlet
• Power (US): 100–130 V, 50/60 Hz, 350 W, NEMA 5-15P plug
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Mounting: Accepts Omega clamps; operable in any orientation
• Minimum Clearance: 101 mm (4 in)
• Dimensions (with flying bracket): 700 × 680 × 310 mm (27.5? × 26.8? × 12.2?)
• Weight (with flying bracket): 17.5 kg (38.6 lb)

The JEM AF-2 is ideal for live concerts, theatrical productions, film shoots, and themed attractions that require reliable and controlled air movement. Its quiet performance, DMX compatibility, and durable design make it well-suited for both touring rigs and permanent installations.
