Overview

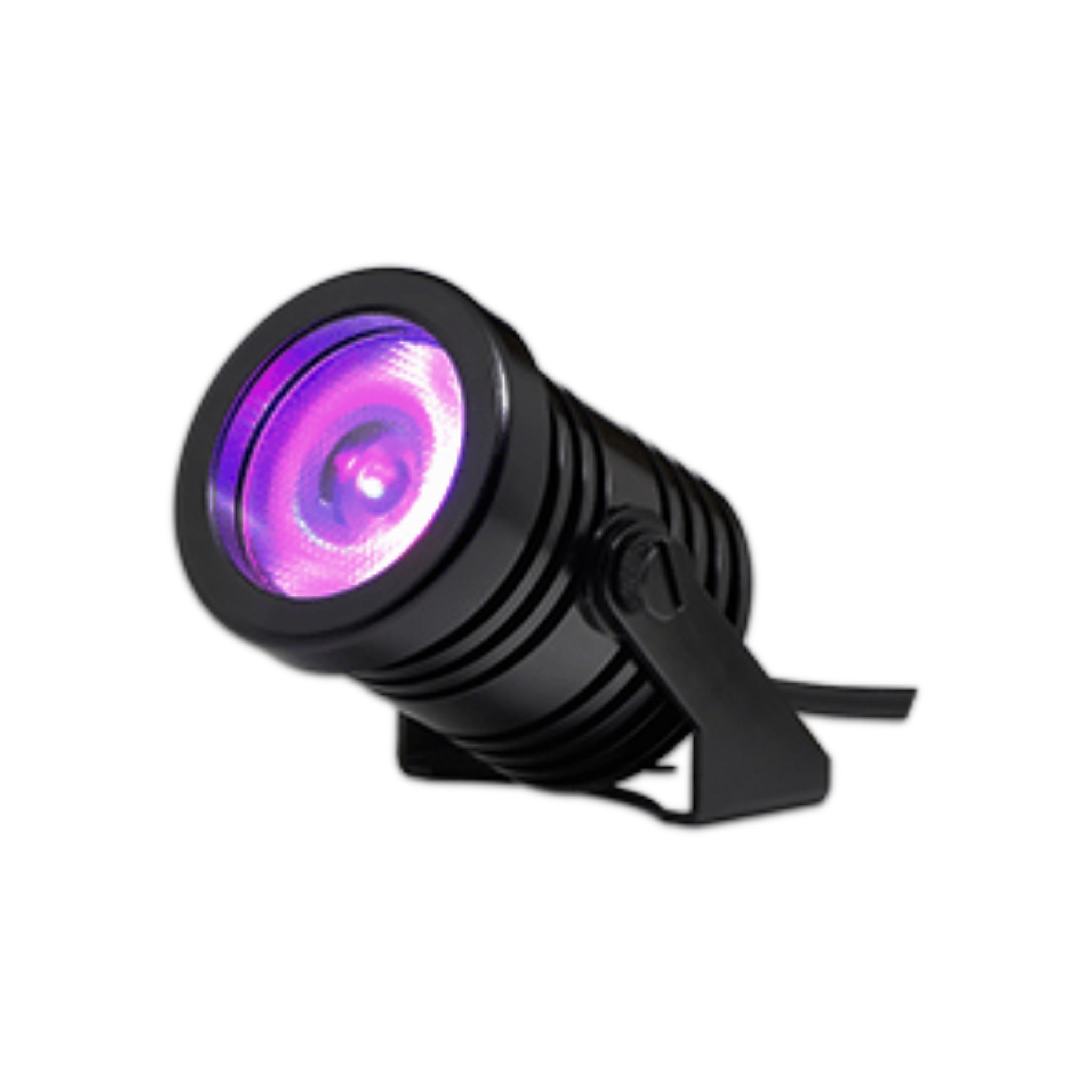

The Gantom 7 is a compact 7 Color DMX Spotlight designed for themed environments, architectural accents, stage details, props, animatronics, and special effects. Its RGBWAL(UV) LED engine expands beyond standard RGBW with amber, lime, and ultraviolet for a wider color palette, while native DMX control and a precision-tuned dimming curve support smooth, reliable integration in demanding installations.
Key Features
- Full spectrum output with 7 LED colors for rich, expanded color creation.
- Native DMX control with stored DMX address and configuration memory.
- Precision-tuned non-linear dimming curve and color balance algorithm.
- Standalone mode allows set-and-forget operation without DMX signal.
- Low-voltage operation and minimal heat for improved safety over incandescent sources.
- Internal constant-current driver for highly efficient and consistent output.
- Compact black anodized aluminum housing for discreet professional installations.
Technical Specifications
- Product Type: 7 Color DMX Spotlight
- Product Models: GC277B - Gantom 7 - RJ45 Connector; GP277B - Gantom 7 - Pro Cable Connector
- LED Model: Proprietary 7 color LED chip
- LED Color: Red (635nm), Green (515nm), Blue (450nm), Amber (598nm), White (6500k), Lime (550nm), UV (395nm)
- Beam / Field Angle: 15° / 35°
- Photometrics at Full Power: 650 lx (60.4 fc) at 1m (3.3ft); 220 lx (20.4 fc) at 2m (6.6ft); 100 lx (9.3 fc) at 3m (9.8ft)
- DMX Channel Footprint: 8
- Addressing: DarkBox Programmer
- Lowest Dimming: 0.05%
- DMX Mapping: CH. 1 Master Intensity (0%-100%); CH. 2 Red Intensity (0%-100%); CH. 3 Green Intensity (0%-100%); CH. 4 Blue Intensity (0%-100%); CH. 5 Amber Intensity (0%-100%); CH. 6 White Intensity (0%-100%); CH. 7 Lime Intensity (0%-100%); CH. 8 UV Intensity (0%-100%)
- Voltage: 12-24V DC
- Max Wattage: 7.5W
- Dimming: DMX
- Material: Black Anodized Aluminum
- IP Rating: IP65 / IP67 - With FA47 Installed
- Weight: 315 grams (11.1 oz)
- Ambient Operating Temperature: 0-50° C (32-122° F)
- Cooling Method: Passive
Use Cases
Ideal for themed entertainment, theater and stage accent lighting, retail displays, architectural accent lighting, props and animatronics, and compact special effect lighting where precise color, DMX control, and discreet fixture placement are required.
