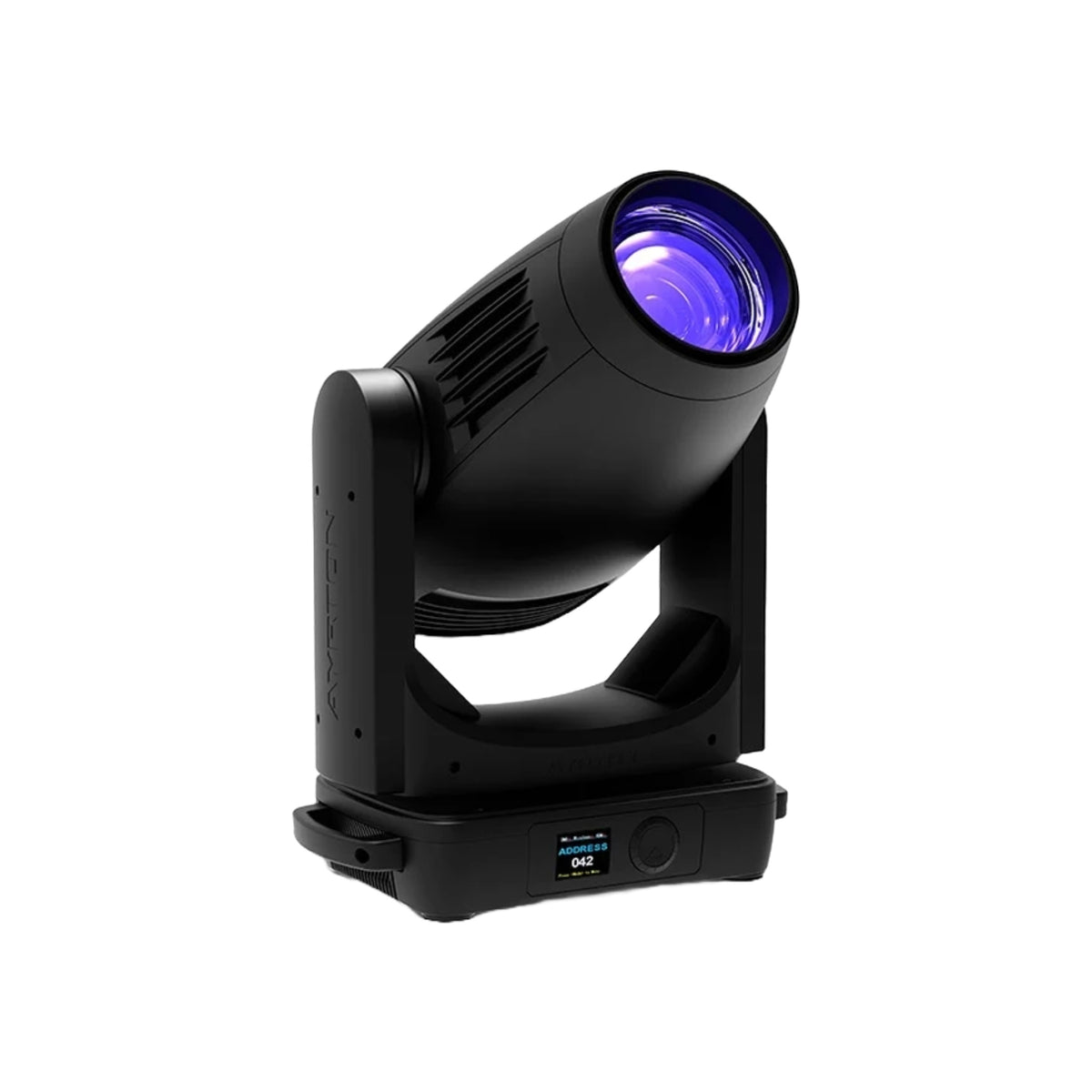

Khamsin S Ayrton Moving Light

The Ayrton Khamsin S is a high-output IP20 LED profile in a compact Ghibli form, delivering 40 000 lm at 7 000 K via a 750 W white LED module. Its redesigned cast-aluminium frame and efficient liquid cooling enable 8:1 zoom (7°–58°), CMY+CTO mixing, dynamic framing, dual gobo wheels, animation, iris, frost, and prisms for stadium and arena productions.

• 40 000 lm white LED engine (Khamsin S) at 7 000 K, CRI>70
• 13-element optic with 158 mm frontal lens; 8:1 zoom from 7° to 58°
• Subtractive CMY with variable CTO + 6-position complementary color wheel
• Framing system: 4 blades with 100% coverage; ±45° module rotation
• Dual gobo wheels: 6 HD glass gobos + open; dynamic animation wheel
• 15-blade iris; light & heavy frost; 5- and 4-facet rotating prisms
• Advanced liquid cooling & microprocessor stepper motors for silent precision
• On-board LCD, DMX512-A/RDM, Art-Net & sACN control; wireless CRMX option
• Robust ABS/metal housing with transport handles & heavy-duty feet

• Output: 40 000 lm; 7 000 K; CRI>70; L70 40 000 h
• Optics: 7°–58° zoom; 158 mm lens; flat even field
• Movement: Pan 540°; Tilt 262°; 8/16-bit stepper motors
• Control Channels: 40–64 DMX channels
• Power: 120–240 VAC; 1 150 W max; PFC electronic supply
• Dimensions: 490×330×841 mm; Weight: 39.8 kg
• Operating Temp: –10 °C to 45 °C; Protection: IP20
• Certifications: CE, UL 1573, FCC Part 15

Designed for large-scale venues, arenas, and touring productions, the Khamsin S delivers powerhouse framing and projection effects in a compact footprint, ensuring reliability and versatility under demanding conditions.
