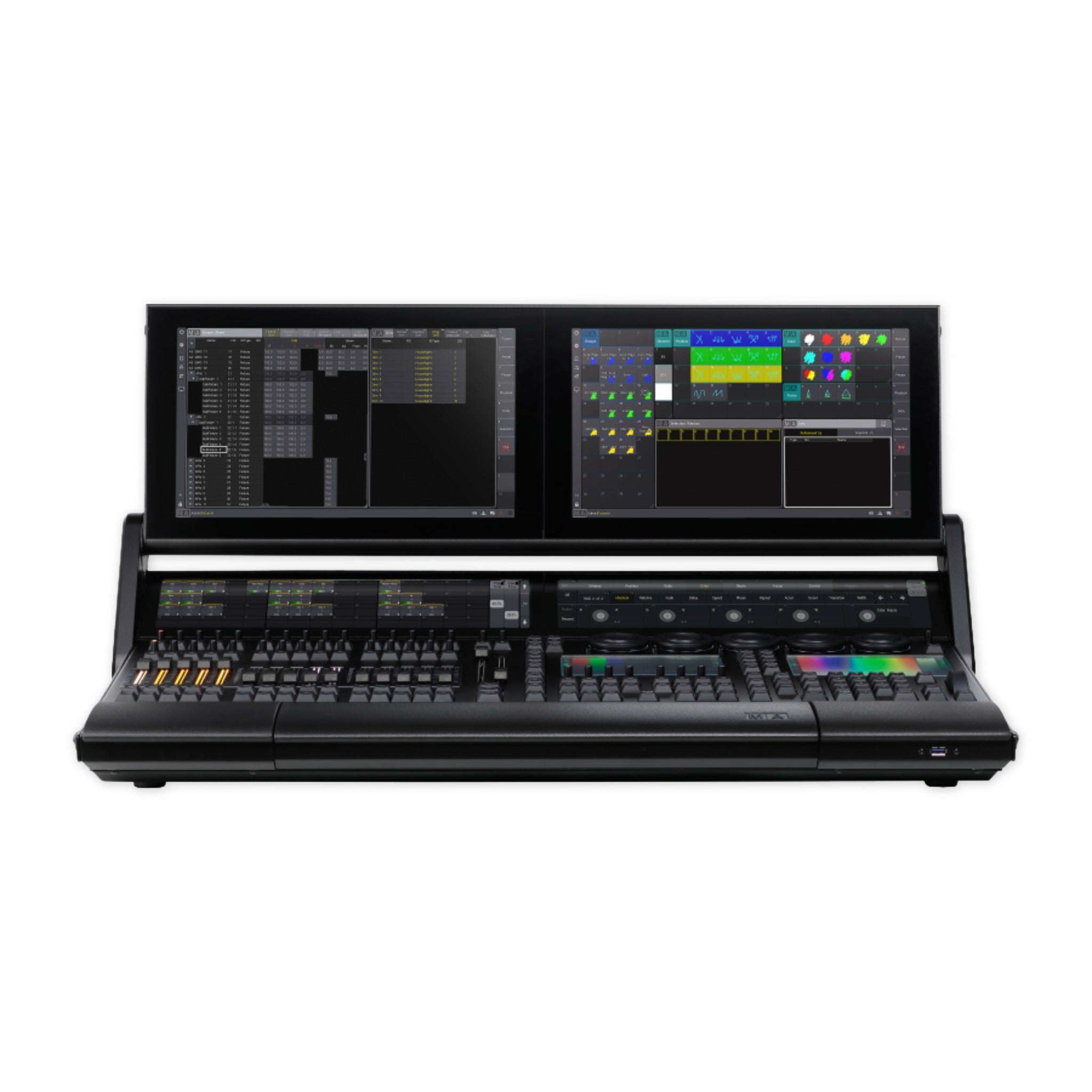

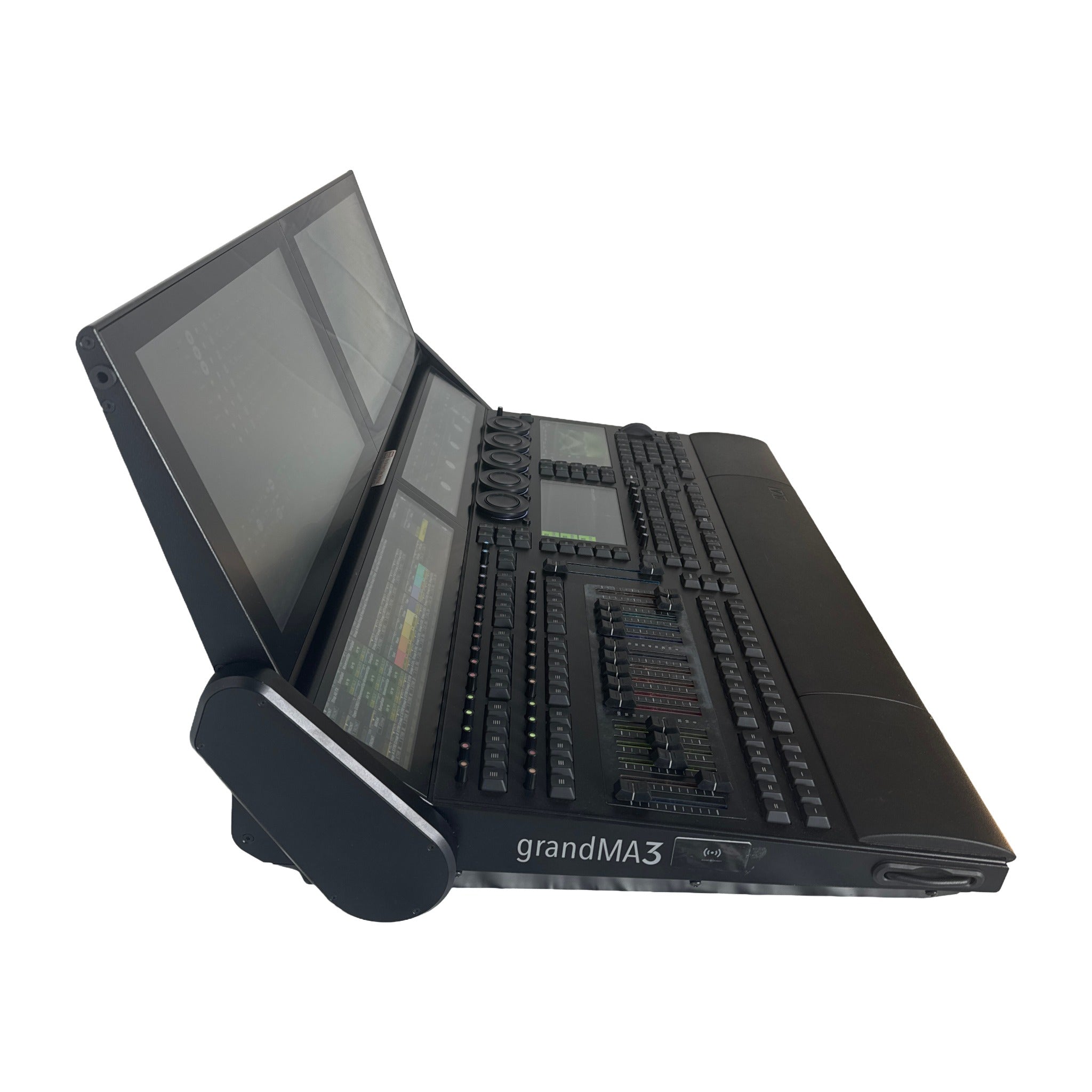

grandMA3 Light

The grandMA3 Light Console is the work horse of the MA Lighting range, offering an ideal balance of power and physical size for a wide variety of professional lighting applications. With a large multi touch display area, extensive playbacks, and flexible control hardware, it suits everything from corporate events and houses of worship to touring and theatre productions. Compatible with both grandMA2 and grandMA3 software, the Light Console delivers intuitive control, deep system capacity, and smooth workflow for designers and programmers of all levels.

• Powerful control platform with 16,384 parameters standard (expandable to 250,000 with processing units)

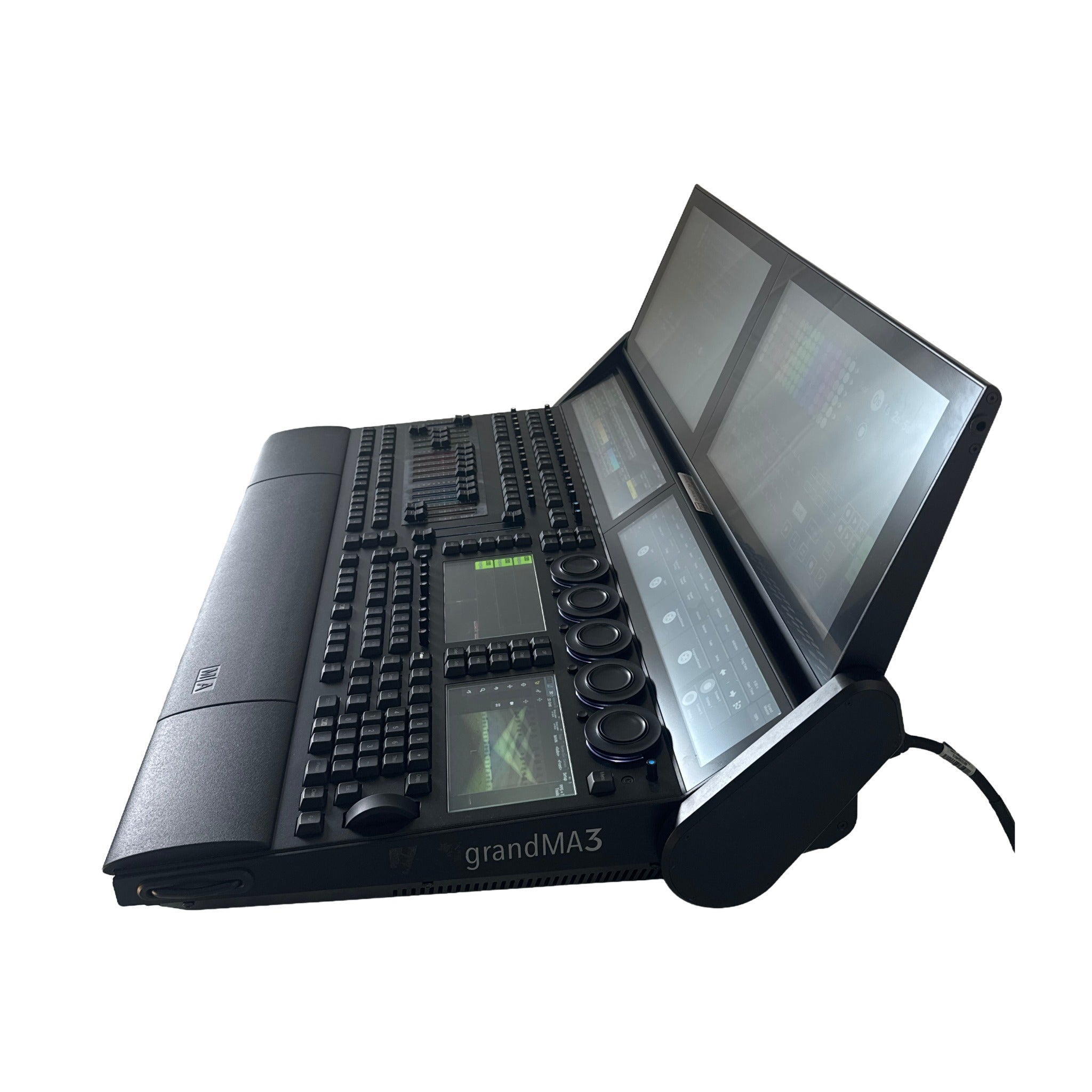

• Two built in foldable multi touch screens plus two context sensitive letterbox multi touch screens
• Supports up to two external multi touch displays

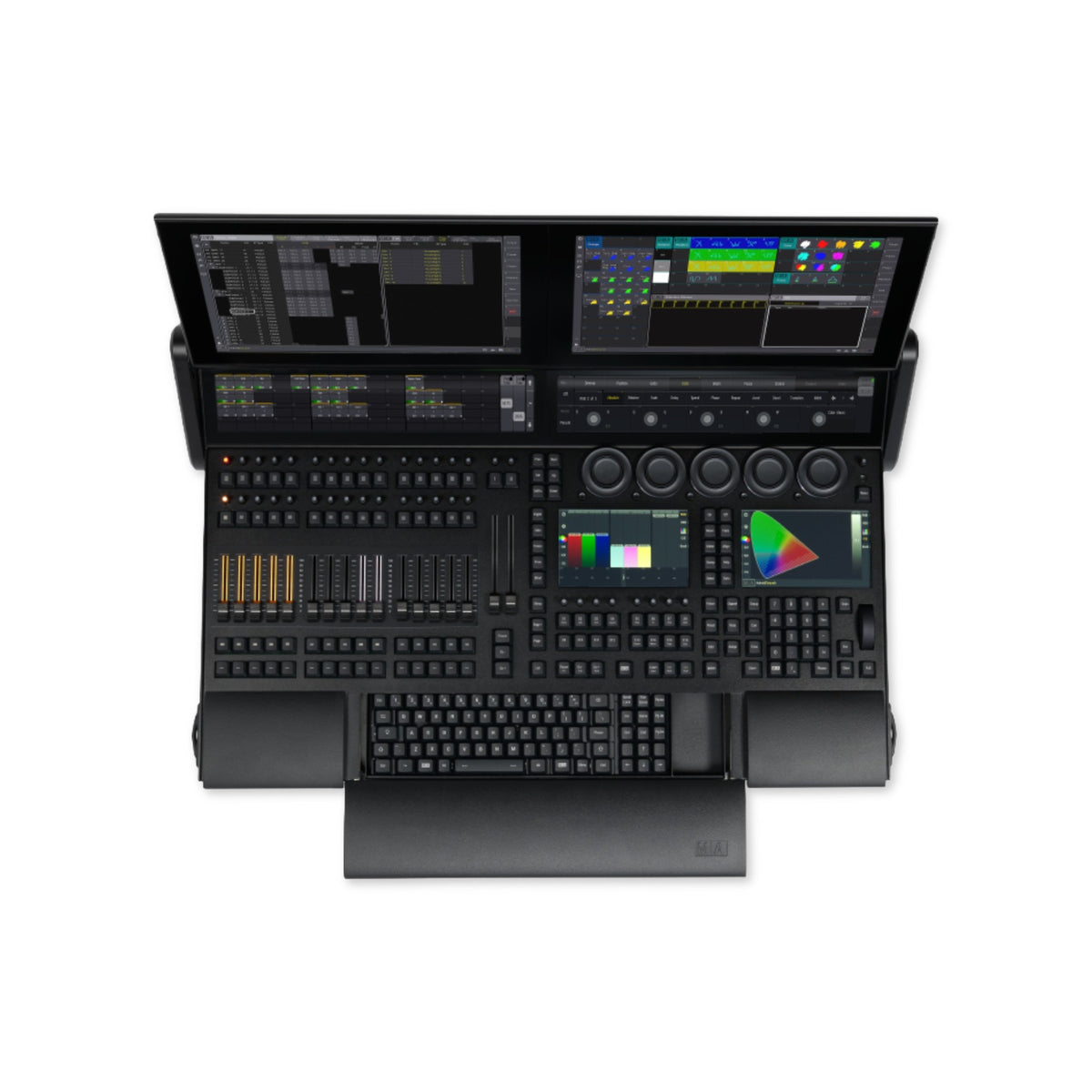

• 60 physical playbacks and 16 assignable x keys for flexible cue access
• Fifteen motorized 60 mm faders and two motorized A/B faders (100 mm) with RGB light pipes
• 41 rotary RGB backlit encoders and 5 dual backlit encoders for parameter control
• Integrated keyboard drawer and built in uninterruptible power supply (UPS)
• Ergonomic, silent running design with intuitive layout
• Supports GDTF (General Device Type Format) for consistent fixture behaviour
• Compatible with grandMA2 and grandMA3 operating software

• System Parameters: 16,384 (HTP/LTP); Mode2: 4,096
• Playbacks: 60 physical playbacks
• Assignable Keys: 16 x keys
• Encoders: 41 rotary RGB backlit and 5 dual backlit encoders
• Faders: Fifteen motorized 60 mm and two motorized A/B 100 mm faders
• Displays: Two foldable multi touch screens; two letterbox multi touch screens; external display support

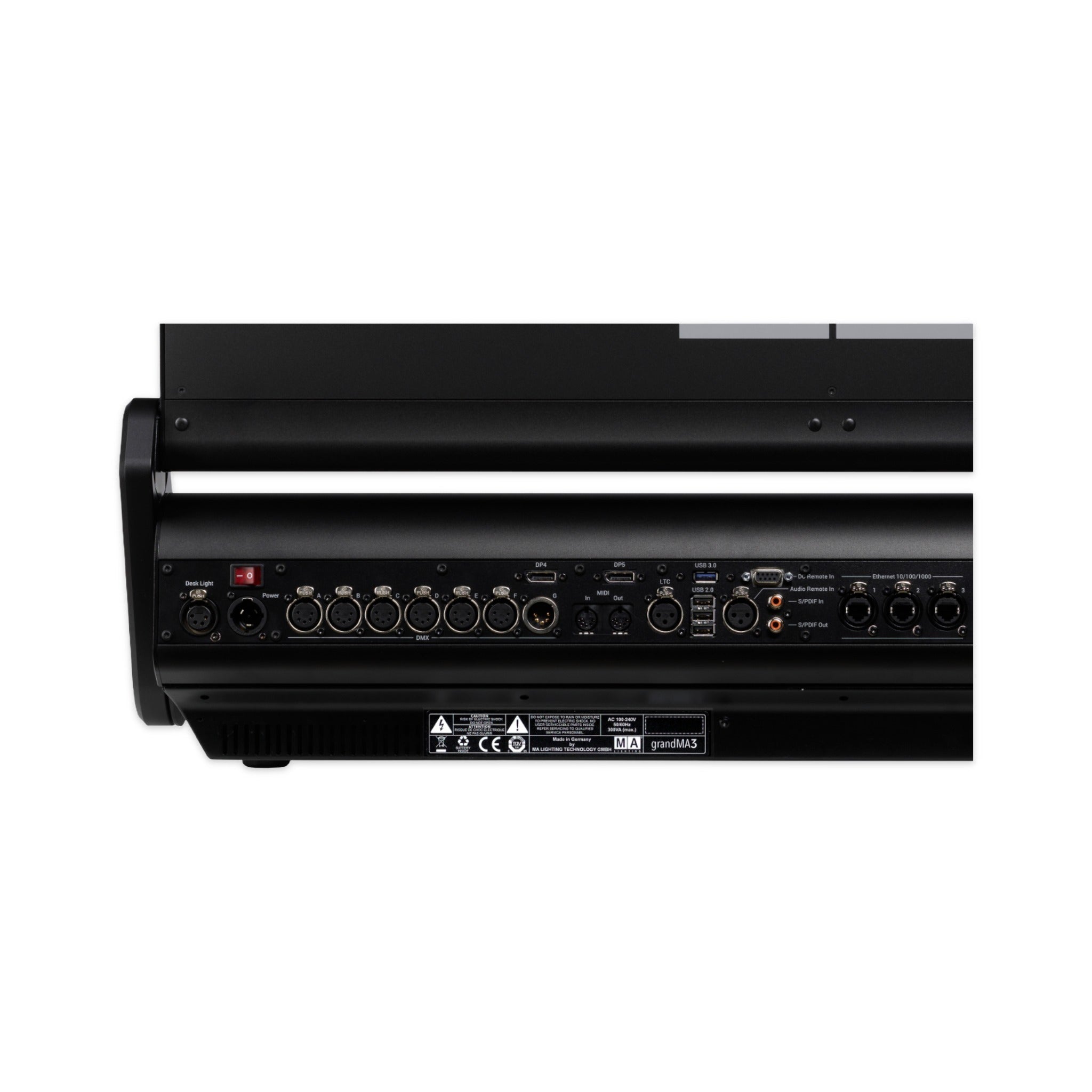

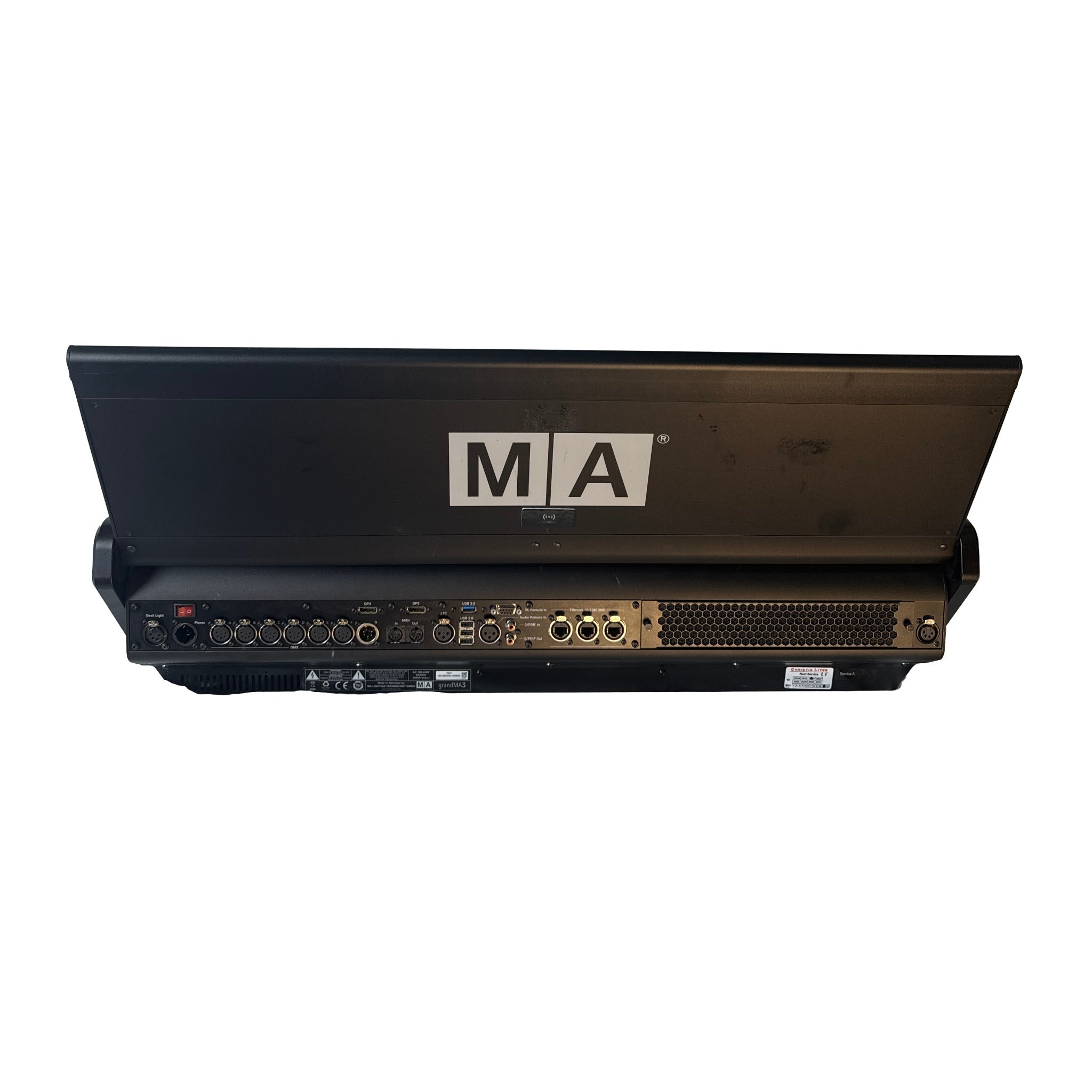

• Ethernet: 3 × etherCON / RJ45
• DMX I/O: 6 × DMX512 A Out (5 pin XLR), 1 × DMX512 A In (5 pin XLR)
• MIDI / SMPTE / Audio: MIDI In/Out, Linear Timecode In, Audio In
• GPI: General Purpose Interface (D SUB DE9) for remote control
• Video Output: DisplayPort 1.2 for external screens (2 ports)
• S/PDIF: In & Out
• USB: 3 × USB 2.0 (Type A), 3 × USB 3.0 (Type A)
• Desk Lights: 2 × LED desk lights (4 pin XLR)
• Power: AC 100–240 V, 50/60 Hz; max 300 VA
• Operating Temp: 0 °C to 40 °C (32 °F to 104 °F)

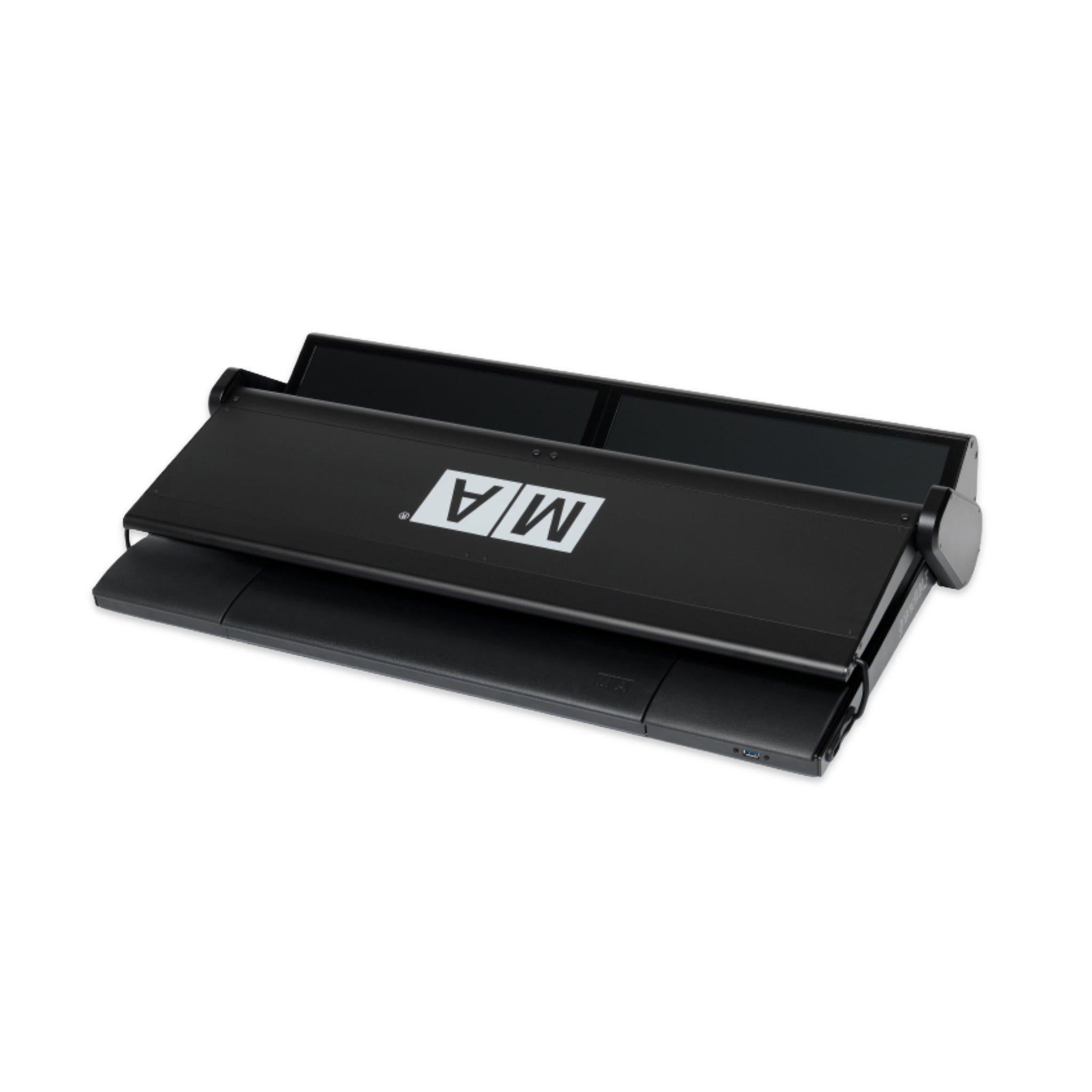

• Dimensions (folded): 854 × 539 × 181 mm (34" × 22" × 8")
• Dimensions (unfolded): up to 854 × 871 × 255 mm (34" × 35" × 10")
• Net Weight: 33 kg / 73 lbs

Perfect for lighting designers, programmers, touring professionals, and production teams needing a versatile console that handles large cue lists, extensive parameter control, and complex show playback. Ideal for concerts, theatre, TV, corporate events, and houses of worship where intuitive control and deep system power are required.
