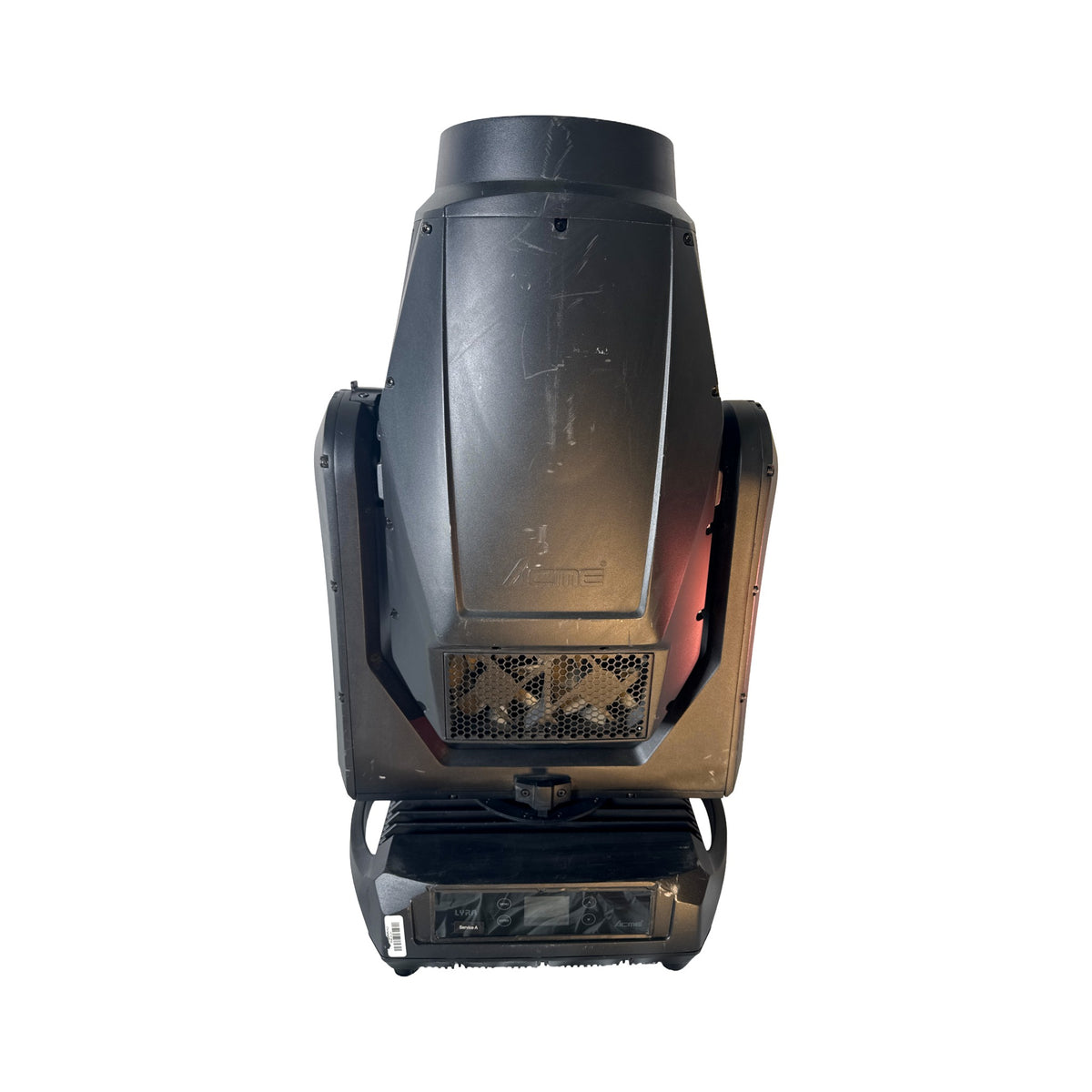

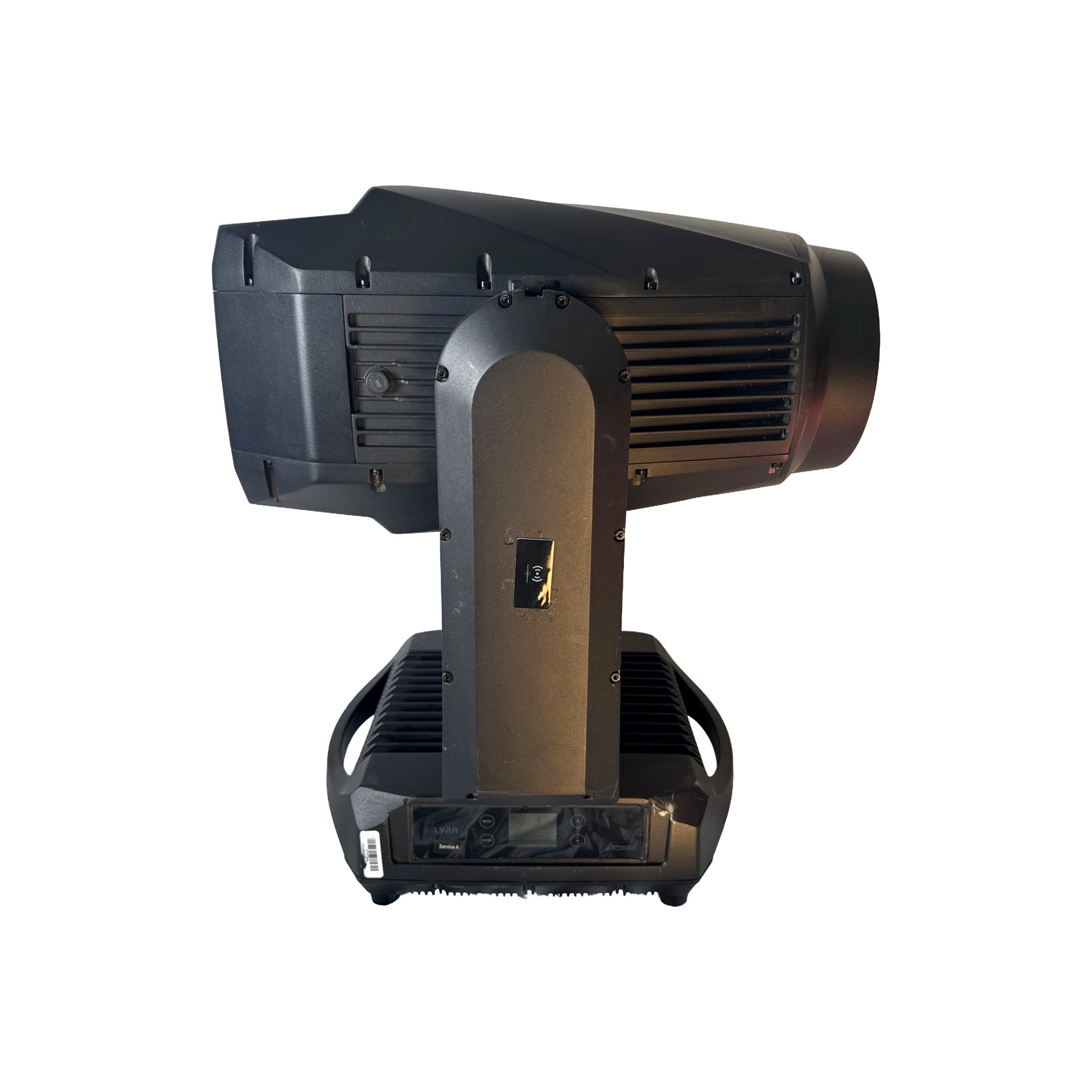

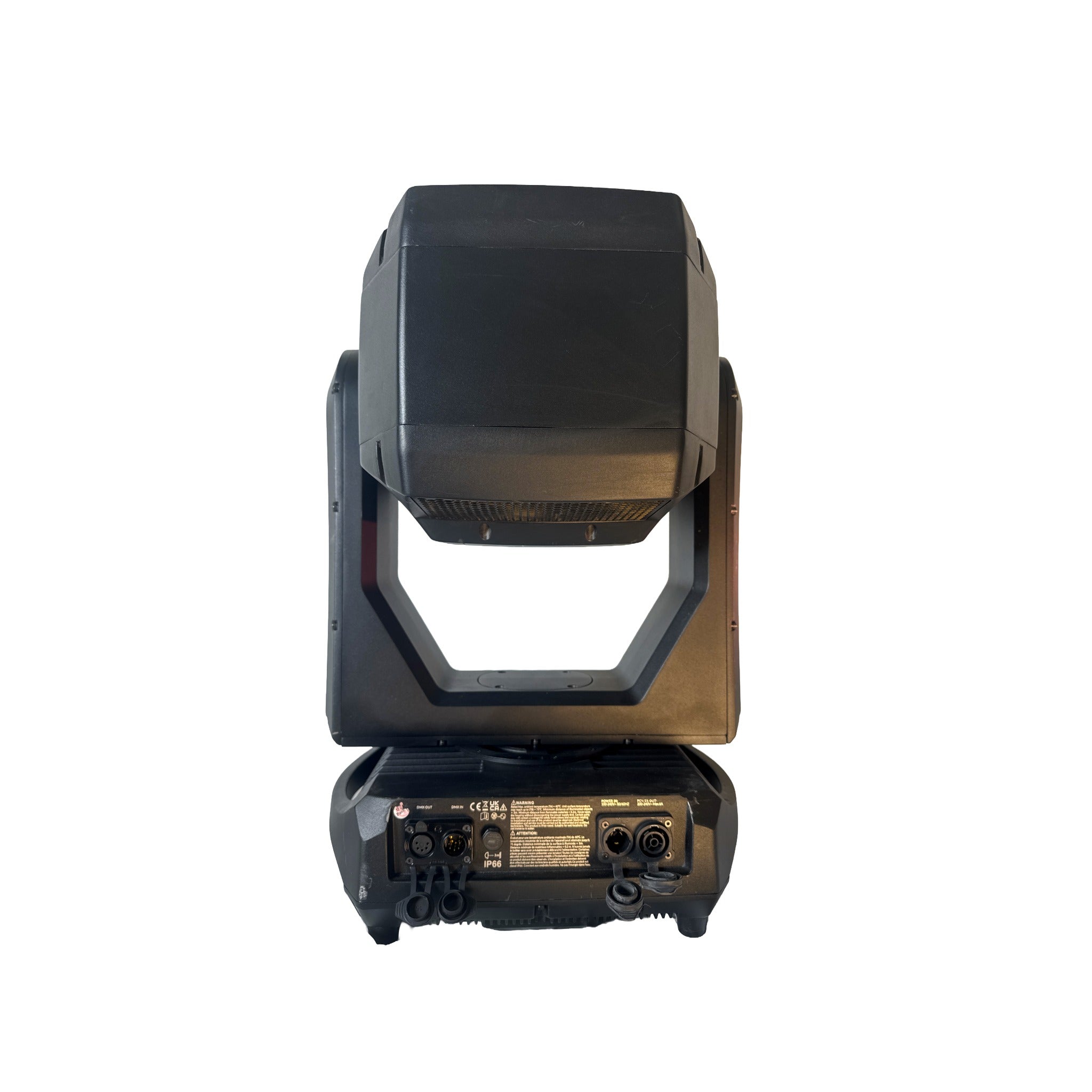

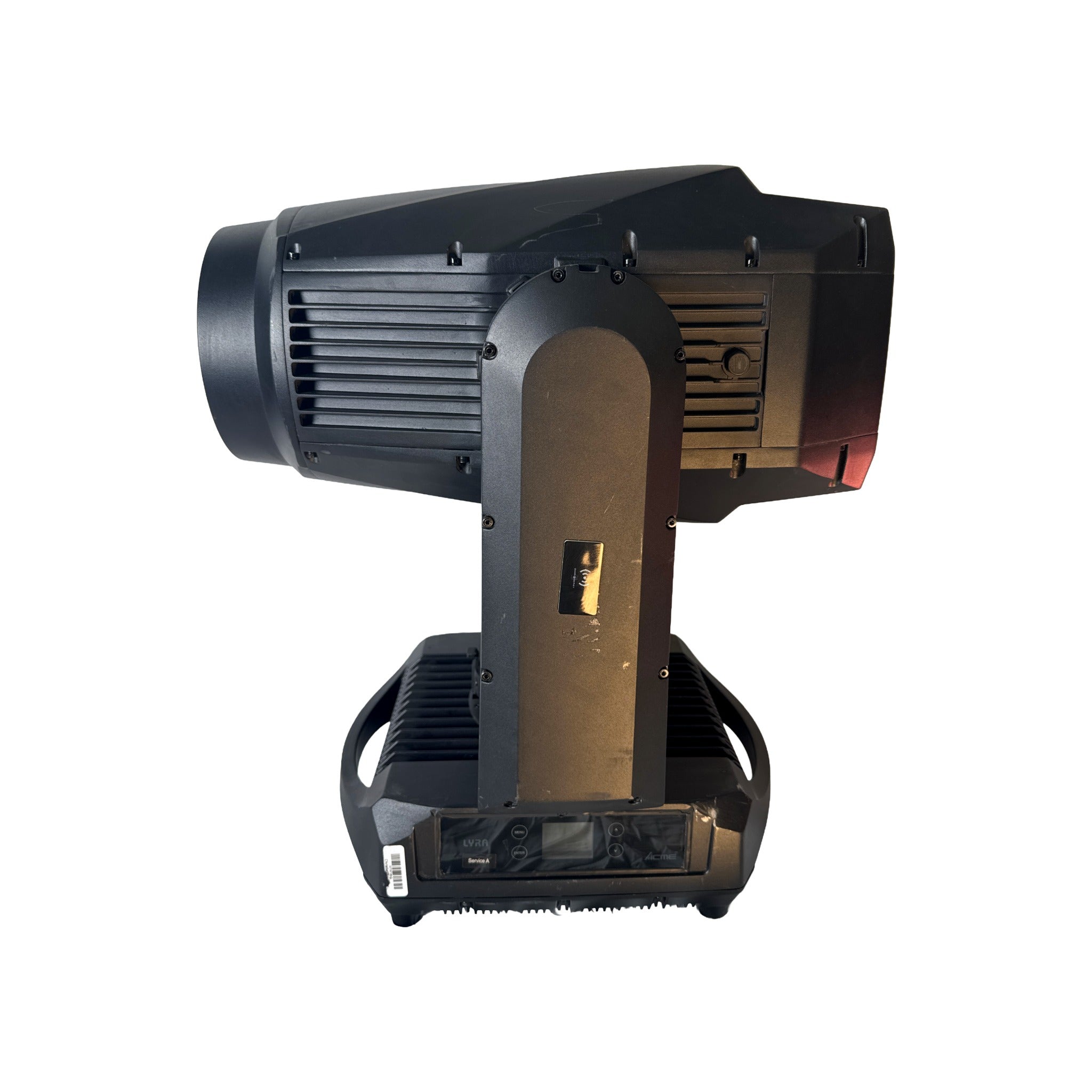

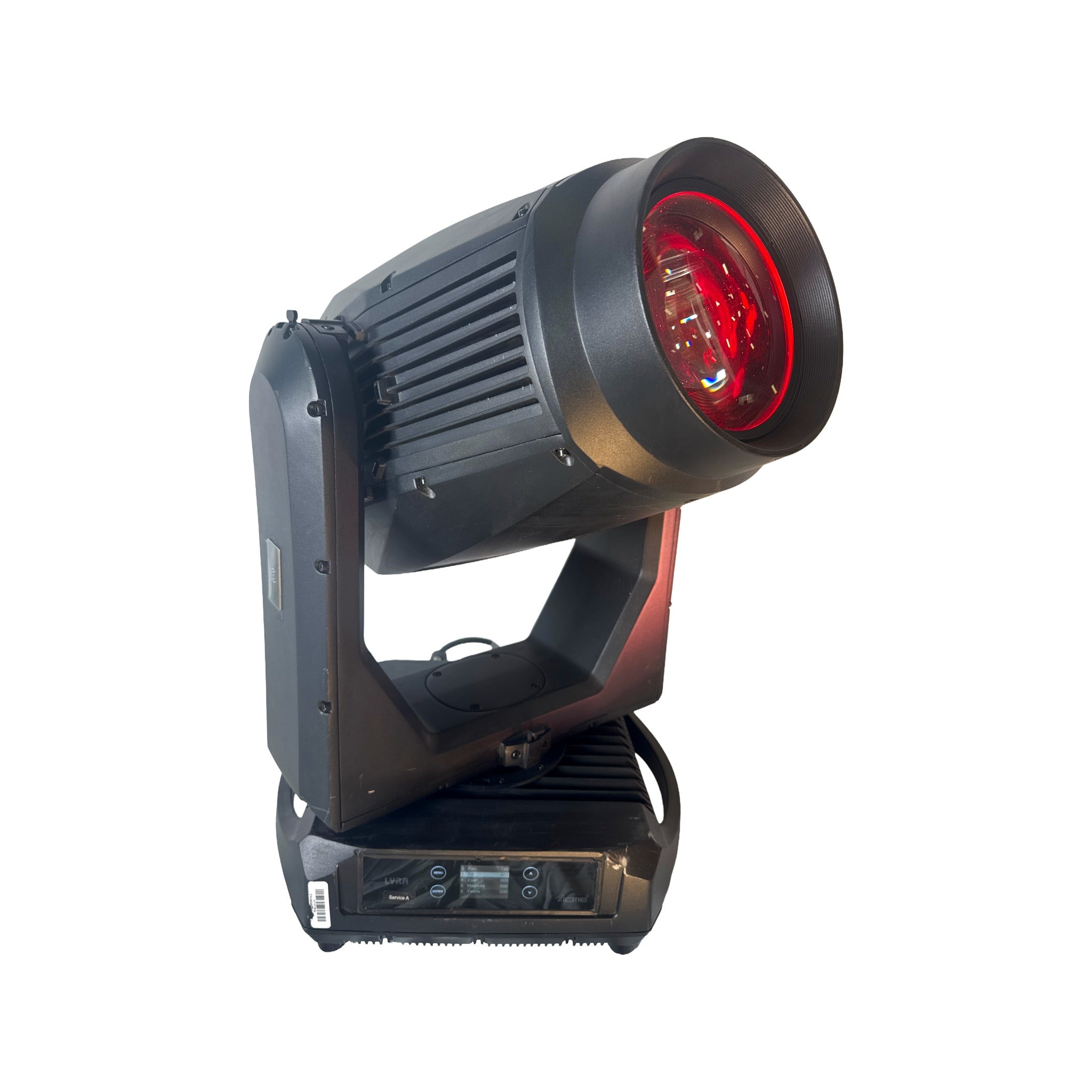

Lyra

The ACME Lyra is a powerful IP66-rated LED spot fixture designed for all-weather performance in demanding environments. Its 1 000W white LED engine delivers exceptional 35 000-lumen output at a native 8 000K, making it ideal for high-impact outdoor shows and indoor productions alike. With precision optics, CMY color mixing, animation wheel, rotating and static gobos, and a full framing system, the Lyra is a feature-rich, touring-ready solution for professional lighting designers.

• High-output 1 000W white LED engine (8 000K native)
• IP66-rated housing for outdoor use
• CMY color mixing system and linear CTO (2 700K-6 500K)
• 1 color wheel with 5 colors, CRI filter, and frost
• 1 rotating gobo wheel (7 gobos) and 1 static gobo wheel (9 gobos)
• Bidirectional animation wheel with water wave and flame effects
• Dual rotating prisms (4-facet circular and 4-facet linear), combinable
• Framing system with 4 shutter blades and ±60° rotation
• Zoom range: 6°-50° with motorized focus and iris
• Frost filters: light and medium, both combinable
• LCD display with 4-button touch control panel
• DMX512 and RDM support, 5 DMX modes (22-40 channels)
• Pan: 540°, Tilt: 260°, with 8/16-bit resolution and auto-correction

• Model Name: LYRA
• Model Code: XA 1000 BSWF IP
• Light Source: 1 000W 8 000K white LED engine
• Color Temperature Output: 6 500K
• LED Life Expectancy: 20 000 hours
• Total Lumen Output: 35 000 lumens (Ra>70), 25 600 lumens (Ra>90)
• Zoom Range: 6°-50°
• Frontal Lens Diameter: 160 mm
• Color System: Linear CMY + linear CTO (2 700K-6 500K)
• Color Wheel: 5 colors + CRI + frost + open
• Static Gobos: 1 wheel, 9 gobos + open (?22.5 mm, image ?17 mm)
• Rotating Gobos: 1 wheel, 7 gobos + open (?22.5 mm, image ?17 mm)
• Animation Wheel: Bidirectional, user-replaceable, water wave/flame effects
• Prisms: 4-facet circular + 4-facet linear, rotatable and overlayable
• Frost: Light and medium, both combinable
• Framing: 4-blade shutter system, ±60° rotation, full blackout
• Dimmer: 0-100% smooth dimming, 4 curves
• Strobe: Variable-speed strobe effect
• Iris: Motorized linear
• Pan: 540° with lock and auto-correction
• Tilt: 260° with lock and auto-correction
• Pan/Tilt Resolution: 8 or 16 bit
• Control Panel: LCD with 4-button touch interface
• Protocols: DMX512, RDM
• DMX Channels: 22/30/31/39/40
• Firmware: Upgrade via DMX link
• Power Input: 100-240 V AC, 50/60 Hz
• Power Consumption: 1 190 W
• Power Connections: Waterproof power in/out
• Data Connections: 3-pin or 5-pin waterproof XLR in/out
• Dimensions (WxDxH): 412 x 330 x 719 mm (16.2" x 13.0" x 28.3")
• Weight: 42 kg (92.6 lbs)
• Max Ambient Temp: 40°C
• Min Operating Temp: -10°C
• Max Surface Temp: 75°C
• IP Rating: IP66
• Certifications: CE, UKCA, cETLus compliant

The Lyra is a go-to fixture for lighting designers working in outdoor concerts, theatrical productions, festivals, and large-scale themed events. Its IP66 build and robust feature set make it perfect for touring professionals needing flexibility, performance, and durability in any environment.
