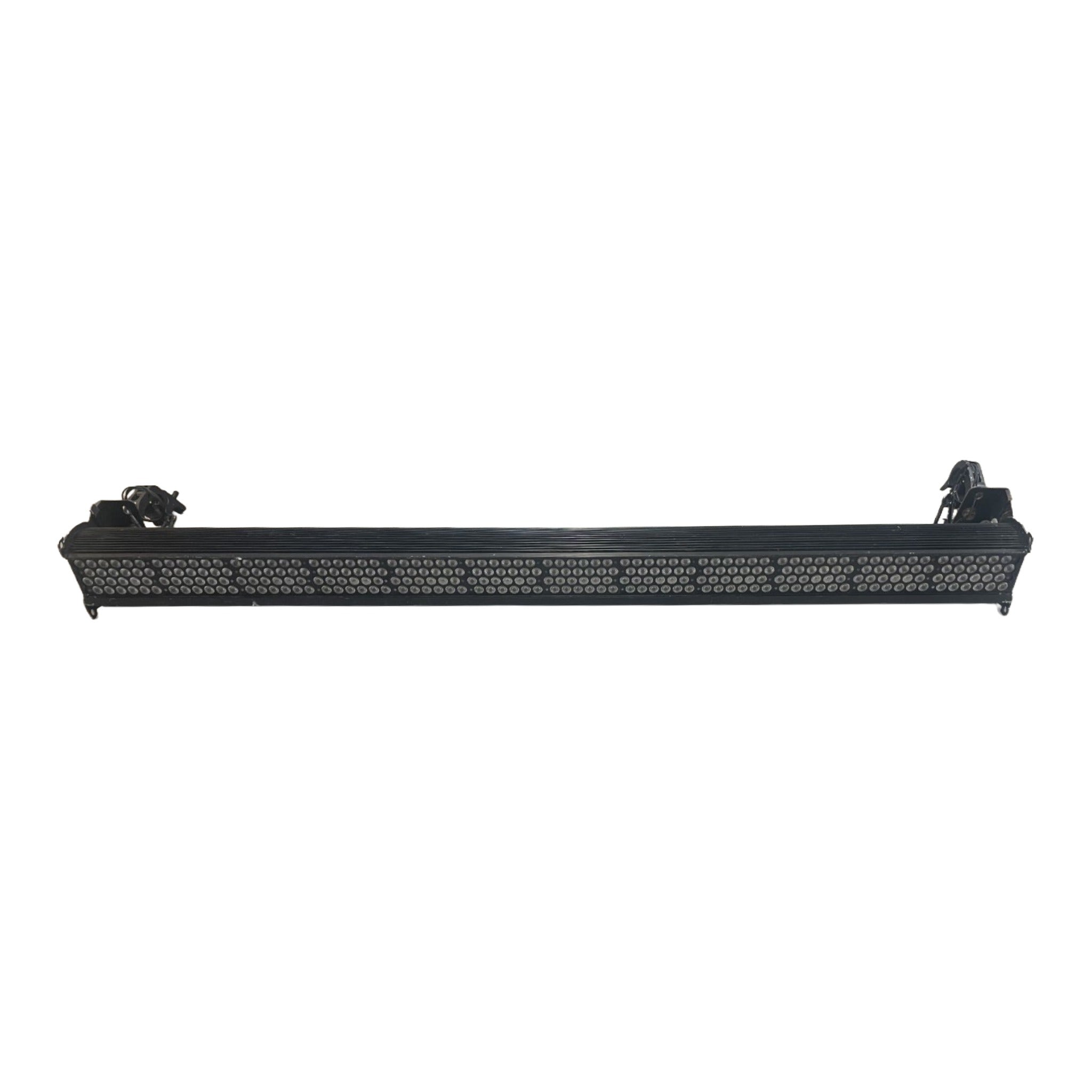

Color Force 72 RGBA

The Chroma-Q Color Force 72 RGBA is a high-output LED batten designed for professional cyc, wash, and effects lighting. Its RGBA LED engine delivers strong saturated colors, subtle palette tones, and theatrical-grade dimming, making it a versatile solution for stage, touring, broadcast, corporate, and installation environments.

• Super bright RGBA LED batten for cyc, border, and wash applications
• Washes up to 8m / 26 ft with smooth, uniform color blending
• High CRI of 92 for strong color balance across the spectrum
• Theatrical-grade dimming with intuitive color control
• Separate RGBA control every 150mm / 6" for creative effects
• Built-in effects engine for dynamic cyclorama and scenic looks
• Stand-alone master and slave modes for flexible operation

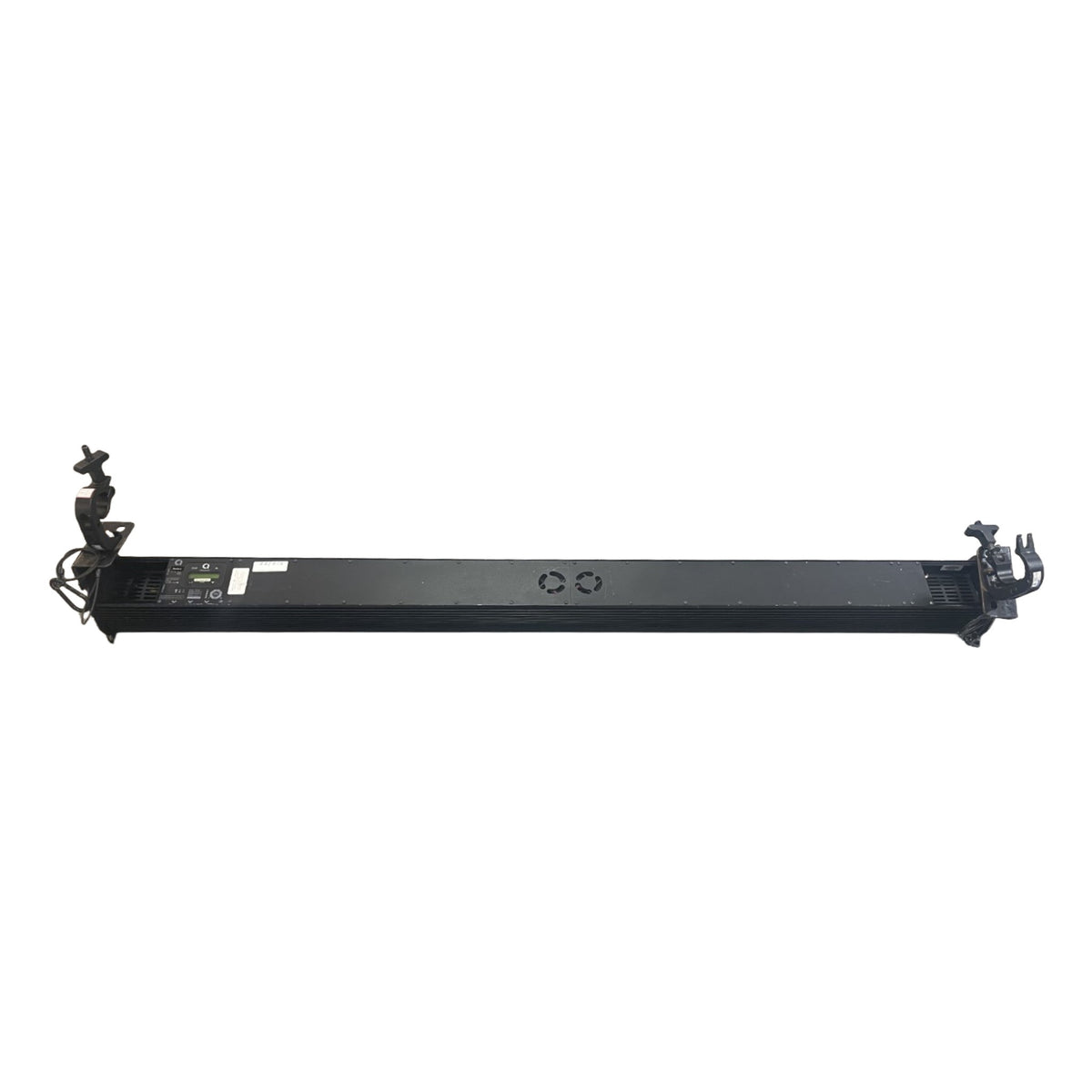

• Rugged anodised aluminium extrusion with built-in quick release tilt adjustment

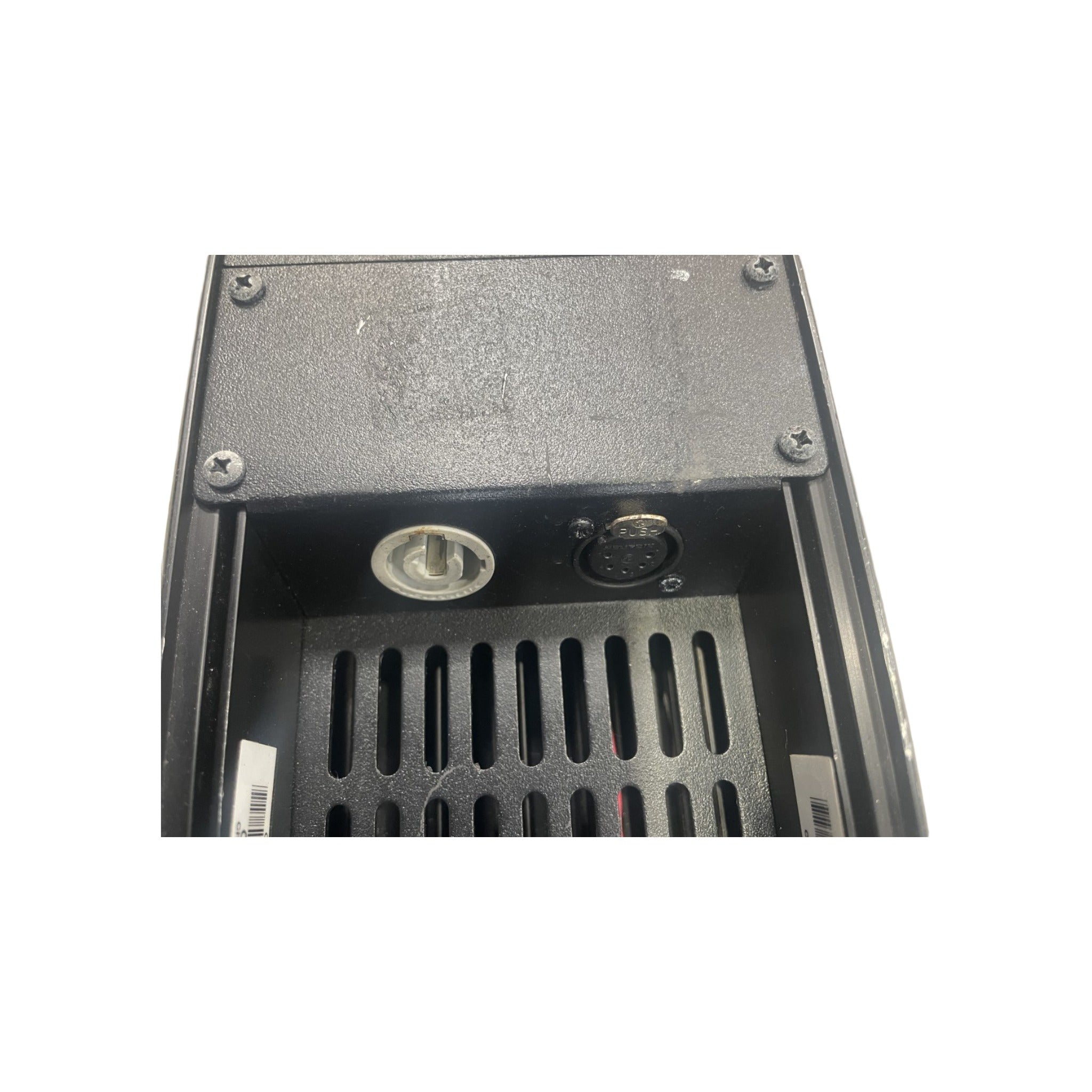

• Mains power and DMX input at one end and output at the other for clean cable management

• Product Type: RGBA LED batten
• Product Code: CHCF72NFRGBA
• LEDs: 12 LED engines, 24 (6 x RGBA) LEDs, 288 total LEDs
• Control Protocol: ANSI E1.11 USITT DMX 512-A
• Control Modes: 43 channels Fx HSI; 36 channels HSI; 36 channels RGB (*Magic Amber); 48 channels RGBA; 49 channels sRGBI (*Magic Amber); 9 channels Fx HSI; 3 channels HSI; 3 channels RGB; 4 channels RGBA; 5 channels sRGBI (*Magic Amber); 1 channel DMX Look Select
• Dimming Curve: Theatrical
• Variable Effects Engine: Yes
• Lumen Output: White 8,000 / 12,000 hot lumens (prelim.)
• Optics: Specialised close focus lens
• Beam Angle: 23° (approx.)
• Beam Distribution: Asymmetrical direct illumination
• CCT: Adjustable 1,000 - 10,000K
• CRI: 92
• Lamp Life: L70 at 50,000 hours
• Power Input Rating: 100-240V AC, 50-60 Hz, 700VA
• Cooling System: Forced - 2x fans
• Construction: Anodised aluminium extrusion
• IP Rating: IP20
• Net Dimensions: 1,759mm x 182mm x 177mm / 69.25" x 7.25" x 7"
• Net Weight: 22kgs / 48lbs

Ideal for cyclorama lighting, stage washes, concert touring, corporate events, exhibitions, television studios, theaters, and scenic lighting designs that need powerful RGBA color, smooth blending, and flexible control.
