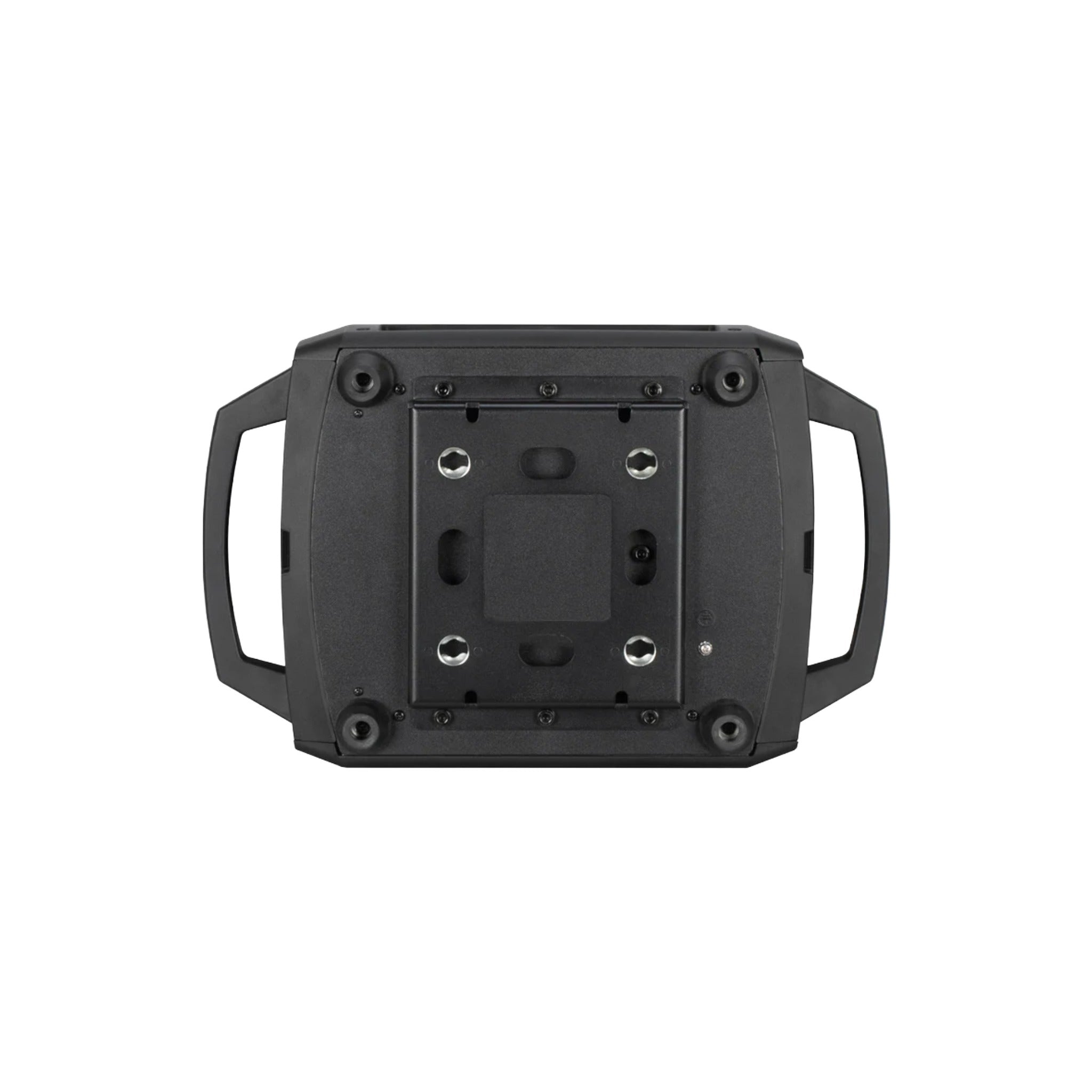

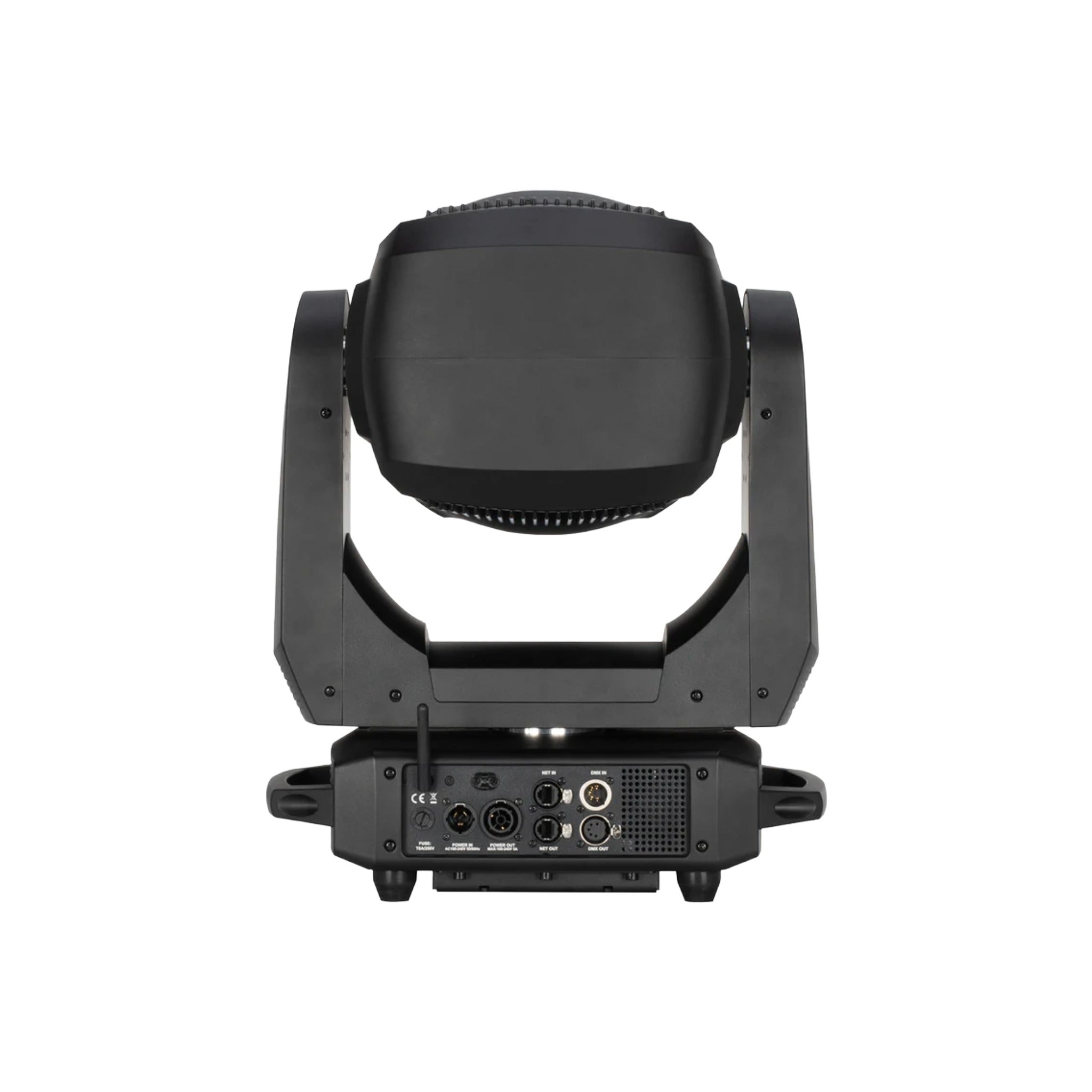

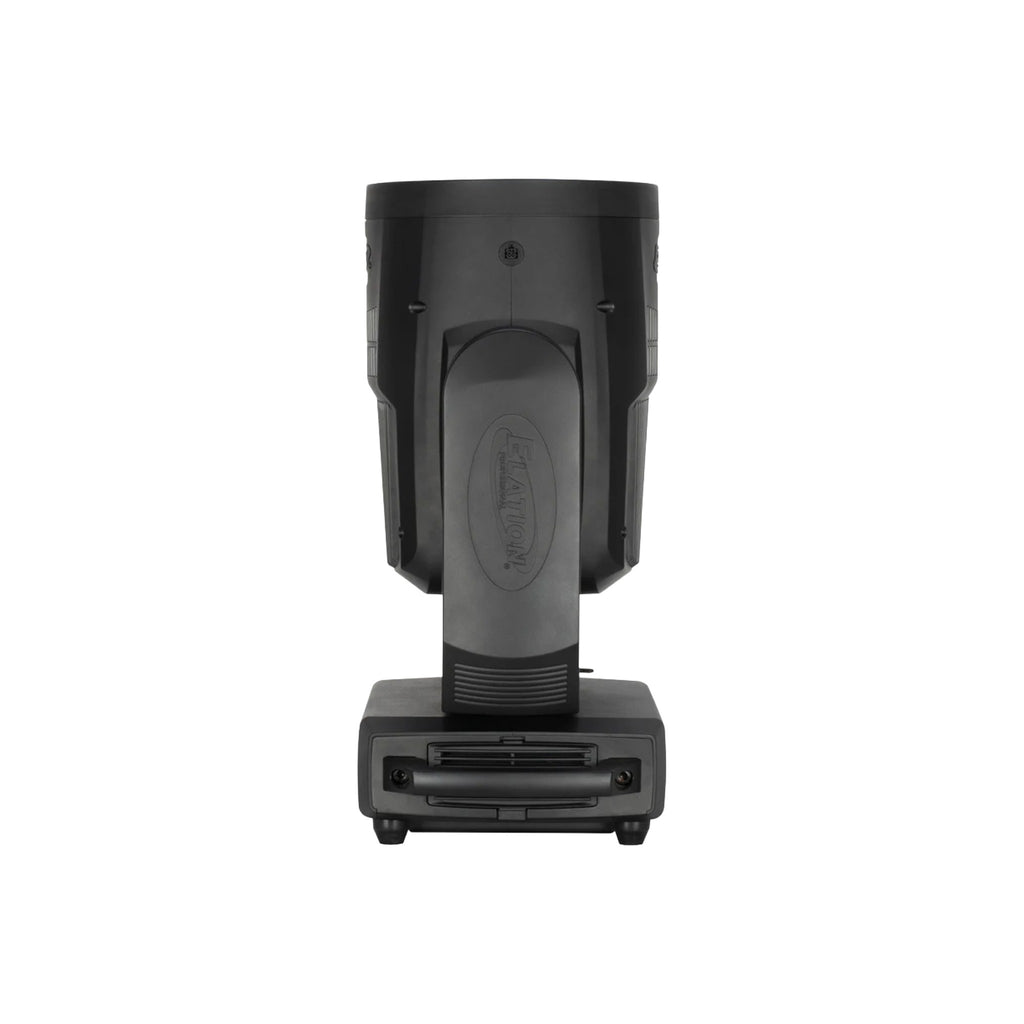

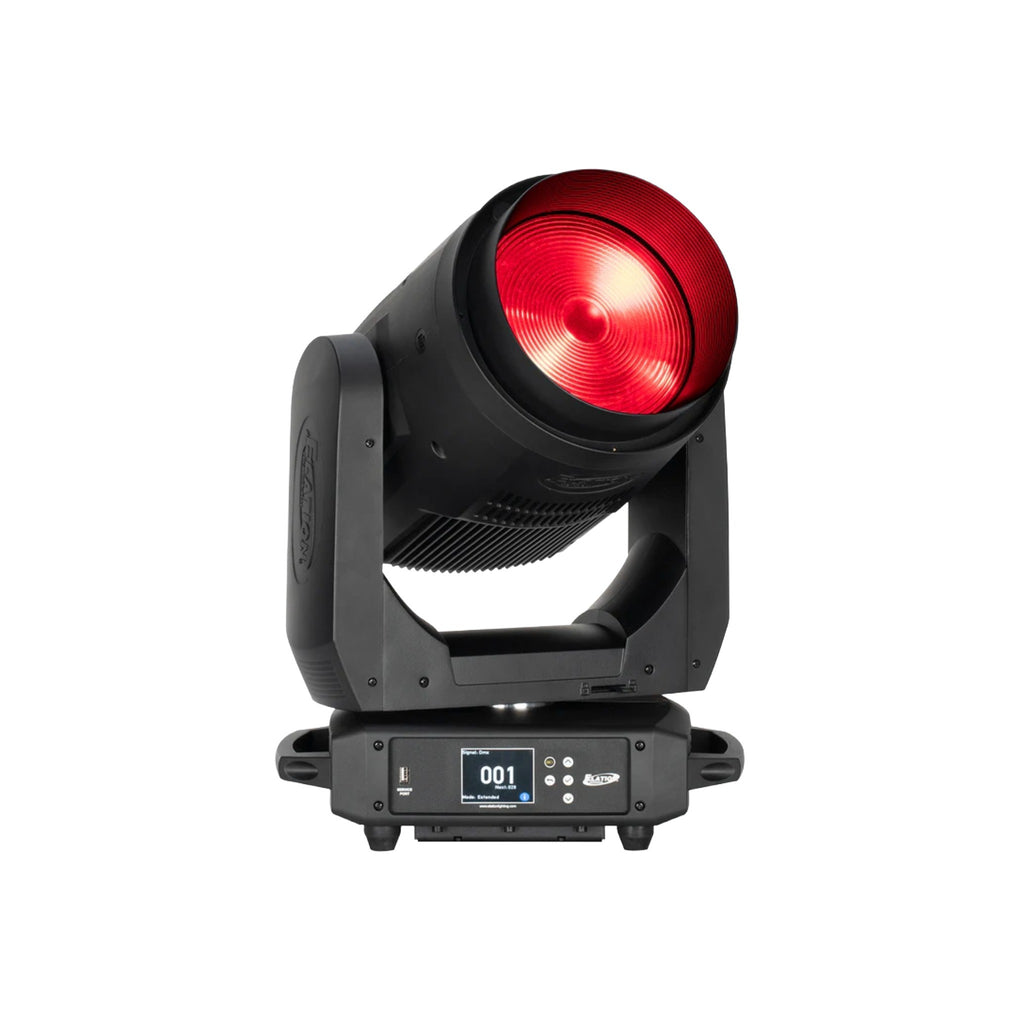

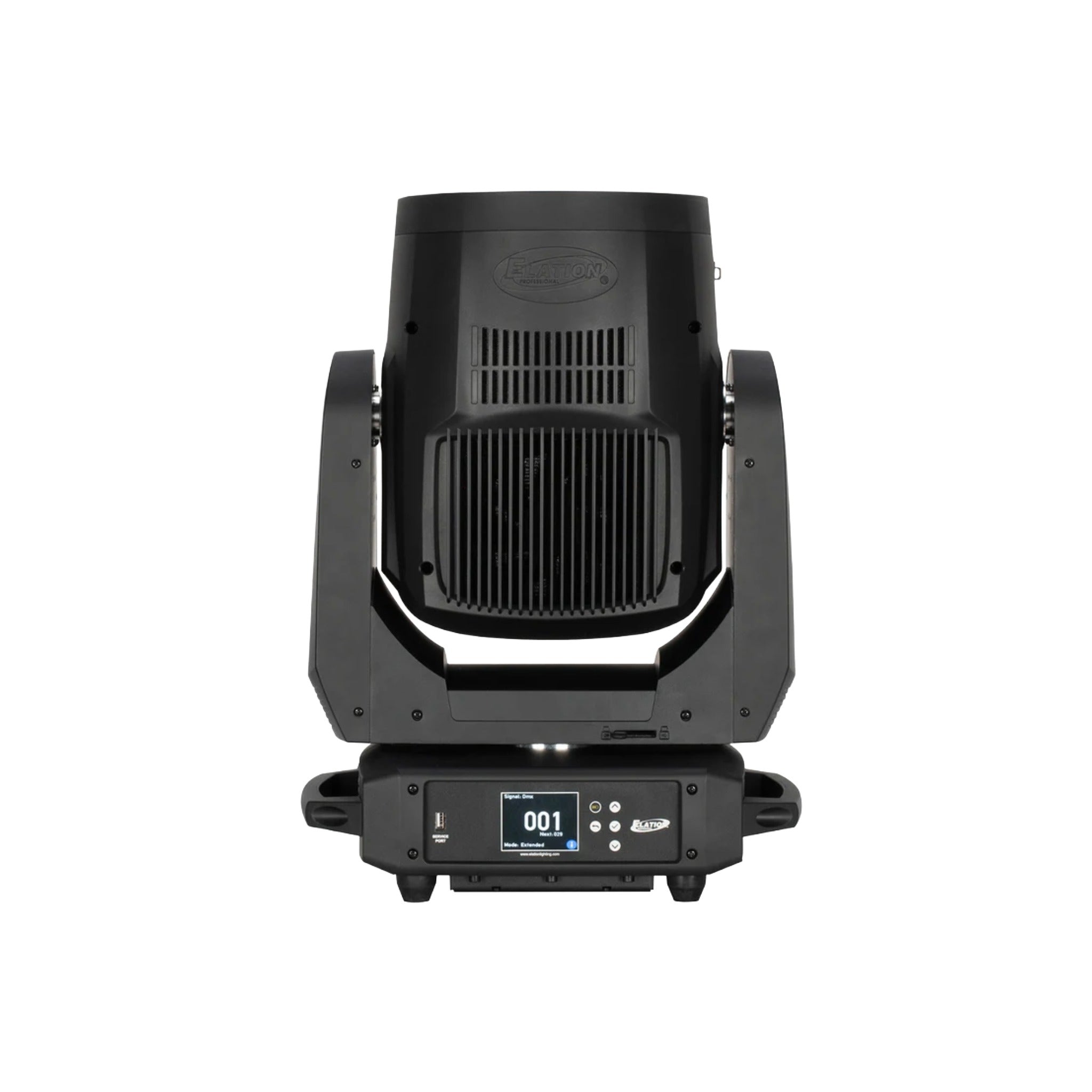

Fuze Wash 500

The FUZE WASH 500 is a powerful automated LED Fresnel wash fixture built for theater, TV, and event lighting. Its RGBMA engine produces high-fidelity output with excellent color rendering (CRI up to 92), supported by a wide zoom range (6° to 53°). Designed for precision and control, it offers color correction, CMY/RGB emulation, and remote beam shaping via optional motorized barn doors and an indexable ovalizer lens. Its robust feature set makes it ideal for professional venues requiring quiet operation and superior output quality.

• 500W RGBMA LED engine with up to 17,000 lumens @ 6500K
• CRI up to 92 for natural color fidelity
• Zoom range from 6° to 53° for flexible coverage
• Optional motorized barn doors and ovalizer lens for beam shaping
• CMY and RGB color emulation with virtual CCT (2400K–8500K)
• Green/magenta shift and virtual gel swatch book
• Variable 16-bit dimming curves and high-speed strobe
• DMX, RDM, and Art-Net/sACN support with multiple channel modes

• LED Engine: 500W RGBMA, 6,500K, 30,000-hour lifespan
• Output: Up to 17,000 lumens
• Zoom Range: 6°–53°
• Beam Angle: 6.3°–53.7°
• Field Angle: 12.1°–63.6°
• Control: 16-bit pan/tilt/dimming, 6 DMX channel modes
• Display: Full-color reversible LCD, 4-button panel
• Connections: 5-pin XLR, IP65 locking power in/out, USB
• Power: 100–240V AC, Max 609W
• Operating Temp: -10°C to 45°C (14°F to 113°F)
• Dimensions (W x H x D): 16.1" × 21.7" × 13.8" (without snoot)
• Weight: 40.89 lbs (18.5 kg)
• Certifications: CE, cETLus, FCC
• IP Rating: IP20 (indoor use)

Perfect for theatrical stages, studio setups, and live productions needing a bright, color-accurate Fresnel wash with flexible beam control. The FUZE WASH 500’s quiet operation and full feature set make it ideal for precision lighting in demanding environments.
