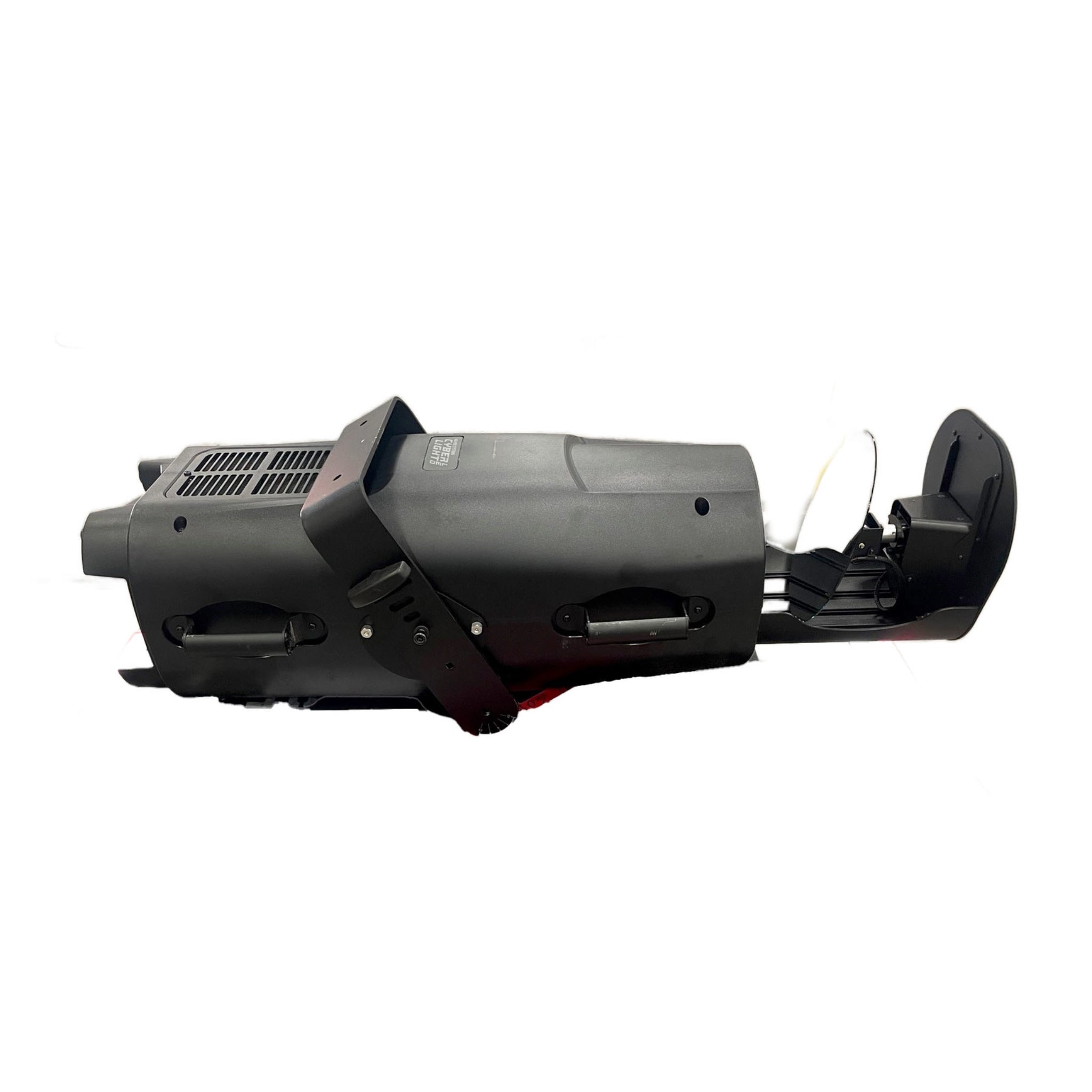

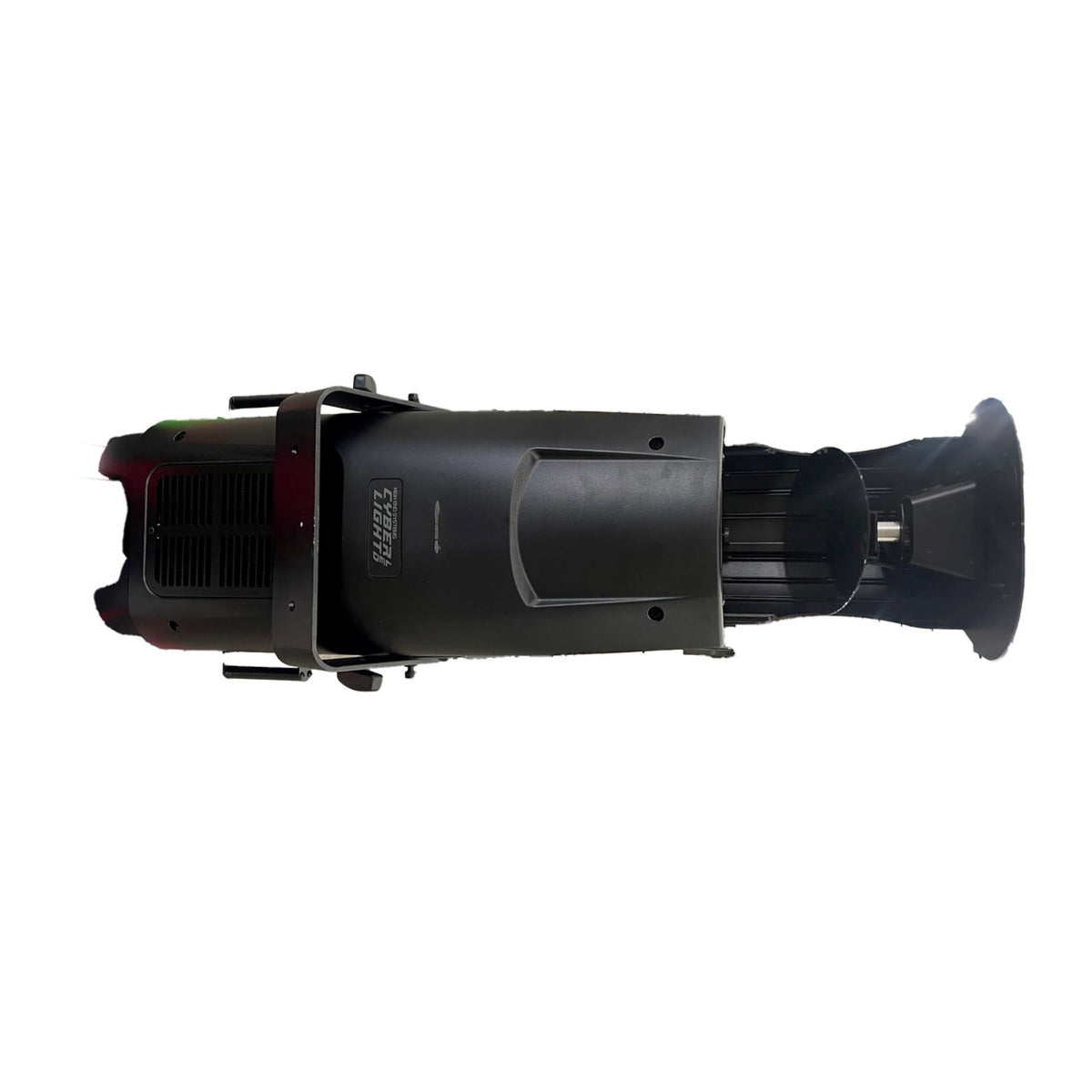

Cyberlight LED

The High End Systems Cyberlight LED is a direct LED replacement for legacy Cyberlight fixtures, offering 12,750 field lumens from a 470 W white LED engine (>90 CRI, ~6 k K) with 50,000 h life. Its break-resistant mirror and Whisper Home encoding enable lightning-fast, precise pan/tilt in tight installs and dynamic environments.

• 470 W white LED engine, > 90 CRI, ? 50,000 h life
• 12,750 field lumens output
• Dual-lens zoom 10°-28.5° with 8-lens deep-focus optics
• Break-resistant mirror with high-speed pan/tilt and Whisper Home encoding
• CMY + linear CTO mixing; 7-position dichroic color wheel + open
• 16-blade iris; light & heavy diffusion filters
• Two 7-gobo rotating wheels; 4-facet rotating prism
• DMX-512, Art-Net, sACN; 5-pin & 3-pin XLR connectors
• Auto-ranging 100-240 VAC; 1100 VA draw
• Whisper-quiet, temp-controlled airflow with overheat protection

• Light Source: 470 W white LED engine; > 90 CRI; ~6,000 K; ? 50,000 h
• Output: 12,750 field lumens
• Zoom: 10°-28.5° motorized; dual moving lenses; 8-lens system
• Optics: Deep-focus 8-lens design
• Mirror & Motion: Break-resistant mirror; high-speed pan/tilt; Whisper Home encoding
• Color Mixing: CMY + CTO; 7-position dichroic color wheel + open
• Iris: 16-blade, smooth 0-100%
• Diffusion: Light & heavy filters
• Gobos: Two wheels × 7 glass gobos
• Prism: Rotating 4-facet prism

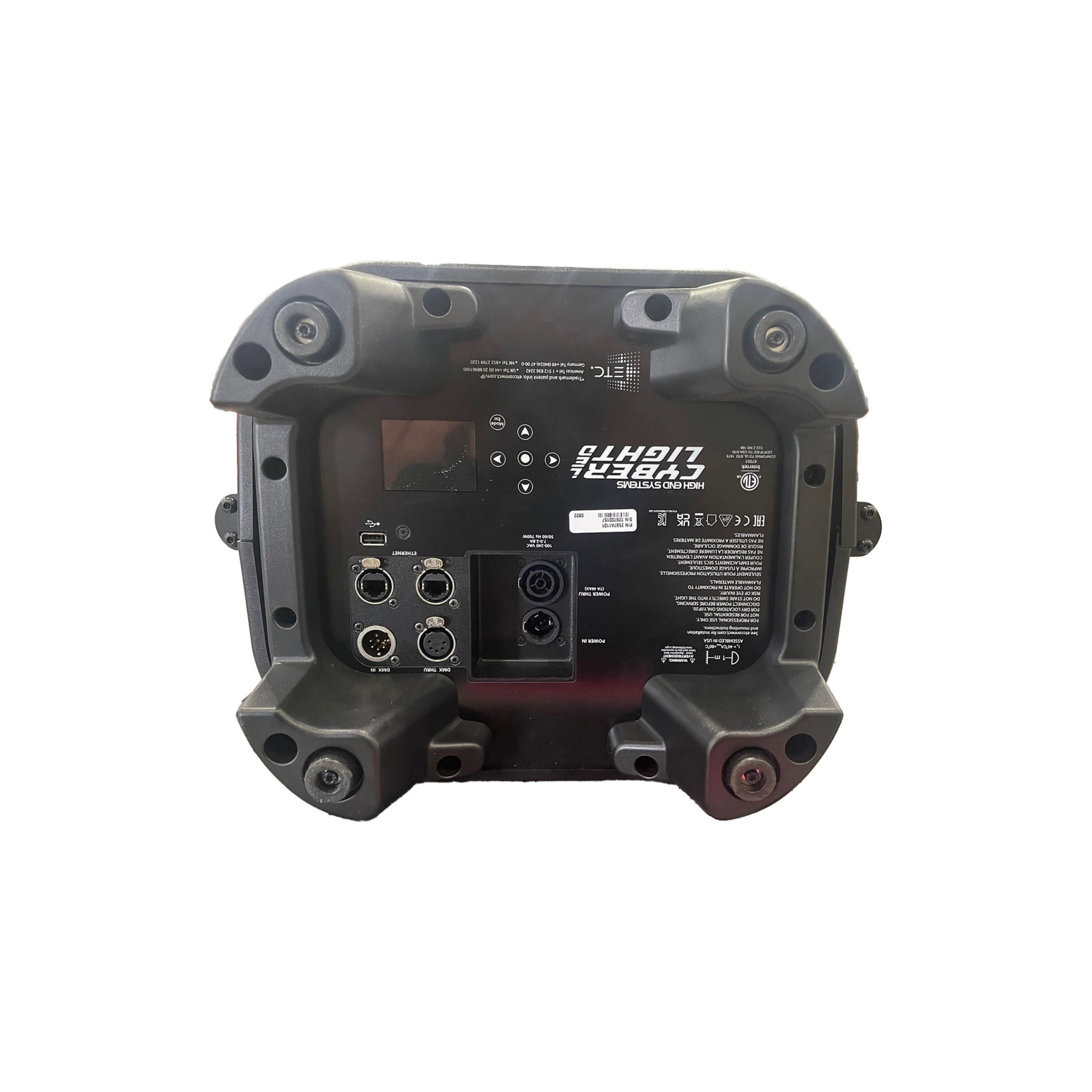

• Control: DMX-512, Art-Net, sACN; 5-pin & 3-pin XLR
• Power: 100-240 VAC; 1100 VA typical
• Ventilation: Temp-controlled, whisper-quiet; over-temperature shutoff

Ideal for themed attractions, broadcast studios, theatrical productions, and immersive environments, offering reliable high-CRI white light and dynamic beam effects in existing Cyberlight mounts.
