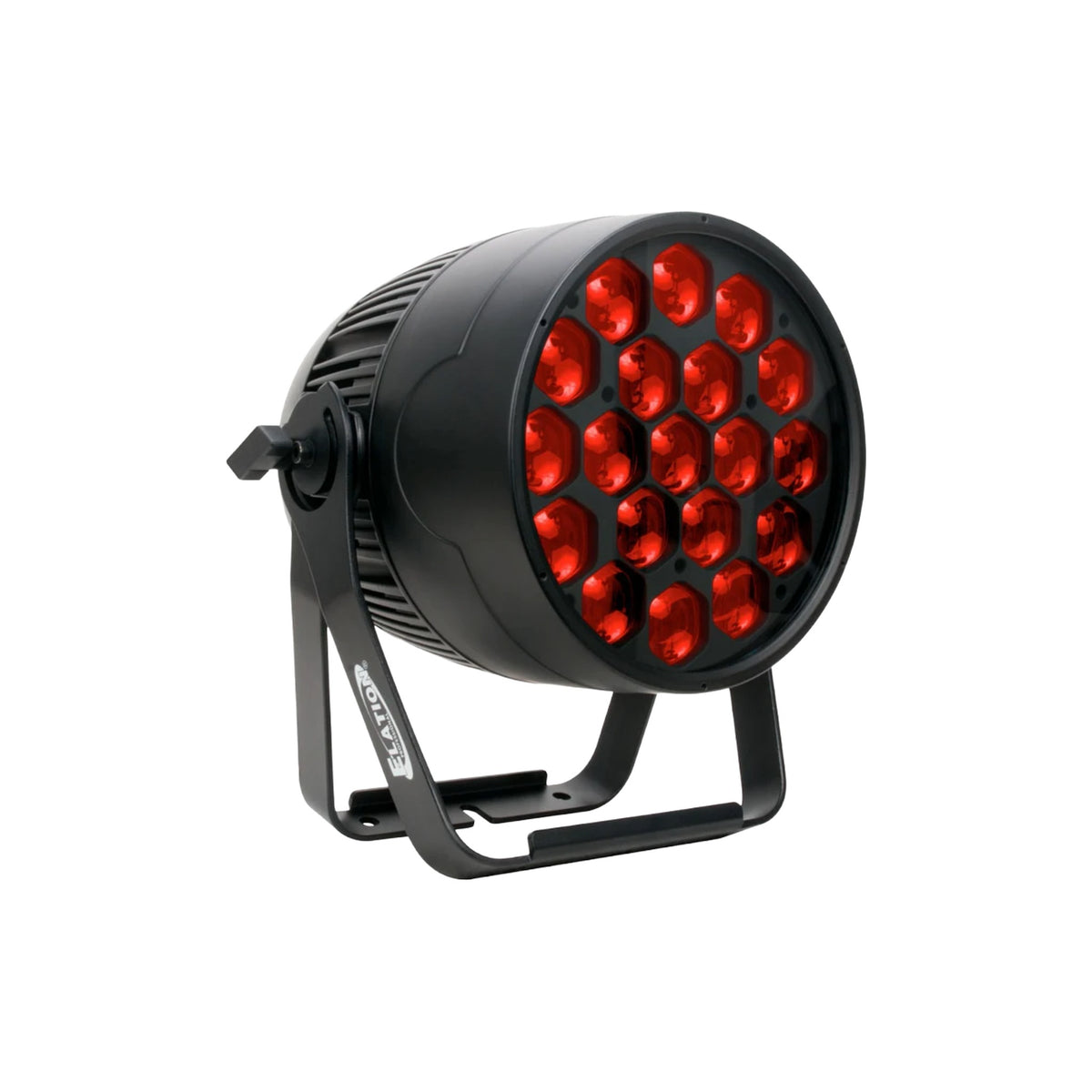

SIXPAR Z19 IP RGBAWUV Silver

The Elation SIXPAR Z19 IP (Silver) is a weather-rated 6-in-1 LED par fixture built for outdoor performance and versatile color mixing. Equipped with (19) 15W RGBAW+UV LEDs and motorized zoom from 5° to 45°, it offers powerful output, UV effects, and smooth dimming in a rugged silver-finished housing. With IP65 protection, RDM control, and flicker-free operation, it's ideal for demanding applications in live production, film, and architectural lighting.

• 19 x 15W RGBAW+UV LEDs for full-spectrum color and UV effects
• Motorized zoom from 5° to 45° for narrow beams to wide washes
• 395nm UV wavelength for blacklight-style effects
• IP65-rated for reliable outdoor and indoor use
• RDM-compatible for remote configuration
• Flicker-free operation suitable for film and broadcast
• Touch panel interface with 180° reversible LCD
• DMX and power pass-through for multi-unit linking
• Silver die-cast aluminum housing for discreet architectural placement

• LED Source: (19) 15W 6-in-1 RGBAW+UV LEDs
• LED Life: 100,000 hours (average)
• Zoom Range: 5° to 45° motorized
• UV Wavelength: 395nm
• Photometric (5° Full ON): 13,240 LUX @3m
• Photometric (45° Full ON): 831 LUX @3m
• DMX Channels: 4 modes (14 total channels)
• Control Panel: 4-button touch with reversible LCD
• Dimming: 16-bit with variable dimming curves
• Strobe: Electronic
• Connections: IP-rated 5-pin DMX, IP65 locking power in/out
• Voltage: 110–240V AC, 50/60Hz
• Max Power Consumption: 288W
• Operating Temperature: -15°C to 45°C (5°F to 113°F)
• Housing: Die-cast aluminum, silver finish
• Dimensions (L x W x H): 15.9" x 12.0" x 15.6" (363 x 305 x 396 mm)
• Weight: 27 lbs (12.2 kg)
• Certifications: CE, cETLus
• IP Rating: IP65

Ideal for lighting designers, production crews, and AV professionals needing powerful color mixing and rugged weatherproof reliability. Perfect for stage lighting, architectural uplighting, film and broadcast effects, and scenic outdoor applications.
