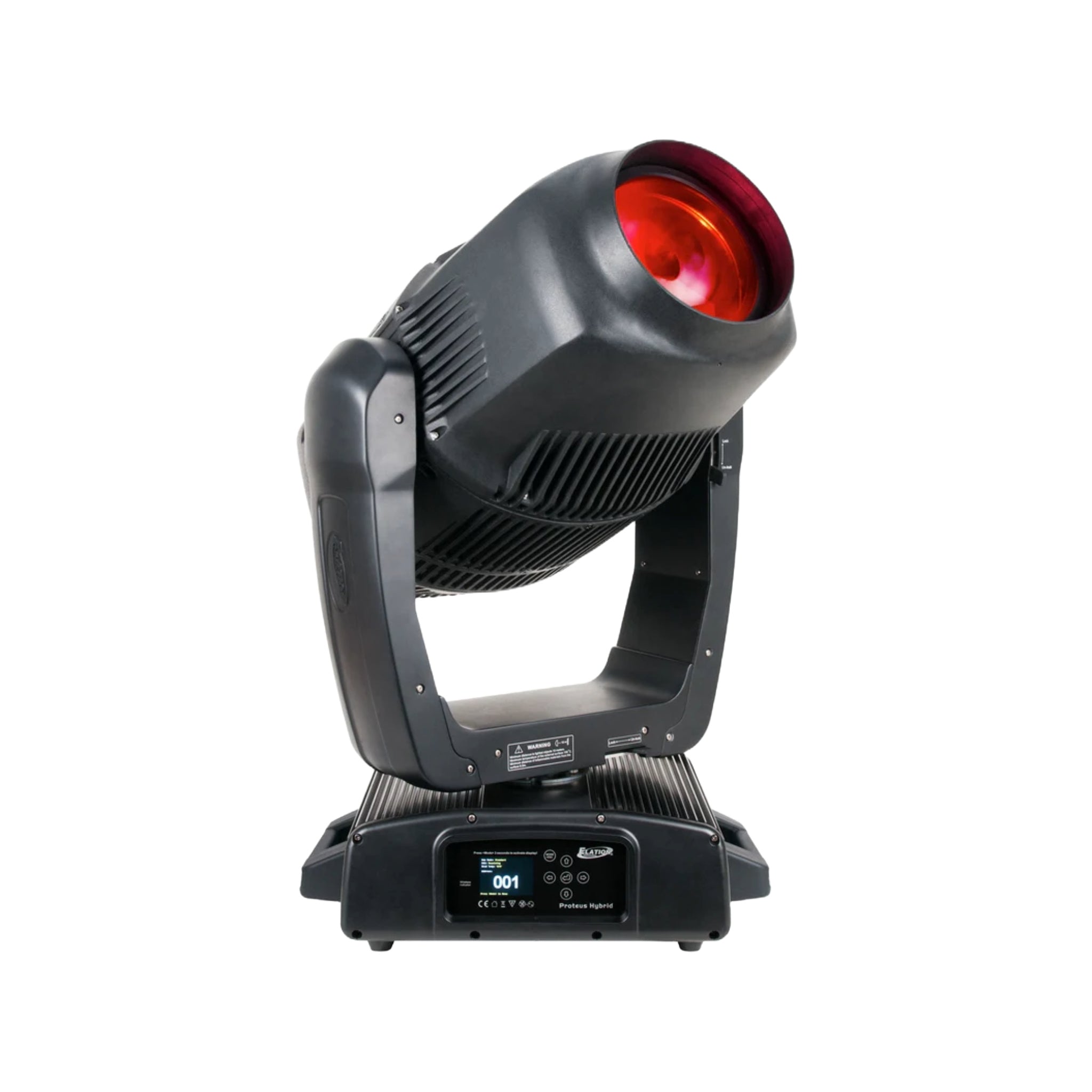

PROTEUS Hybrid IP65 Elation Moving Light

The Elation PROTEUS HYBRID is an IP65-rated 3-in-1 beam/spot/wash luminaire powered by a 470W Philips™ MSD Platinum 21R lamp. Its motorized zoom (2°–38° beam, 38° spot, 40° wash), CMY/CTO mixing, rotating/stamped gobos, animation wheel, prisms, and frost deliver versatile high-output effects of up to 14 000 lm in any weather.

• 470W Philips™ MSD Platinum 21R lamp; up to 14 000 lm output
• 3-in-1 motorized zoom: 2° beam, 38° spot, 40° wash
• Full CMY color mixing + linear CTO; 14 dichroic filters incl. CTB, CTO, UV
• 8 rotating glass & 14 static metal gobos; auto & manual focus
• 360° bi-directional animation wheel; 8-facet & linear prisms; frost
• High-speed mechanical shutter & strobe; selectable dim curves
• Continuous pan 540°/630° & tilt 265°; 8/16-bit movement precision
• Built-in E-FLY™ wireless DMX; DMX, RDM, Art-Net & sACN support
• IP65 powerCON, XLR5 & RJ45 EtherCON in/out; battery-powered menu
• 6-button, full-color reversible LCD panel; multi-voltage PSU

• Light Source: Philips MSD 21R 470W, 8 000 K, CRI 80
• Photometrics: >14 000 lm; 233 000 lux @ 15 m beam; 13 375 lux spot
• Zoom Ranges: Beam 2.1°–21.5°; Spot 2.8°–28.6°; Wash 4°–31.2°
• Movement: Pan 360°/540°/630°; Tilt 265°/360°; continuous
• Control: DMX512-A, RDM, Art-Net, sACN; 24/26/37 channels
• Connections: IP65 powerCON, XLR5 DMX, RJ45 EtherCON
• Power: 100–240 VAC; 700 W max; active PFC
• Dimensions: 465×571×805 mm; Weight: 38 kg
• Thermal: –20 °C to 45 °C; BTU 2391
• Certifications: CE, cETLus, UKCA; IP65

Designed for outdoor concerts, themed environments, and architectural lighting, the PROTEUS HYBRID combines beam, spot, and wash in a single IP65 fixture—perfect for dynamic lighting in harsh conditions.
