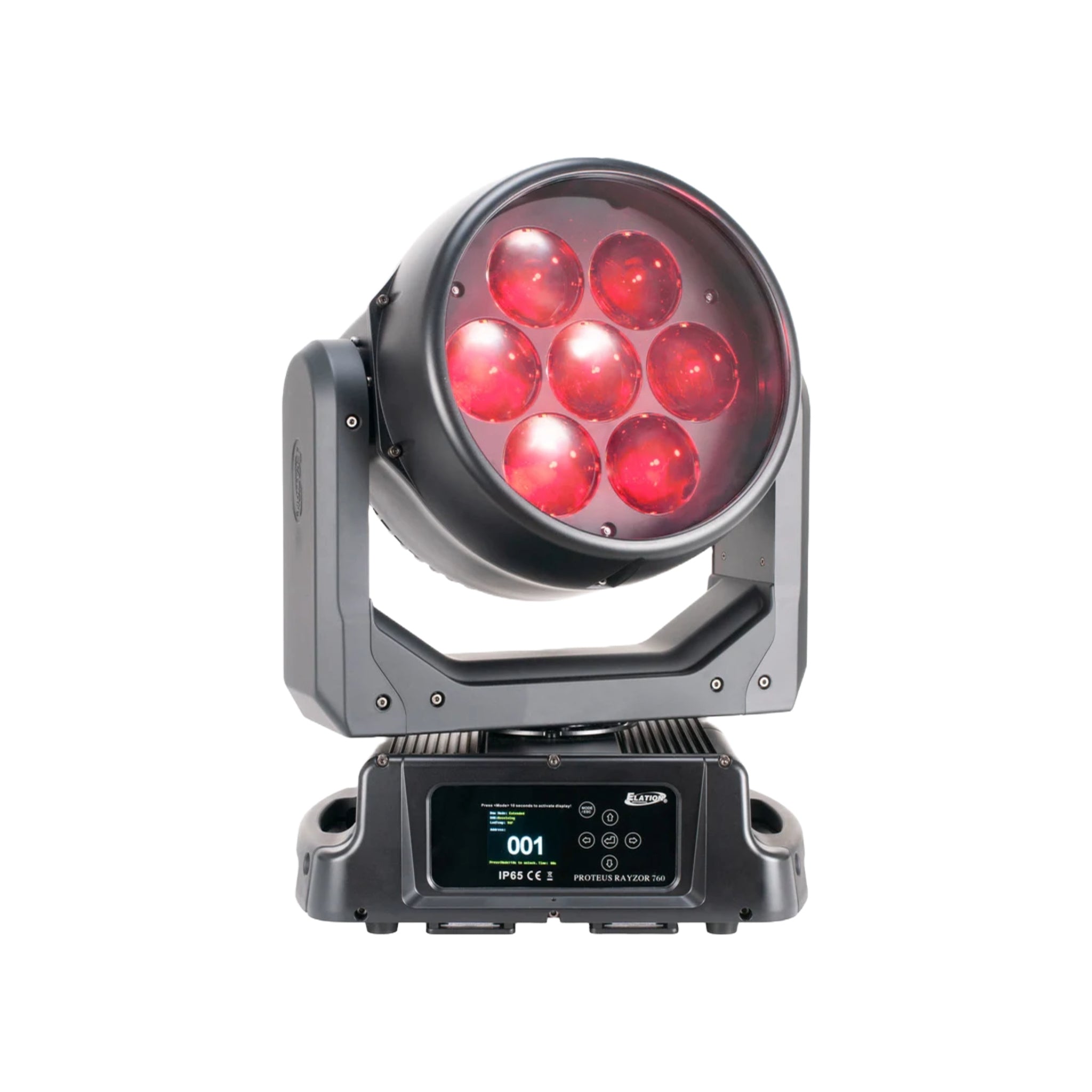

PROTEUS Rayzor 760 IP65 Elation Moving Light

The Elation PROTEUS RAYZOR 760 is a compact IP65-rated wash-effects fixture with 7×60W RGBW LEDs and 28 SparkLED™ pixels inside oversized lenses. Its 5°–77° zoom and continuous 360° pan/tilt deliver 7 200 lm of intense beams and sweeping washes, plus layered SparkLED accents for standout outdoor performance.

• 7×60W Osram RGBW LEDs with full pixel control
• 28×2W SparkLED™ lens pixels for creative spark effects
• Zoom range 5°–77° (beam 5.4°–56.4°; field 8.1°–74°)
• Continuous 360° pan/tilt; 540°/630° pan & 270°/360° tilt options
• 7 200 lm output; CRI 80; linear CCT presets 2700–8000 K
• Electronic strobe, 16-bit dimming & variable curves
• IP65-rated powerCON, XLR5 DMX & RJ45 EtherCON connections
• 3 DMX modes: 25/52/80 channels; adjustable LED refresh 900–25 000 Hz
• Compact rugged housing; foam-in-lay packaging included

• Light Source: 7×60W RGBW + 28×2W SparkLED™
• Photometrics: 7 200 lm output
• Optics: Zoom 5°–77°; lens-based SparkLED™
• Movement: Continuous Pan 360°/540°; Tilt 360°/270°
• Control: DMX512-A, RDM, Art-Net™, sACN; 25/52/80 ch
• Connectivity: IP65 powerCON, XLR5, RJ45 EtherCON
• Power: 100–240 V AC; 700 W max
• Dimensions: 363.4×259.97×493.44 mm; Weight: 18.6 kg
• Thermal: BTU 2 387; –20 °C to 45 °C
• Certifications: CE, cETLus, IP65, UKCA

Perfect for outdoor concerts, festivals, and architectural lighting, the PROTEUS RAYZOR 760 excels in all weather, offering vibrant beams, expansive washes, and unique SparkLED accents for immersive visual experiences.
