6 way RDM DMX Opto Splitter

The RDMX6S is a compact, high-performance RDM/DMX splitter designed for professional lighting control environments. Built to support DMX512 and RDM (E1.20) protocols, it enables stable data distribution to multiple fixtures while ensuring signal regeneration and electrical isolation across outputs. Ideal for use in touring, theatre, and permanent installations.

• RDM E1.20 compliant for full bidirectional device management

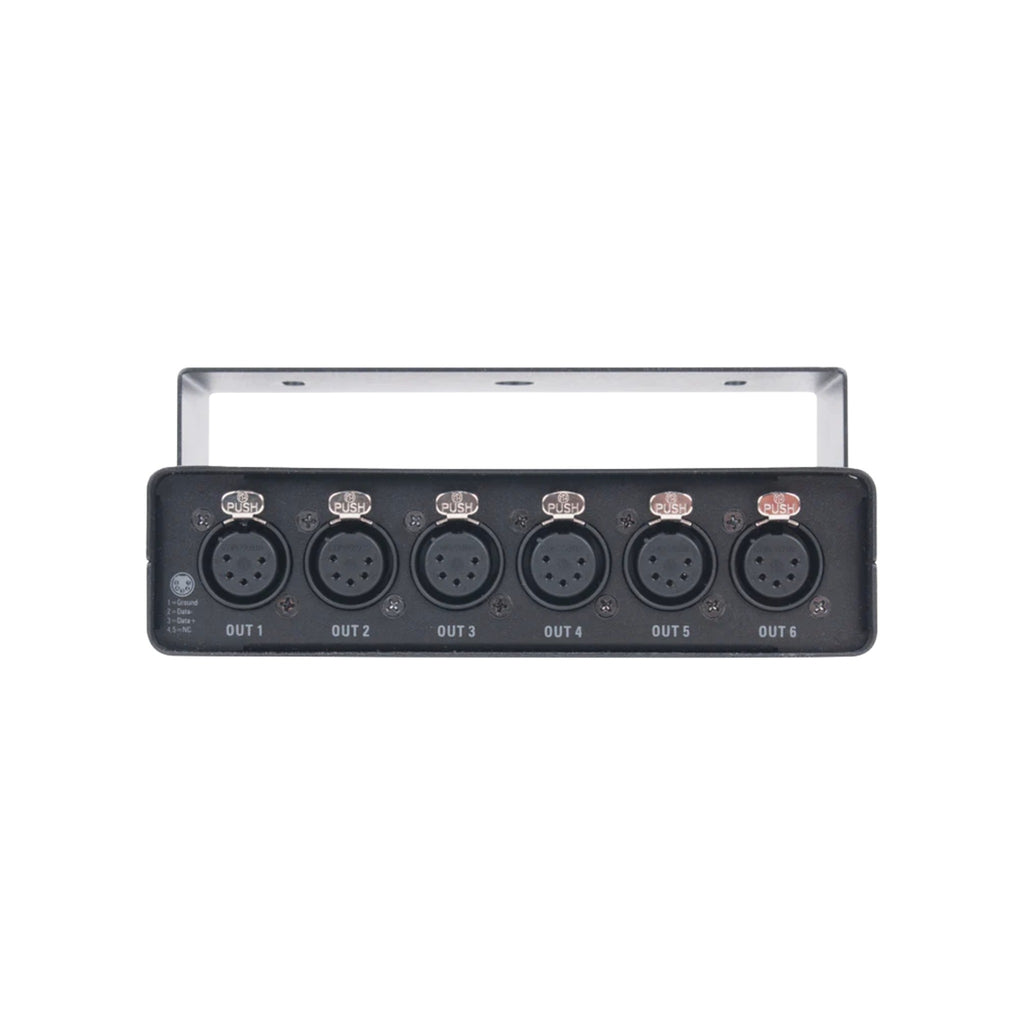

• Six opto-isolated 5-pin DMX outputs for clean, reliable signal splitting
• DMX loop-thru output with internal termination
• Universal 100-240 V auto-switching power supply with powerCON input
• Compact die-cast aluminum housing with truss/clamp mount included
• Optional rack mount kits for permanent system installations

• Dimensions (L × W × H): 173 mm × 170 mm × 74 mm (6.8? × 6.7? × 2.9?) with bracket
• Weight: Approx. 1.0 kg (2.1 lbs)
• Input Voltage: 100-240 V AC, 50/60 Hz
• Max Power Consumption: 3 W
• Operating Temperature: -10 °C to 45 °C (14 °F to 113 °F)
• Compliance: CE / RoHS

Perfect for lighting technicians, rental houses, and system integrators who require dependable DMX signal splitting with RDM support. Use it in touring racks, theatre venues, broadcast studios, or architectural installations to ensure robust signal distribution across complex control networks.
