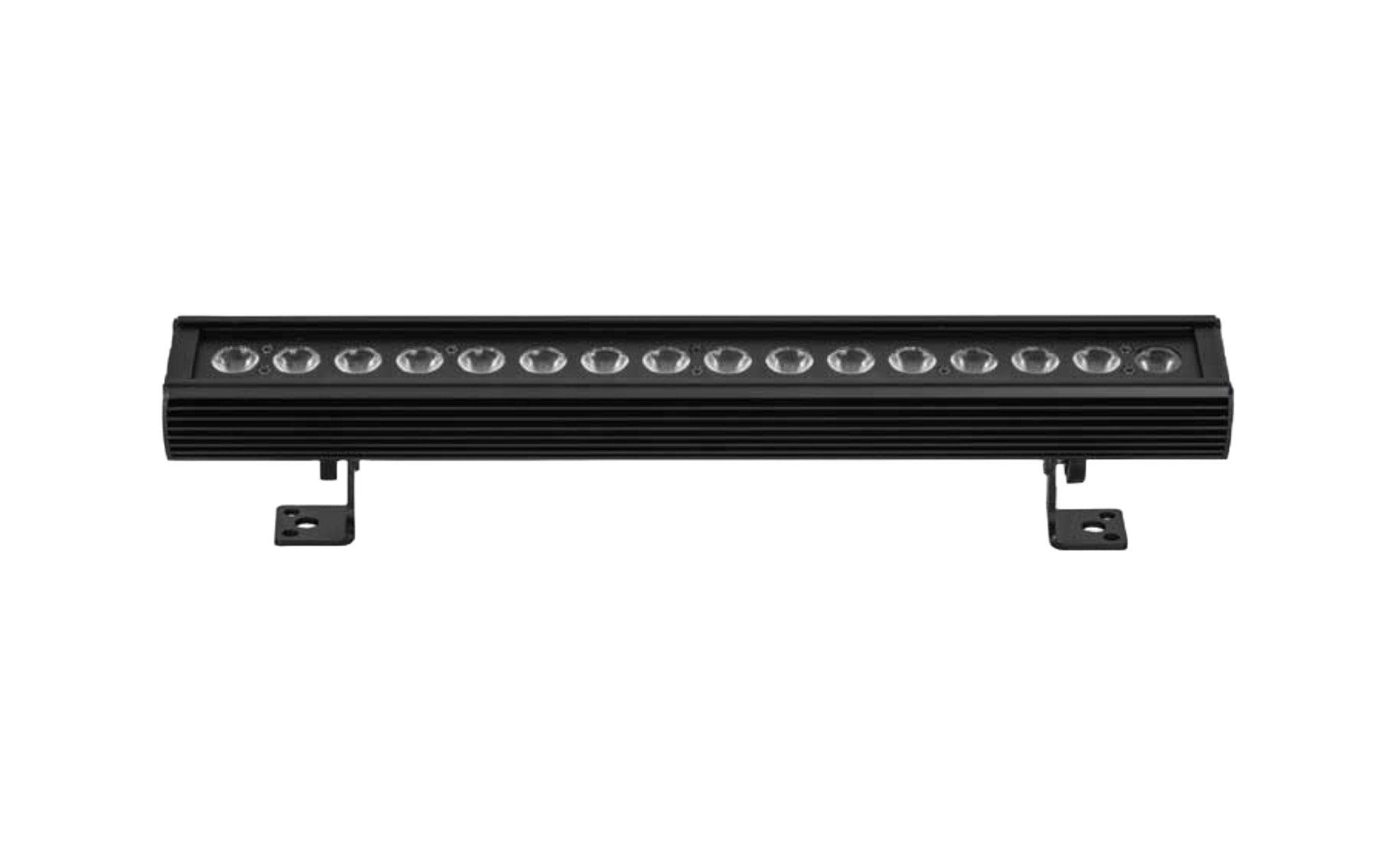

Color Span 2 400mm Medium Lens

Color Span 2 in the 400 mm (16?) format delivers 667 lumens of smooth output per segment, making it ideal for tight architectural coves, feature accents, and low-profile installs. Its RGBAW LED array offers homogenous color mixing, selectable optics, and full pixel mapping, all controlled via Art-Net, sACN, DMX, or RDM.

• RGBAW LED engine: 144 LEDs (24 R, 24 G, 24 B, 24 A, 48 W), L70 > 50 000 h
• 400 mm format with 667 lm output per segment
• Selectable optics: 12°, 23°, or 40° for flexible coverage
• Seamless, pixel-free wash with no visual gaps
• Color temp presets: 1 000–10 000 K + green-magenta tint
• Theatrical dimming curves and virtual color wheel
• DMX, RDM, Art-Net, and sACN protocol support
• Aluminium housing with angle mounting brackets
• Compatible with PS02, PS06 & PS18 PSU systems

• Beam Angle: 12°, 23°, or 40° options
• Output: 667 lm per 400 mm segment
• Control: DMX512-A, RDM, Art-Net, sACN
• Connectivity: etherCON, 5-pin XLR, powerCON (IP20)
• Power: Auto-ranging 100–240 VAC; up to 8 fixtures linked
• Dimensions: 413 × 87 × 60 mm (16.3? × 3.4? × 2.4?)
• Weight: ~1.2 kg (2.6 lb)
• CCT Control: Virtual color wheel + green/magenta shift
• Certifications: CE, MET, FCC; IP20 rated

Perfect for architectural details, compact set designs, and tight lighting environments, the 400 mm Color Span 2 delivers precise washes and pixel control in a minimal footprint.
