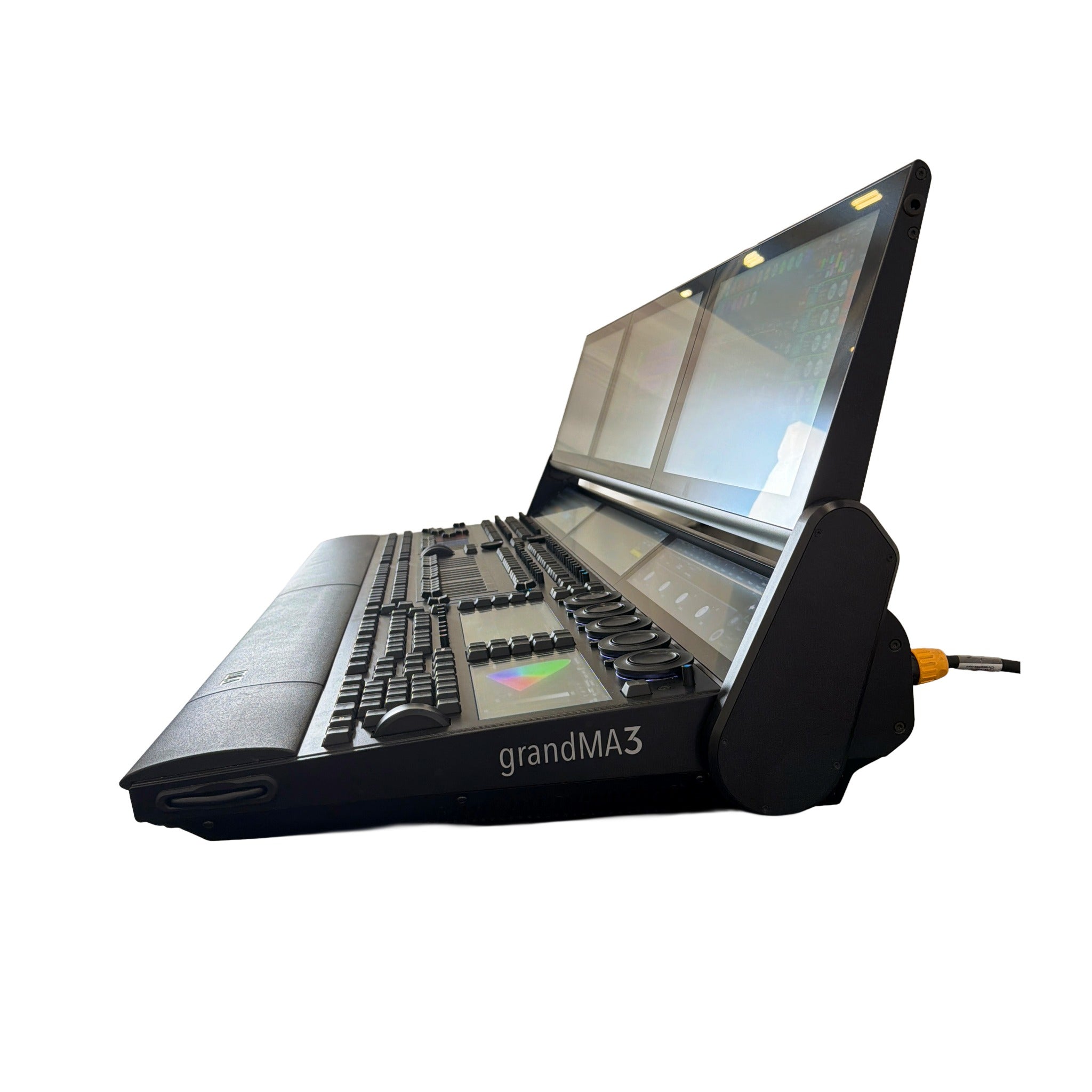

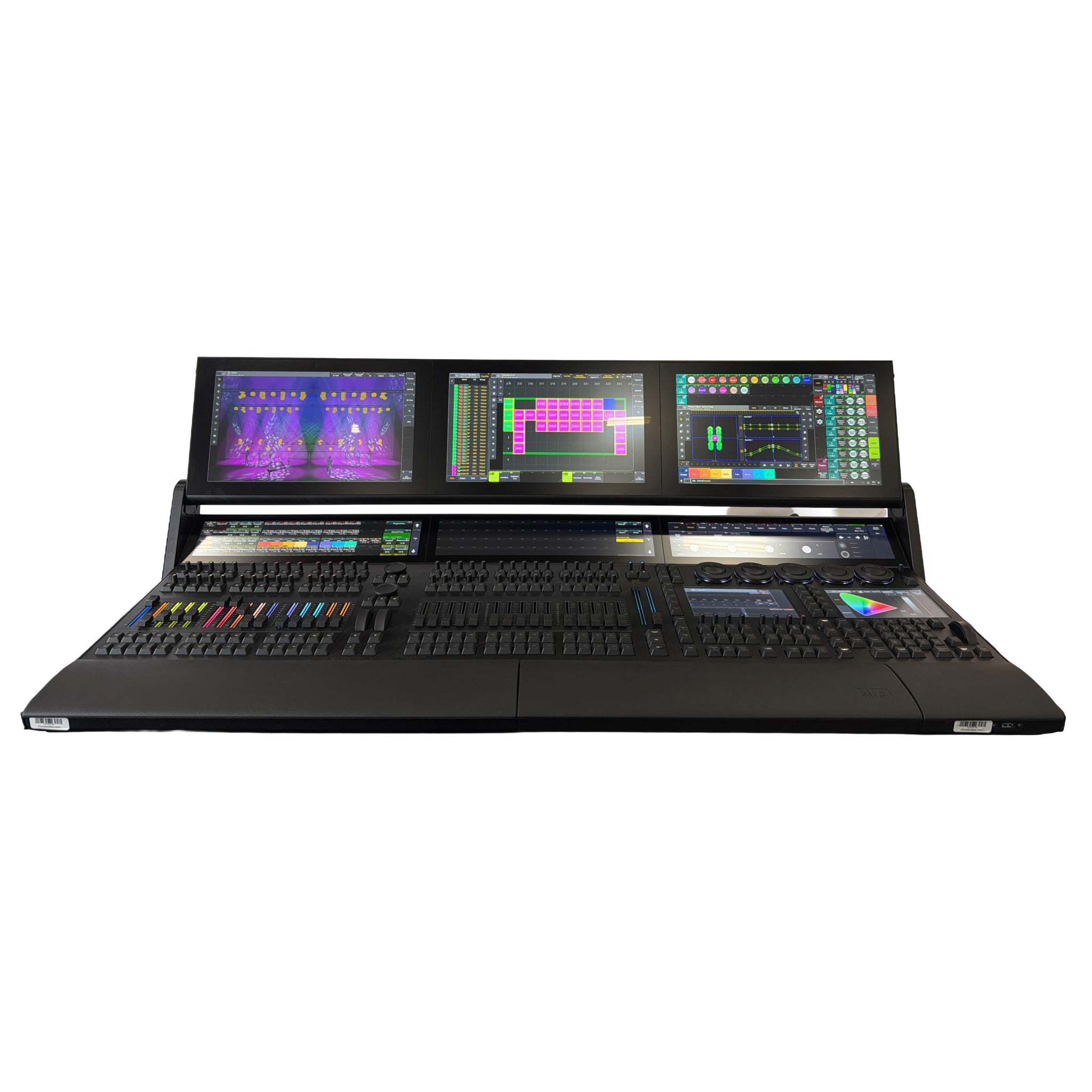

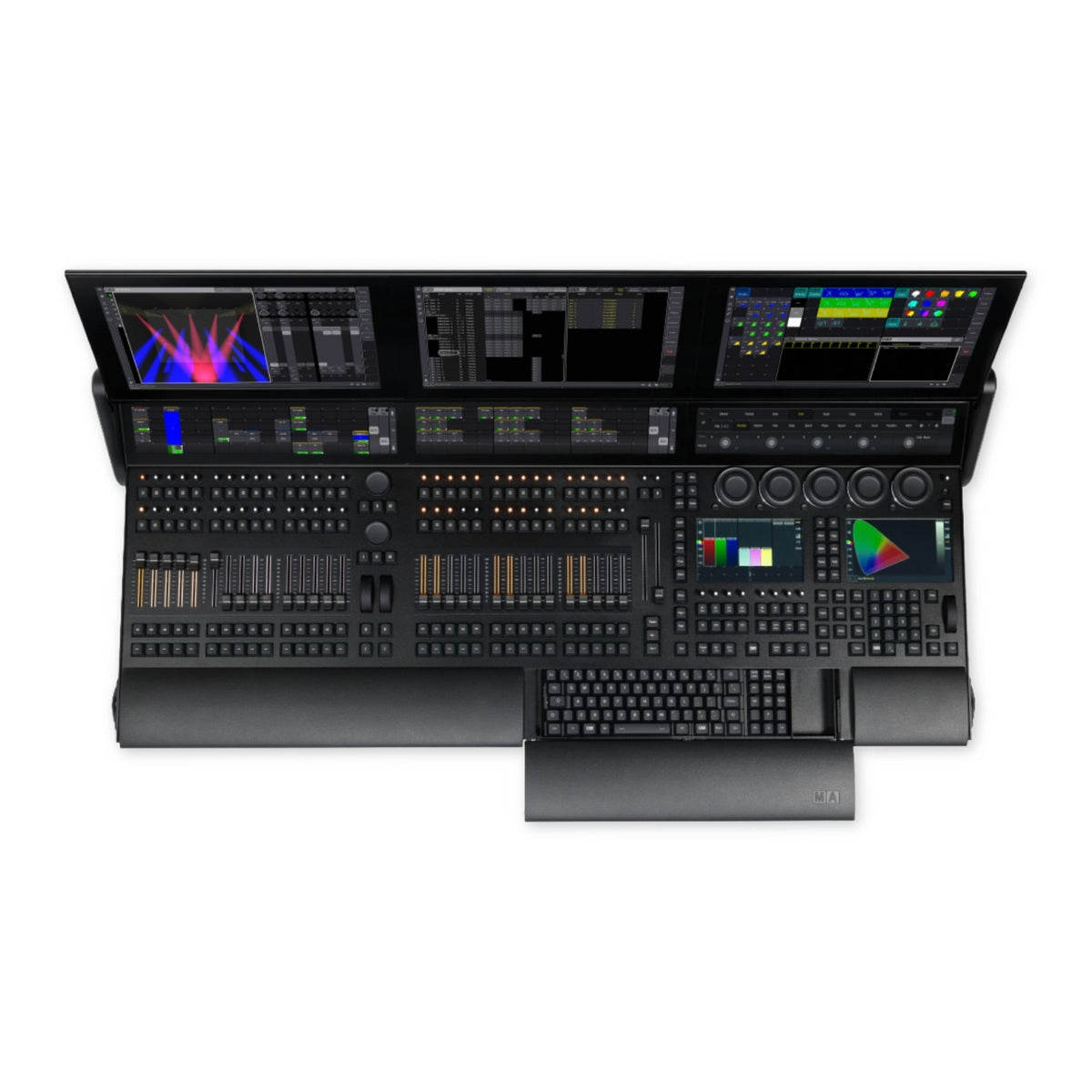

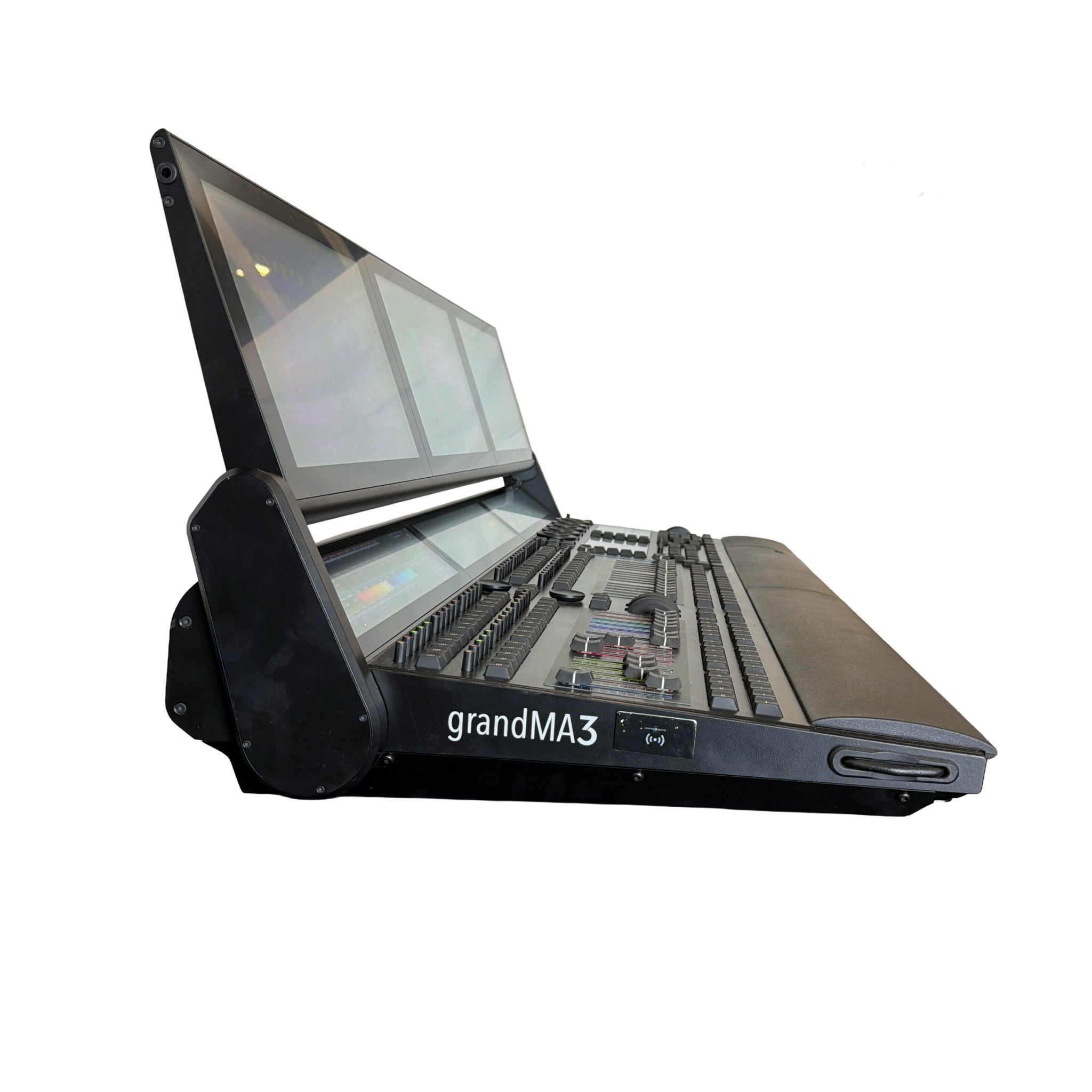

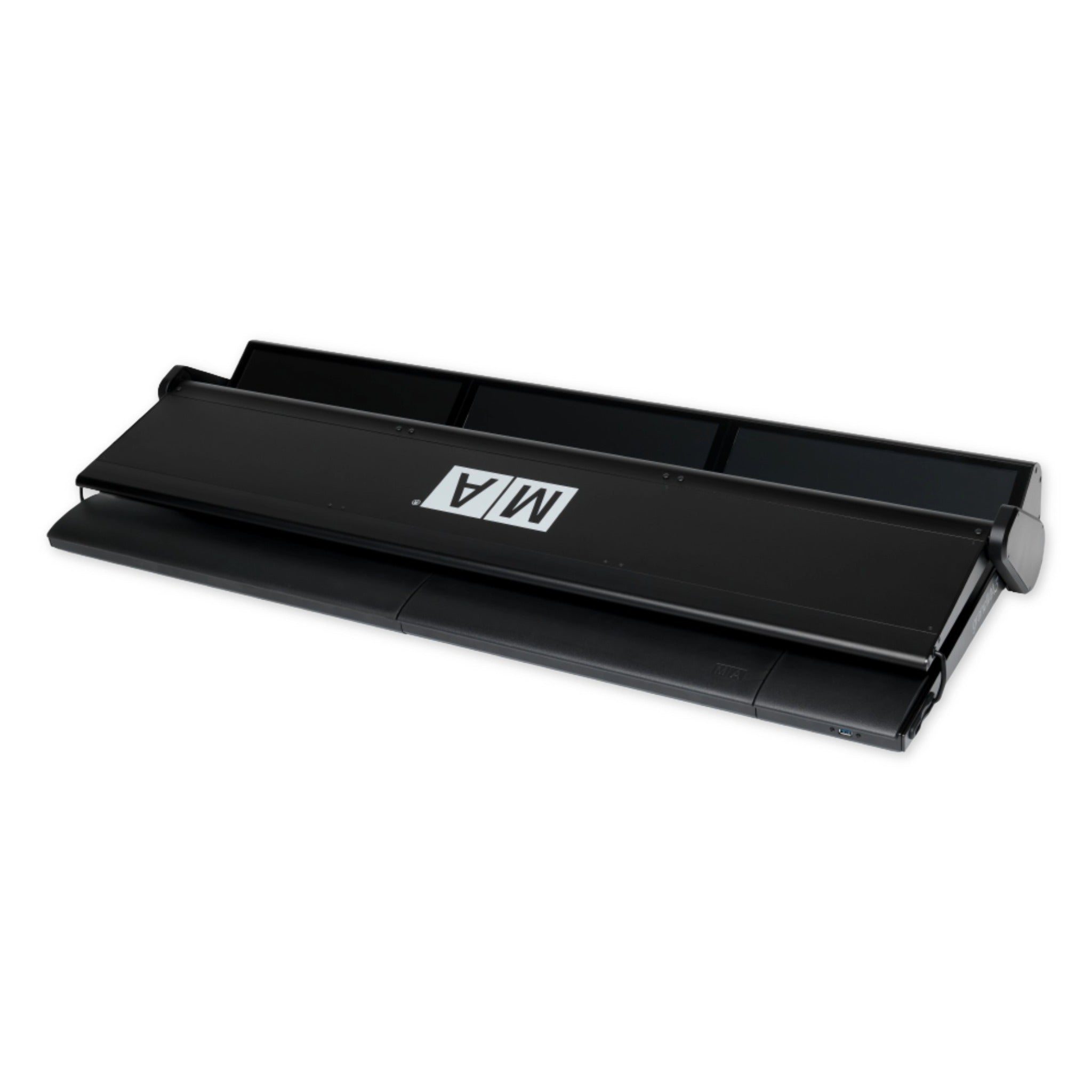

grandMA3 Full size

The grandMA3 full-size console is the flagship lighting control desk from MA Lighting, delivering no-compromise performance for professional entertainment lighting. Built for touring, broadcast, theatre, and large installations, it combines powerful system architecture with intuitive hardware controls. With vast playback capacity, advanced parameter handling, and deep integration with grandMA2 and grandMA3 software, this console offers maximum flexibility and control for demanding lighting environments.

• Flagship grandMA3 full-size lighting control console
• Huge multi-touch display area plus three context-sensitive letterbox screens
• 120 physical playbacks and 16 assignable x-keys for flexible cueing
• Dual encoders with customizable mapping for advanced parameter editing
• Motorized long-life faders with color-changing light pipes
• Supports up to 20,480 control parameters natively (expandable to 250,000 with processing units)
• Compatible with both grandMA2 and grandMA3 software environments
• Supports GDTF (General Device Type Format) for accurate fixture control
• Ergonomically optimized, silent-running console design

• System Parameters: 20,480 (HTP/LTP), Mode2: 8,192
• Playbacks: 120 physical playbacks
• Assignable Keys: 16 x-keys
• Displays: 3 internal foldable multi-touch screens + 3 letterbox screens + 2 command screens
• Encoders: Dual encoders with customizable feature mapping
• Faders: Motorized long-life faders with RGB light pipes

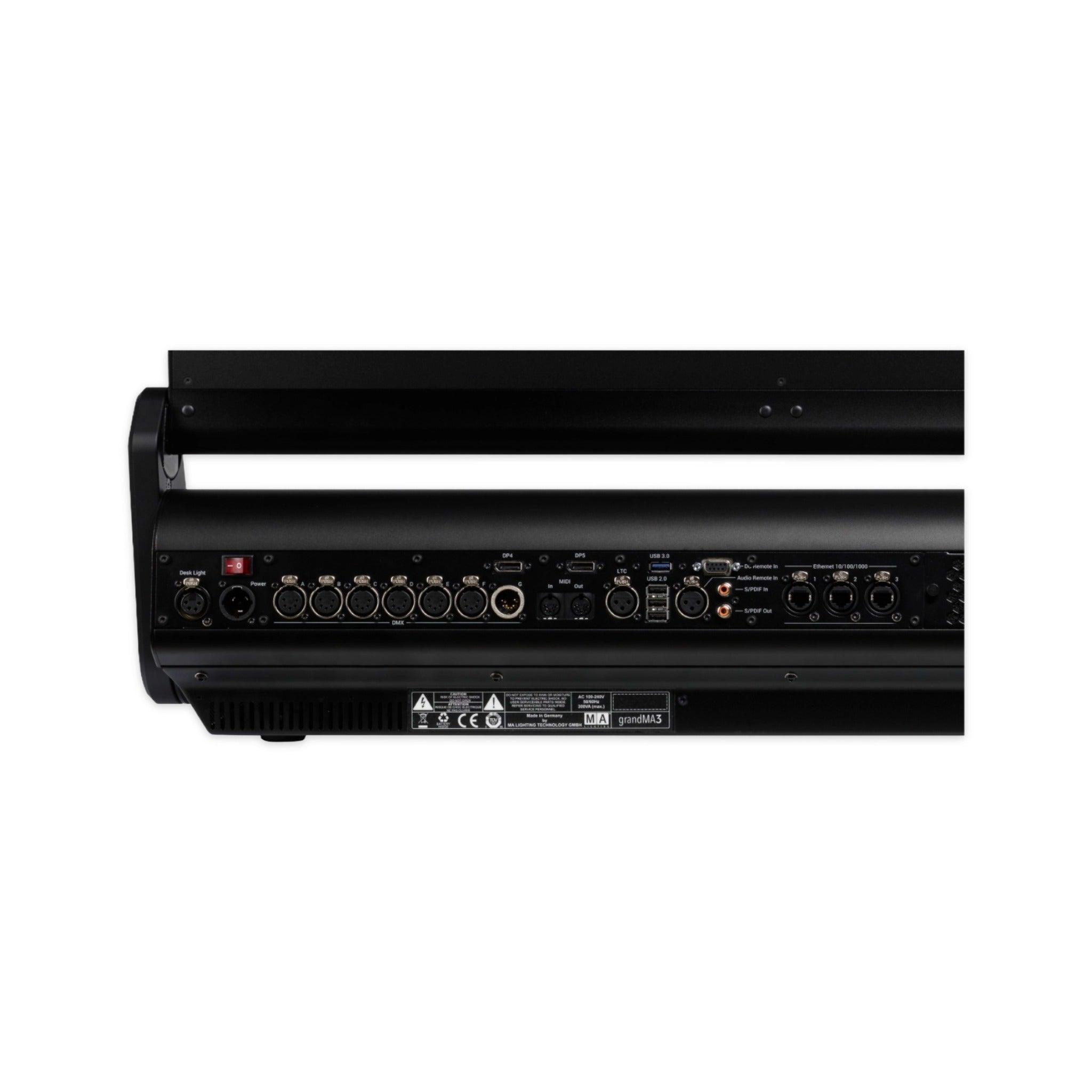

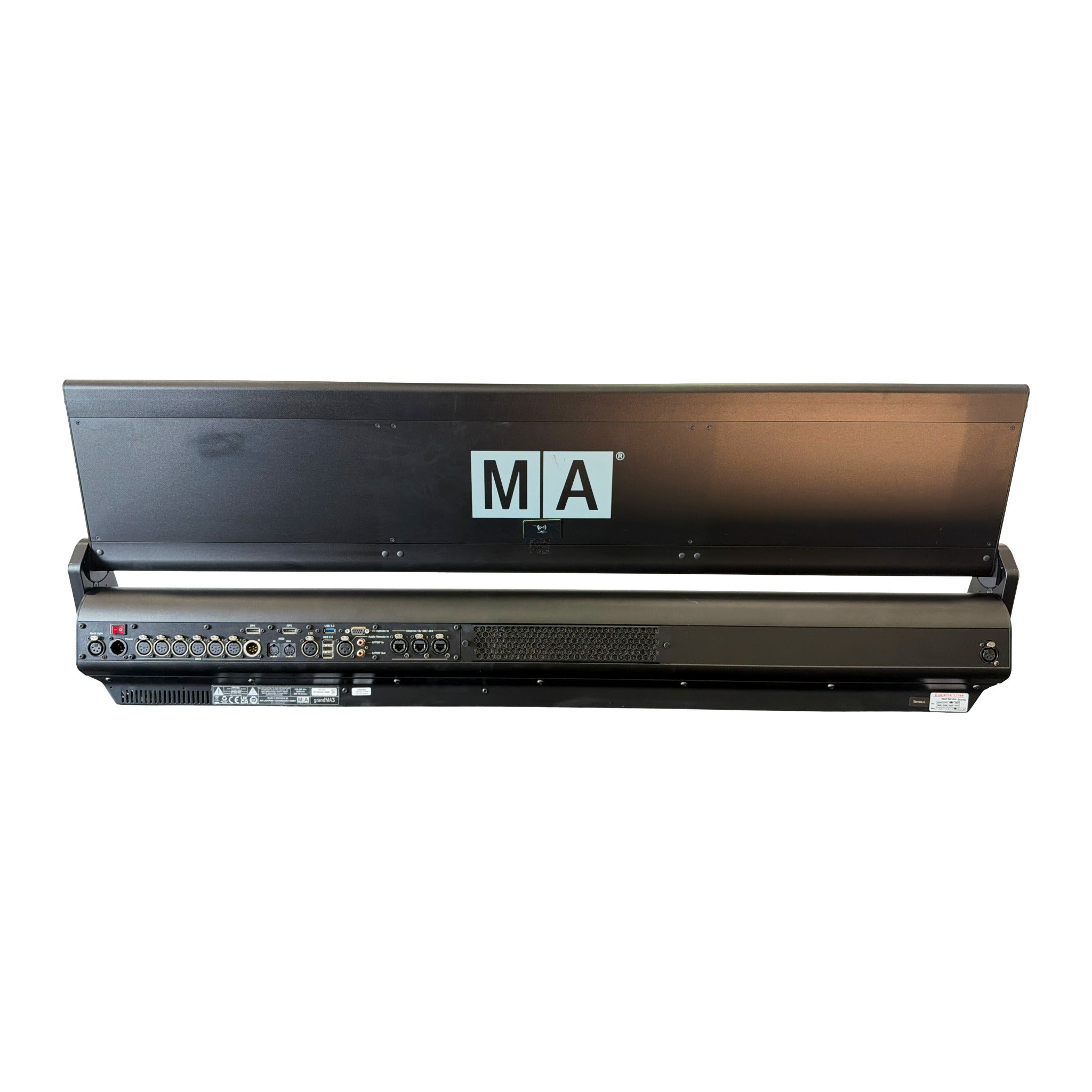

• Ethernet: 3 × etherCON / RJ45
• DMX I/O: 6 × DMX512-A Out (5-pin XLR), 1 × DMX512-A In (5-pin XLR)
• MIDI / SMPTE / Audio: MIDI In/Out, Linear Timecode In, Audio In
• GPI: General Purpose Interface (D-SUB DE9) for remote control
• Video Output: 2 × DisplayPort 1.2 for external screens
• Audio In: 1 × 3-pin XLR
• S/PDIF: In & Out
• USB: 3 × USB 2.0 (Type A), 3 × USB 3.0 (Type A)
• Desk Lights: 2 × LED desk lights (4-pin XLR)
• Power: AC 100–240 V, 50/60 Hz; max 300 VA
• Operating Temp: 0 °C to 40 °C (32 °F to 104 °F)
• Dimensions (folded): 1,256 × 539 × 181 mm (50" × 22" × 8")
• Dimensions (unfolded): up to 1,256 × 871 × 255 mm (50" × 35" × 10")
• Net Weight: 44 kg / 98 lbs

Designed for lighting designers, touring professionals, broadcast engineers, and theatrical productions requiring the highest level of control. The grandMA3 full-size console excels in large venues, complex DMX/sACN networks, synchronized show programming, and integration with media servers, pixel mapping, and augmented reality visualization tools.
