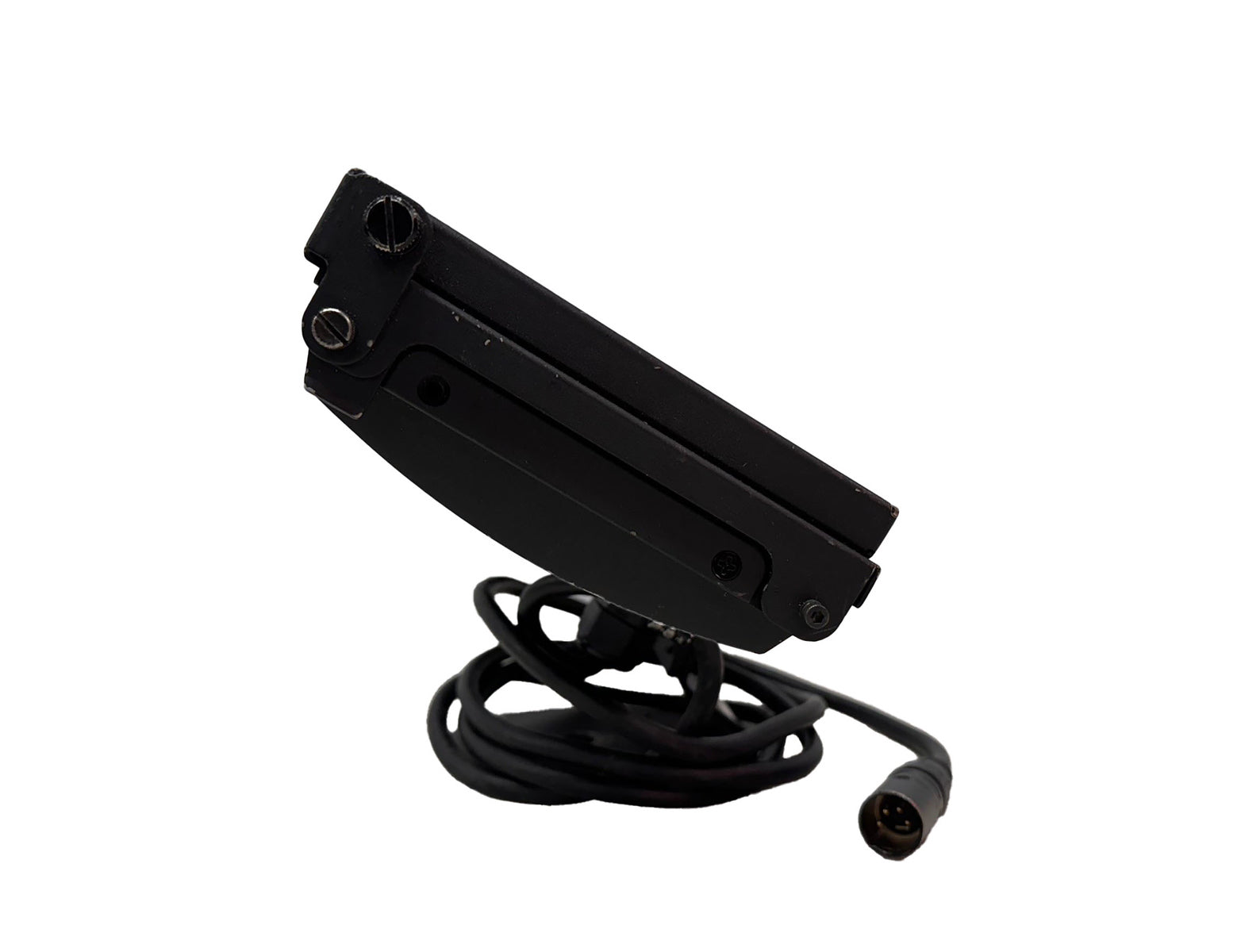

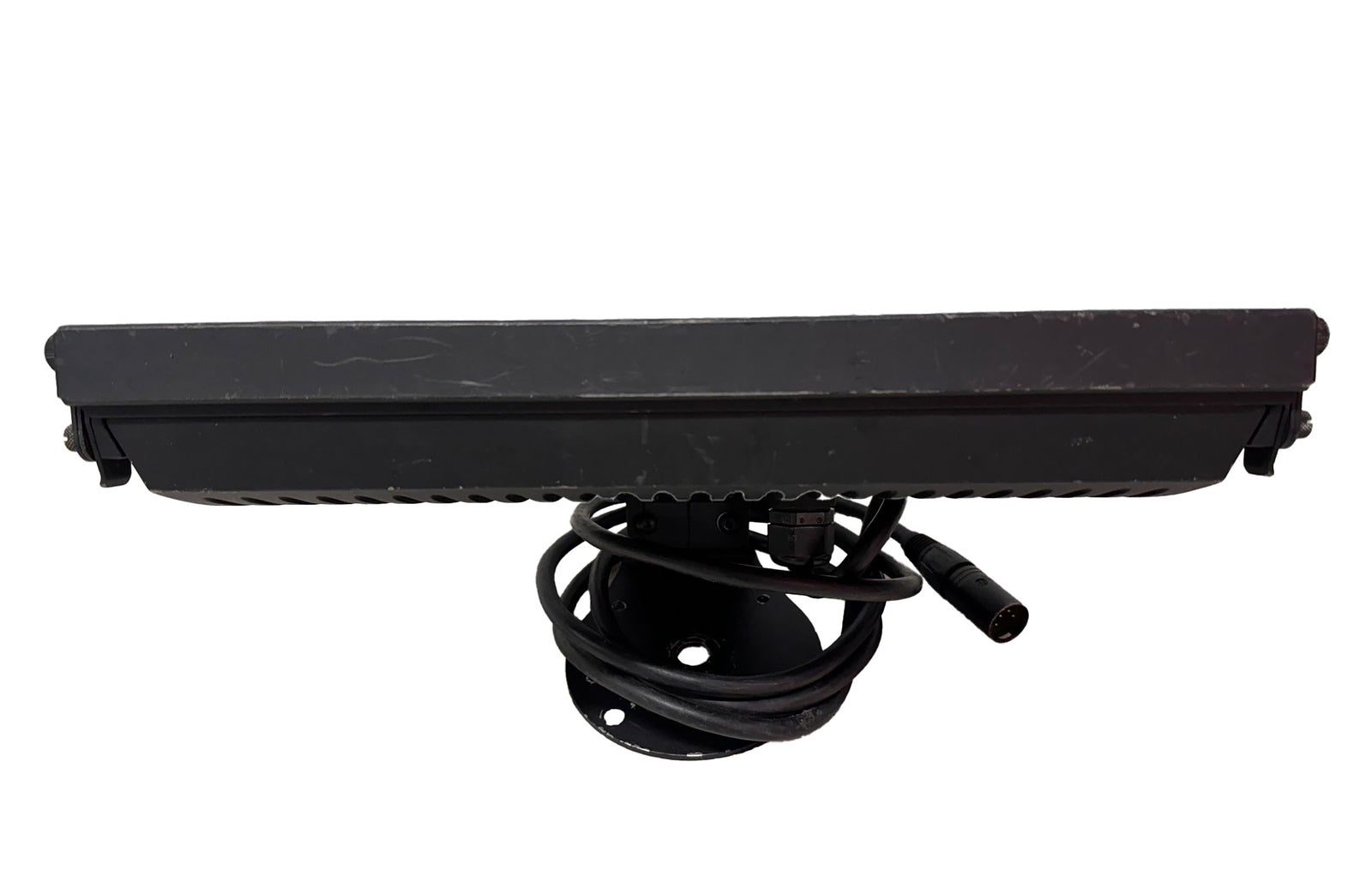

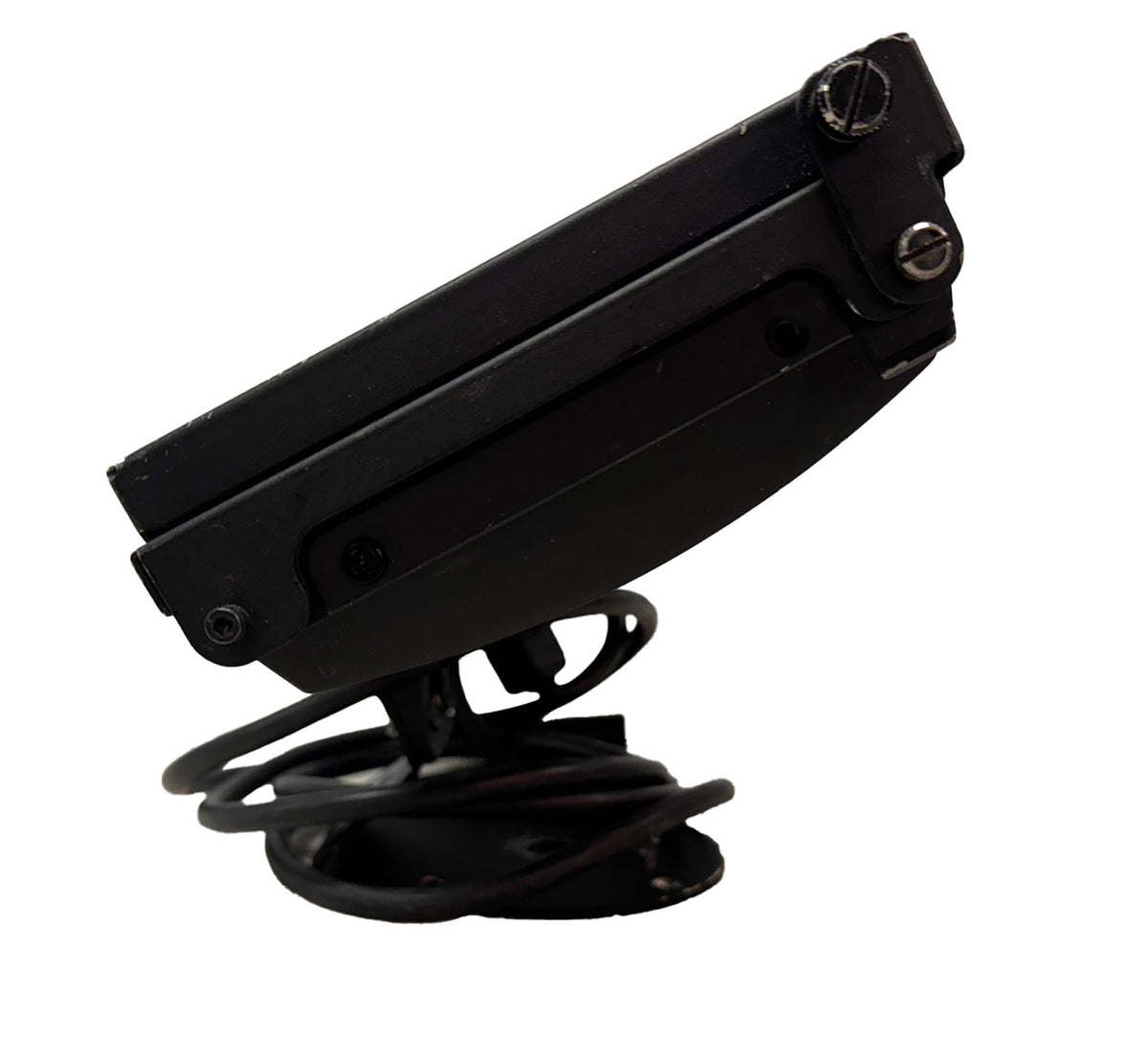

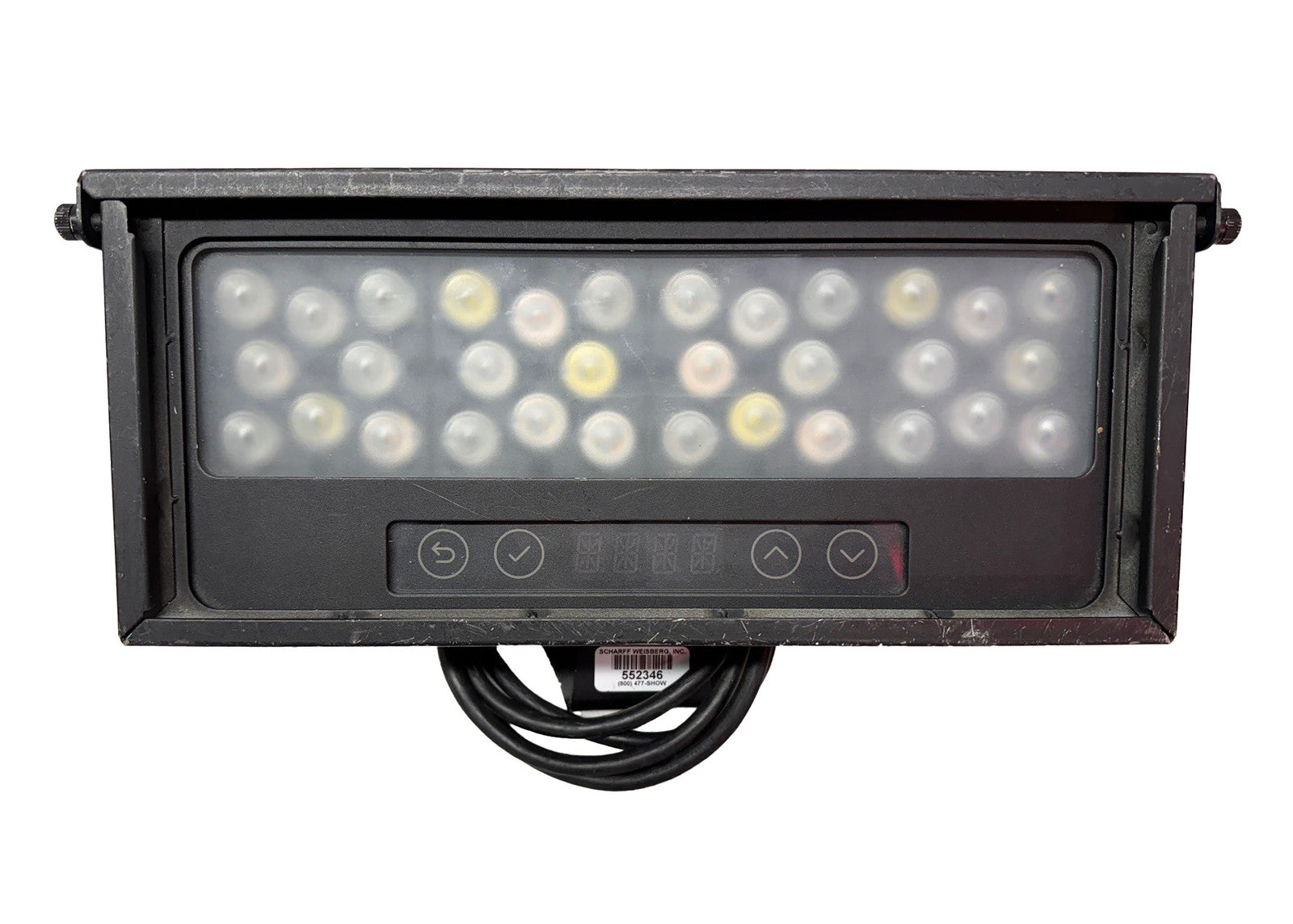

ColorBlast 12 TRX RGBAW

The Color Kinetics ColorBlast TRX is a theatrical RGBAW LED wash, flood, and spotlight designed for stage, set, rental, and entertainment environments. With an expanded color range, onboard configuration, DMX or standalone operation, and rugged construction, it delivers flexible color wash performance for professional productions and installations.

View Manual

• RGBAW LED wash, flood, and spotlight for theatrical and rental applications
• Expanded color palette with amber and neutral white LEDs
• DMX or standalone operation for flexible control setups
• 16-bit resolution for smooth dimming and precise color control
• Touch-sensitive onboard menus for addressing and configuration
• Pivoting bezel with exchangeable lenses for wash or beam applications
• Industrial-grade constant torque hinge with 110° fixture tilting
• Rugged die-cast aluminum housing for stage and touring environments

• Product Type: Theatrical RGBAW LED wash / flood / spotlight
• Light Source: RGBAW LED
• Light Output: Up to 1577 lumens
• Control: DMX or standalone mode
• Control Resolution: 8- or 16-bit control
• Color Modes: RGBAW or RGB modes
• Lens: Clear glass
• Fixture Connections: 6 ft (1.8 m) power / data cable with 4-pin XLR connector
• Housing: Die-cast aluminium, powder-coated black finish
• Environment: Dry / Damp Location, IP22
• Dimensions (Height x Width x Depth): 8 x 14 x 3 in (203 x 356 x 76 mm)
• Weight: 7.25 lb (3.3 kg)

Ideal for theaters, rental inventories, exhibition spaces, nightclubs, live events, themed environments, and stage or set lighting applications that need saturated color, quality whites, and flexible wash or beam looks.
