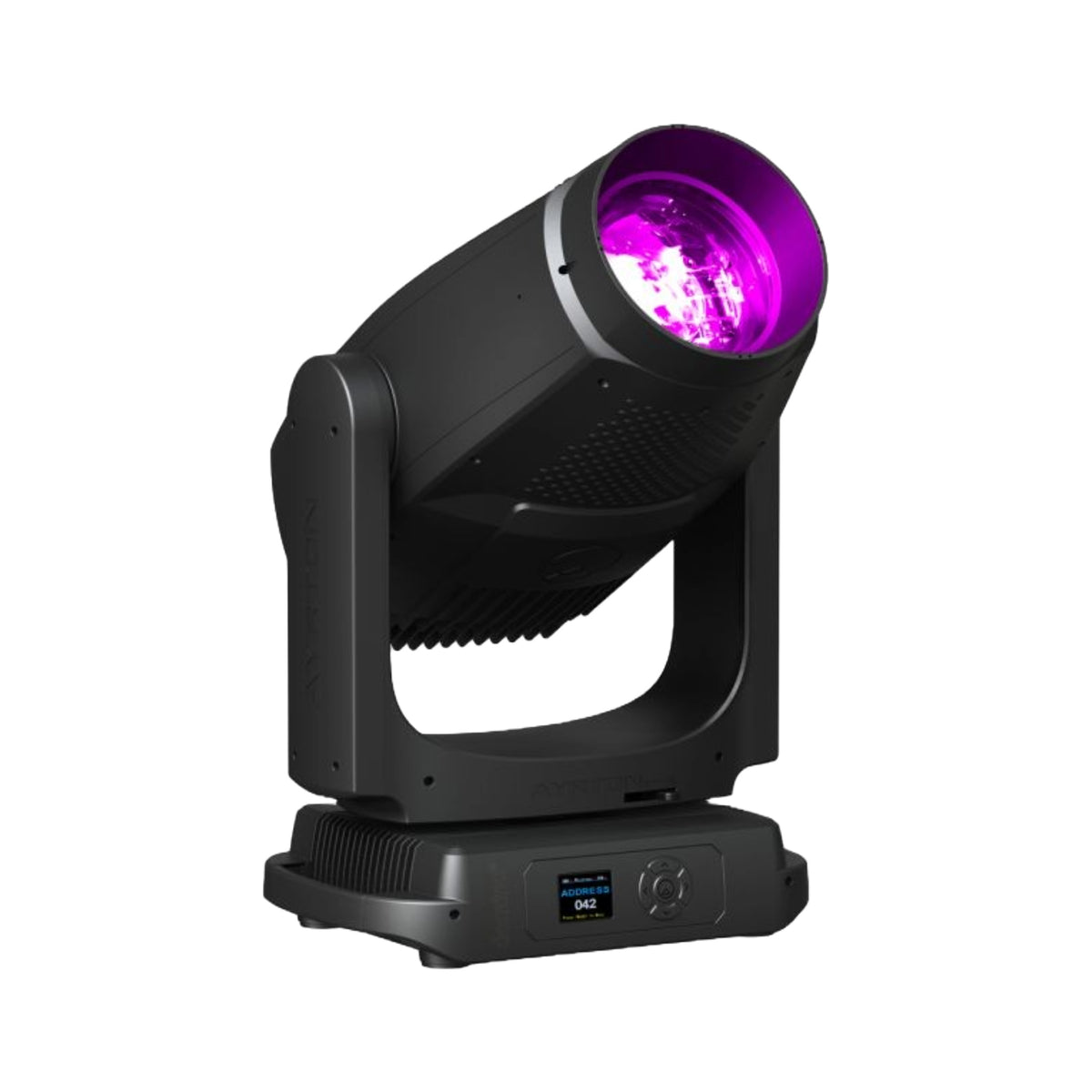

Domino Profile S Ayrton Moving Light

The Ayrton Domino Profile S is an IP65-rated, weatherproof LED profile fixture with a compact die-cast aluminum frame and liquid cooling system. It delivers up to 51 000 lumens through a precision 6°–60° zoom optic and features a CMY+CTO color system, framing shutters, dual gobo wheels, animation, iris, frost, and prisms—built for extreme conditions.

• 75 000 lm white LED engine (S model) delivering 51 000 lm output at 7 000 K
• 13-element 10:1 zoom (6°–60°) with tempered anti-reflective lenses
• Subtractive CMY plus variable CTO and 6-position color wheel
• Framing system: 4 individual 100% blades ±60° rotation
• Two gobo wheels: 14 HD glass gobos, + open; continuous animation wheels
• 15-blade iris, light & heavy frost filters, 5-facet & 4-facet prisms
• Liquid cooling with six external fans for silent, extreme-duty operation
• IP65 connectors: XLR5, RJ45, powerCON TRUE1; CRMX wireless option

• Optics: 178 mm lens, 6°–60° beam aperture, fast linear zoom
• Source: 75 000 lm LED engine (S) or 56 000 lm (TC), CRI>70/90
• Movement: Pan 540°; Tilt 263°; 8/16-bit stepper motors
• Effects: CMY+CTO, color wheel, framing, gobos, animation, iris, frost, prisms
• Control: DMX512-A, RDM, Art-Net, sACN, CRMX; 44–66 channels
• Power: 200–240 V AC; 1 800 W max; active PFC
• Dimensions: 490×841×330 mm; Weight: 52 kg
• Cooling: Liquid-cooled with IP68 fans; silent mode
• Protection: IP65/66 variants for DMX/Ethernet/Power

Perfect for outdoor concerts, theatrical productions, and extreme-environment installations, the Domino Profile S provides robust, high-output framing and projection effects in any weather without compromise.
