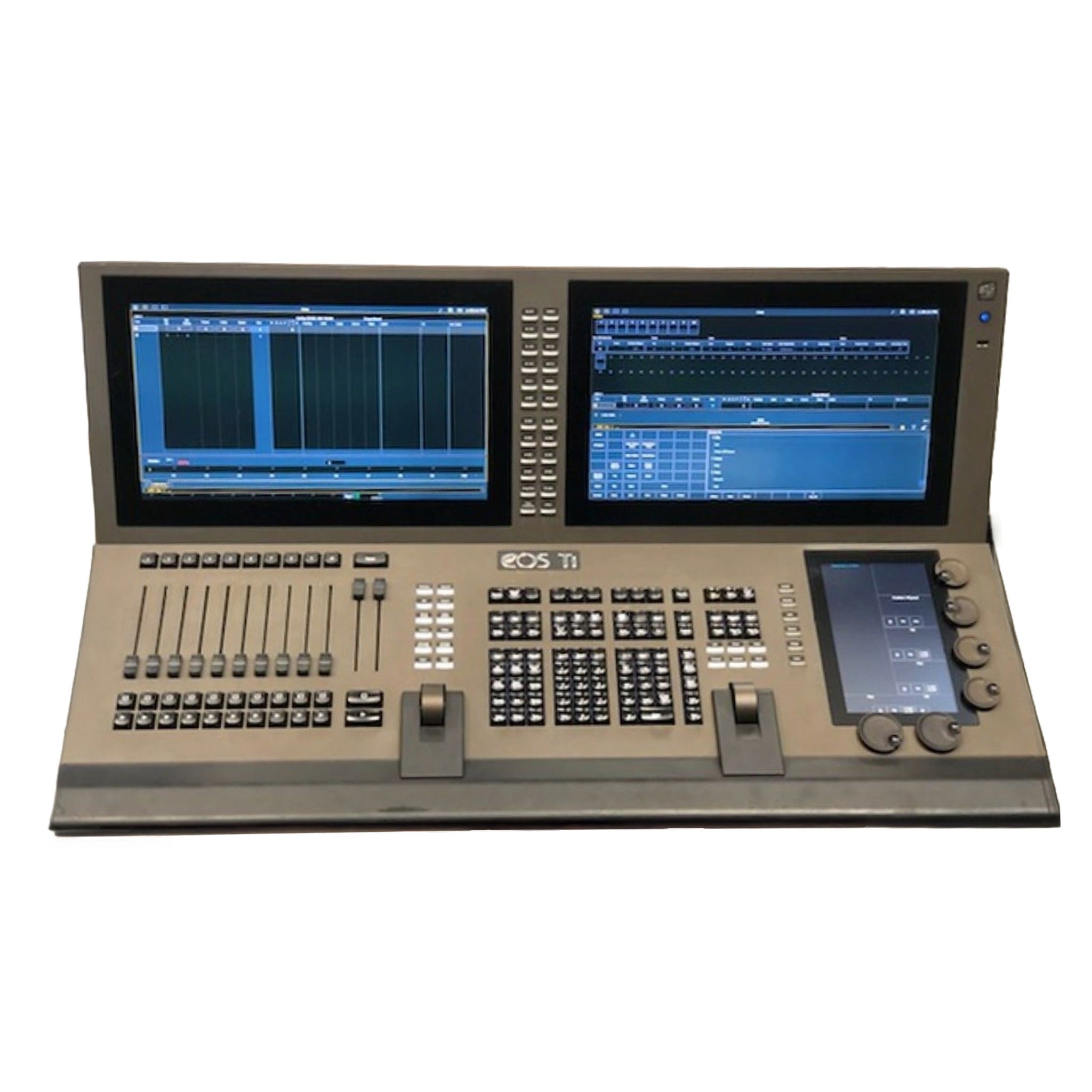

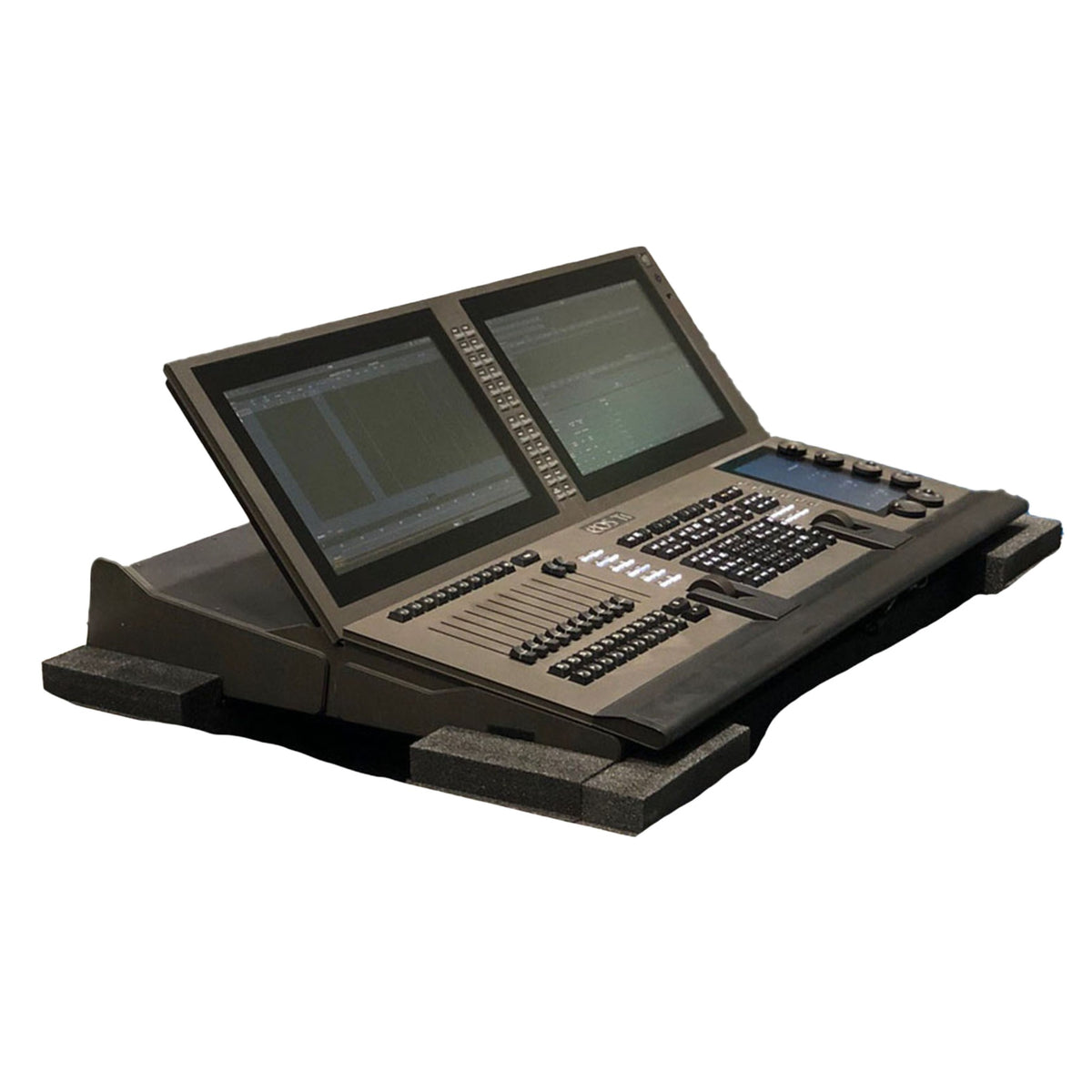

EOS Ti 24576 Ch

The Eos Titanium (Ti) lighting console offers powerful hardware and intuitive control tools, built for fast-paced professional lighting environments. With large-format multi-touch displays, motorized faders, multi-user partitioning, and deep protocol integration, Ti empowers designers and programmers alike to execute complex shows efficiently. Its responsive workflow, extensive command-line integration, and robust networking features make it a flagship solution for large-scale lighting control.

• Up to 24 576 outputs with partitioned control
• Master playback pair with motorized 100 mm faders
• Ten motorized 100 mm faders x 100 pages for configurable faders, submasters, and grandmaster control
• Two articulating 18.5" multi-touch LCD displays; supports three external DisplayPort monitors (1280x1024 minimum), with DisplayPort-to-DVI adapters provided
• Touchscreen monitors available upon request
• Four discrete palette types (Intensity, Focus, Color, Beam); presets function as all palette
• Magic Sheets with interactive topographic or abstract layouts
• Virtual media server for pixel mapping, effects, images, and animations
• Built-in CIA (Central Information Area) with keyboard, color tools, browser, and system controls
• ETCNet2, Net3 (ACN), Artnet, and Avab UDP network protocols
• List views of all record targets and user-configurable high-density channel display
• Data-laundering from legacy consoles including GrandMA1, Strand 500/300, Congo, Emphasis, and more
• OSC and UDP transmit/receive; SMPTE and MIDI Timecode via gateway
• Client/server networking with synchronized backup and offline programming support
• Localization support for 10+ languages

• Output Capacity: 4 096 or 24 576 outputs; upgradeable to 16 384 (for older models with 3 DVI ports)
• Control Channels: 32 768, addressable 1–99 999
• Cues: 10 000; Cue Lists: 999
• Submasters: 999; Fader Pages: 100
• Palettes: 4 x 1 000 (Intensity, Focus, Color, Beam)
• Presets: 1 000 (all palette); Groups: 1 000
• Effects: 1 000 (relative, absolute, step); Macros: 99 999
• Snapshots: 1 000; Curves: 1 000; Color Paths: 1 000
• Displays: Two built-in 18.5" articulating multi-touch LCDs
• External Monitors: Supports 3 high-resolution DisplayPort monitors (1280x1024 minimum); single or multi-touch
• User Interfaces: 20 user-definable buttons; dedicated pan/tilt encoders plus four pageable haptic encoders

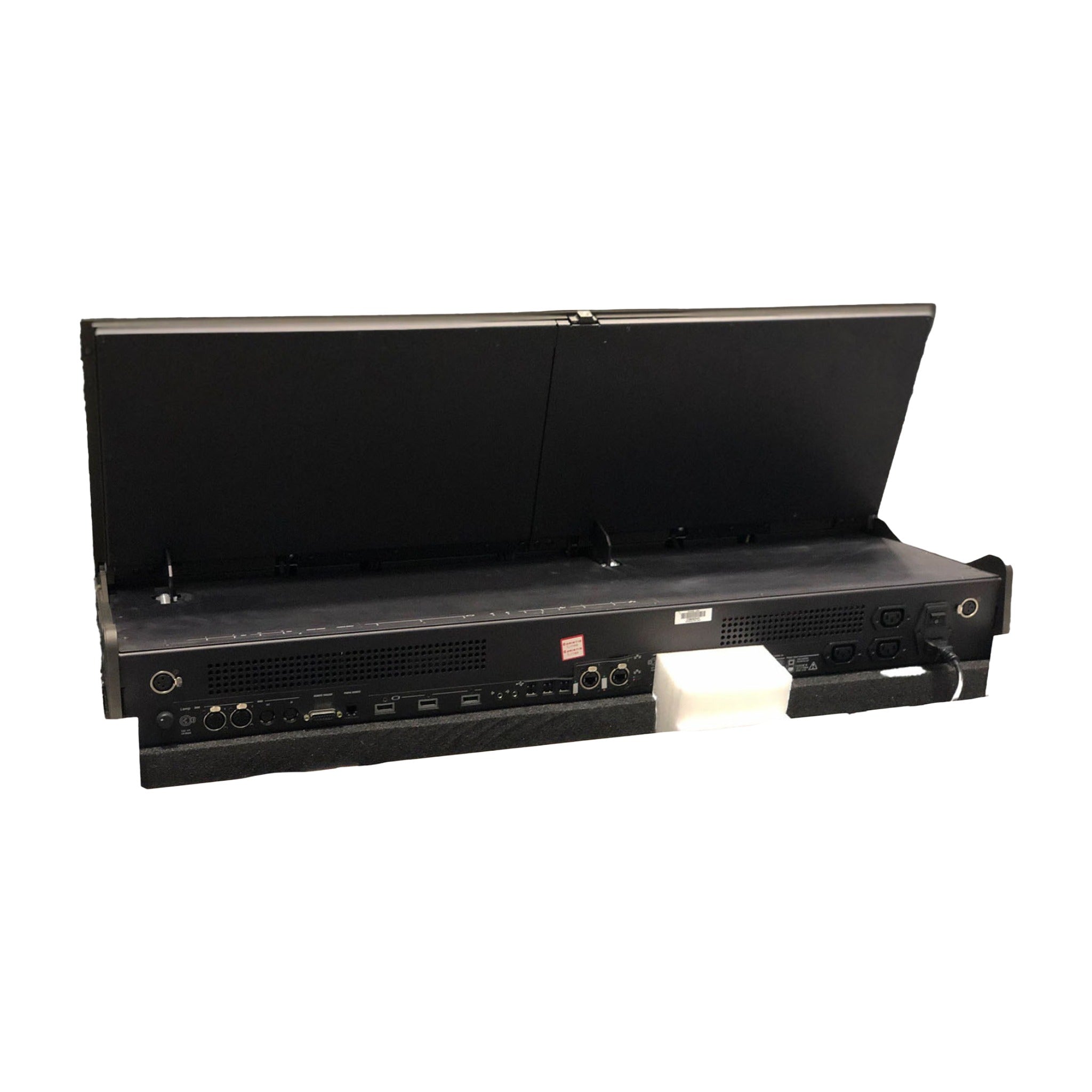

• Ethernet: 2 individually configurable ports (802.3af PSE)
• DMX Ports: 4 DMX512/RDM outputs; RDM discovery and device control
• MIDI: MIDI In/Out, Timecode, and Notes via gateway
• SMPTE: Supported via gateway
• Other I/O: Contact-closure triggers via D-sub; 12 analog inputs, 12 SPDT contact outputs, and RS-232 via Gateway
• USB: 11 USB ports for accessories and storage
• Power: Three female IEC connectors
• Storage: Solid-state hard drive
• Dimensions (Console Only): 14.58" H x 39.50" W x 26.25" D (370 x 1003 x 667 mm)
• Dimensions in Shipping Container: 14" H x 45" W x 31" D (356 x 1143 x 787 mm)

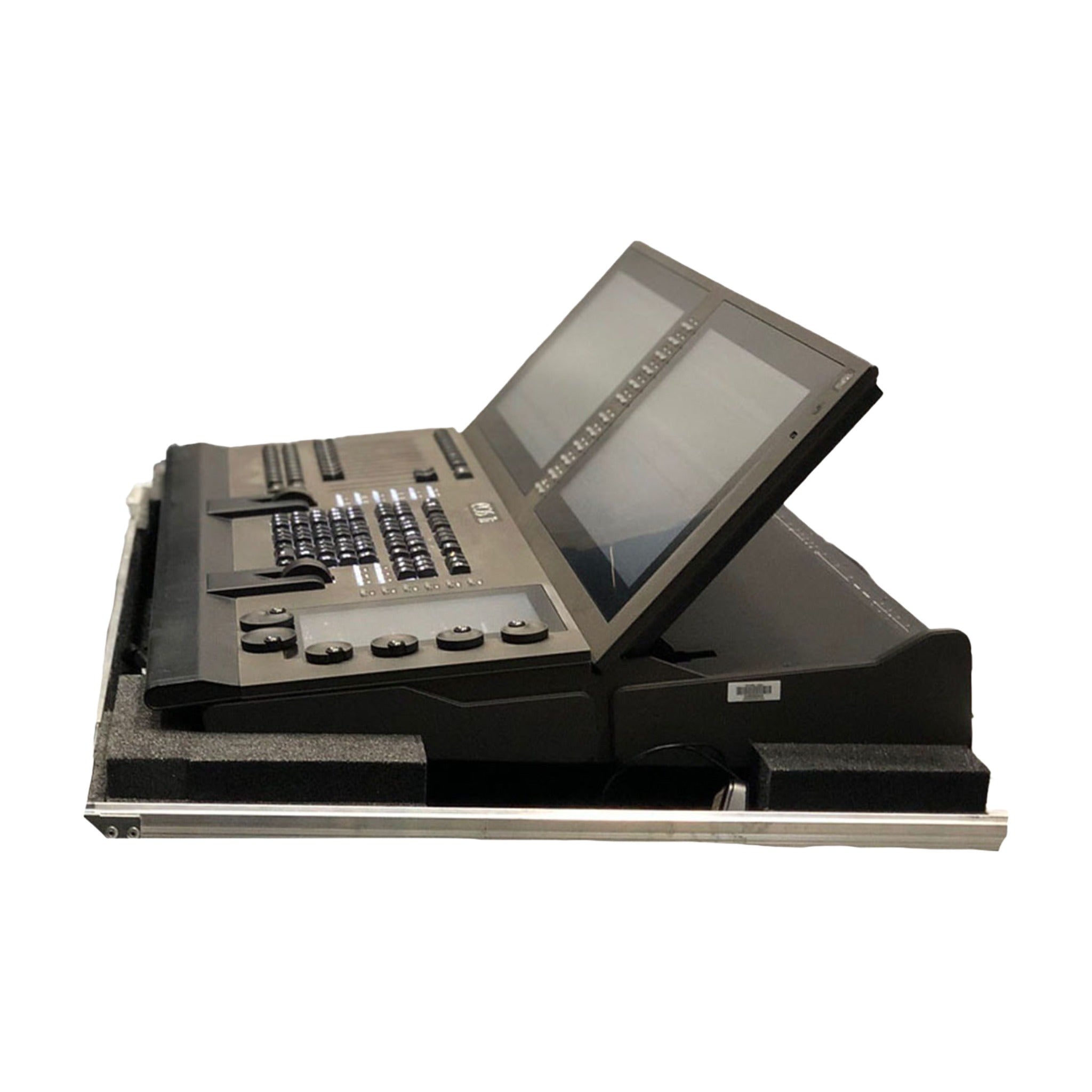

• Dimensions in Road Case: 37" H x 45.5" W x 10.6" D (940 x 1155 x 270 mm)
• Weight (Console Only): 85 lb (38.5 kg)
• Weight in Shipping Container: 120 lb (54.5 kg)
• Weight in Road Case: 150 lb (68 kg)

Engineered for large-scale productions, Eos Ti is ideal for theatrical designers, broadcast studios, concert tours, and venue integrators needing high-output control, robust show file management, and multi-user collaboration with extensive customization tools.
