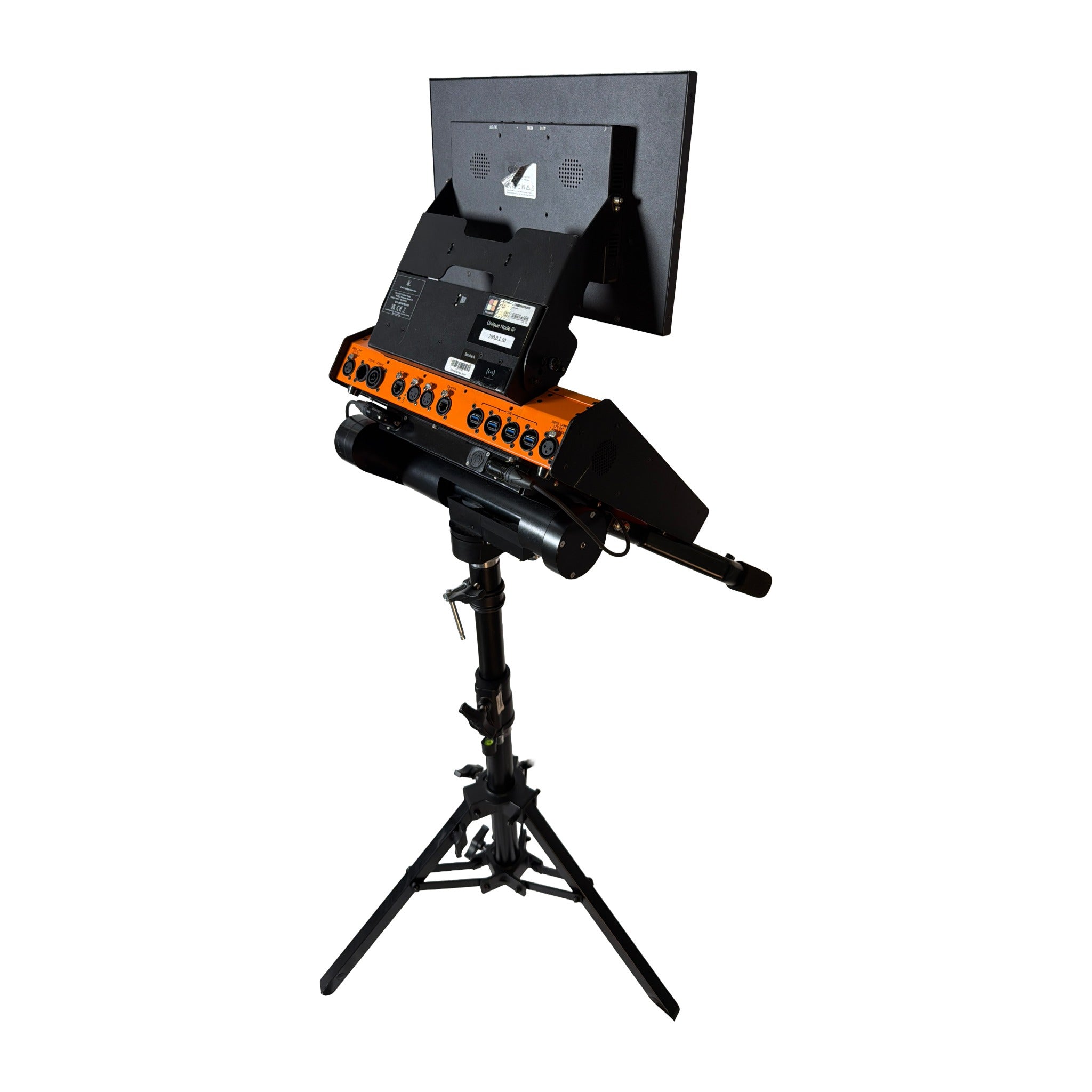

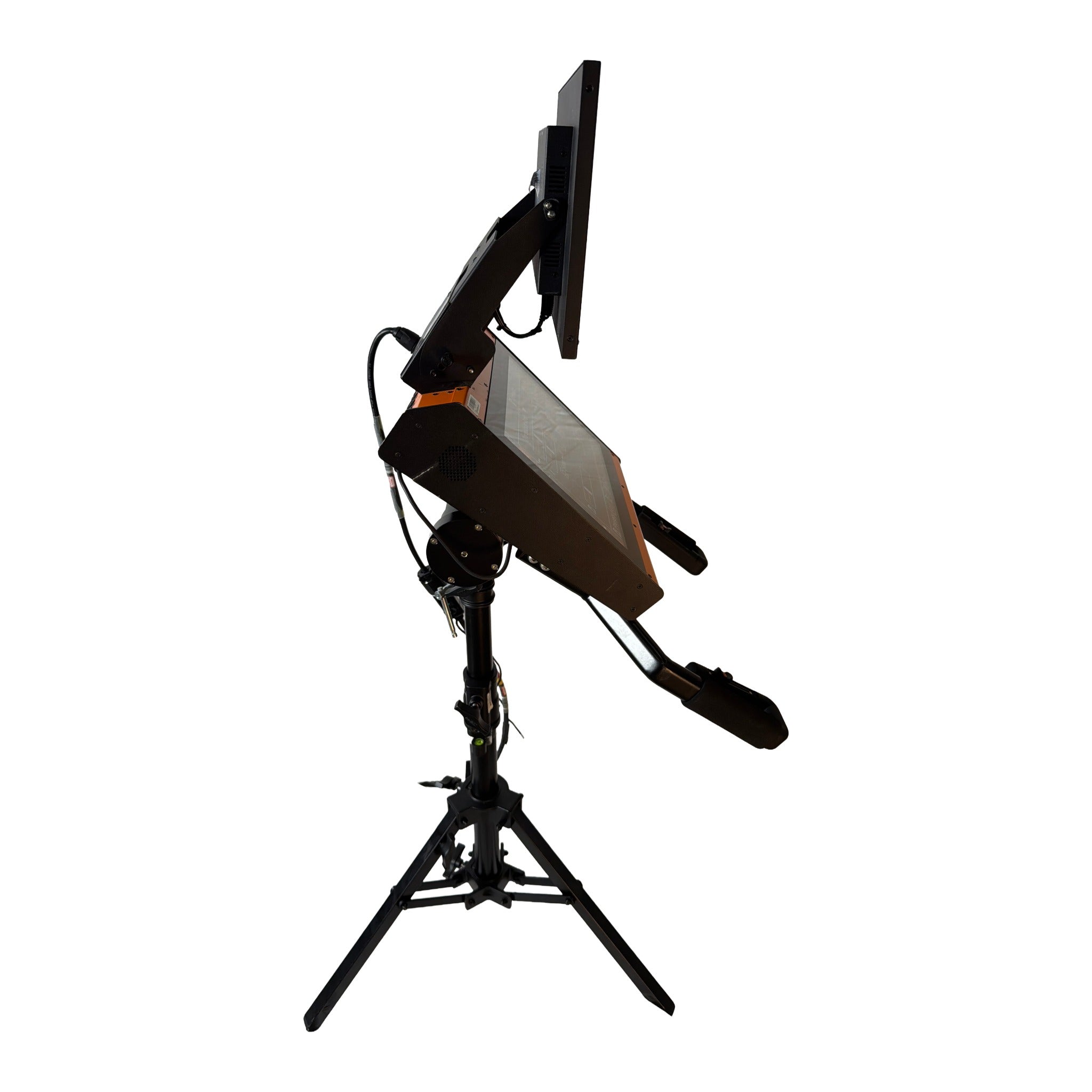

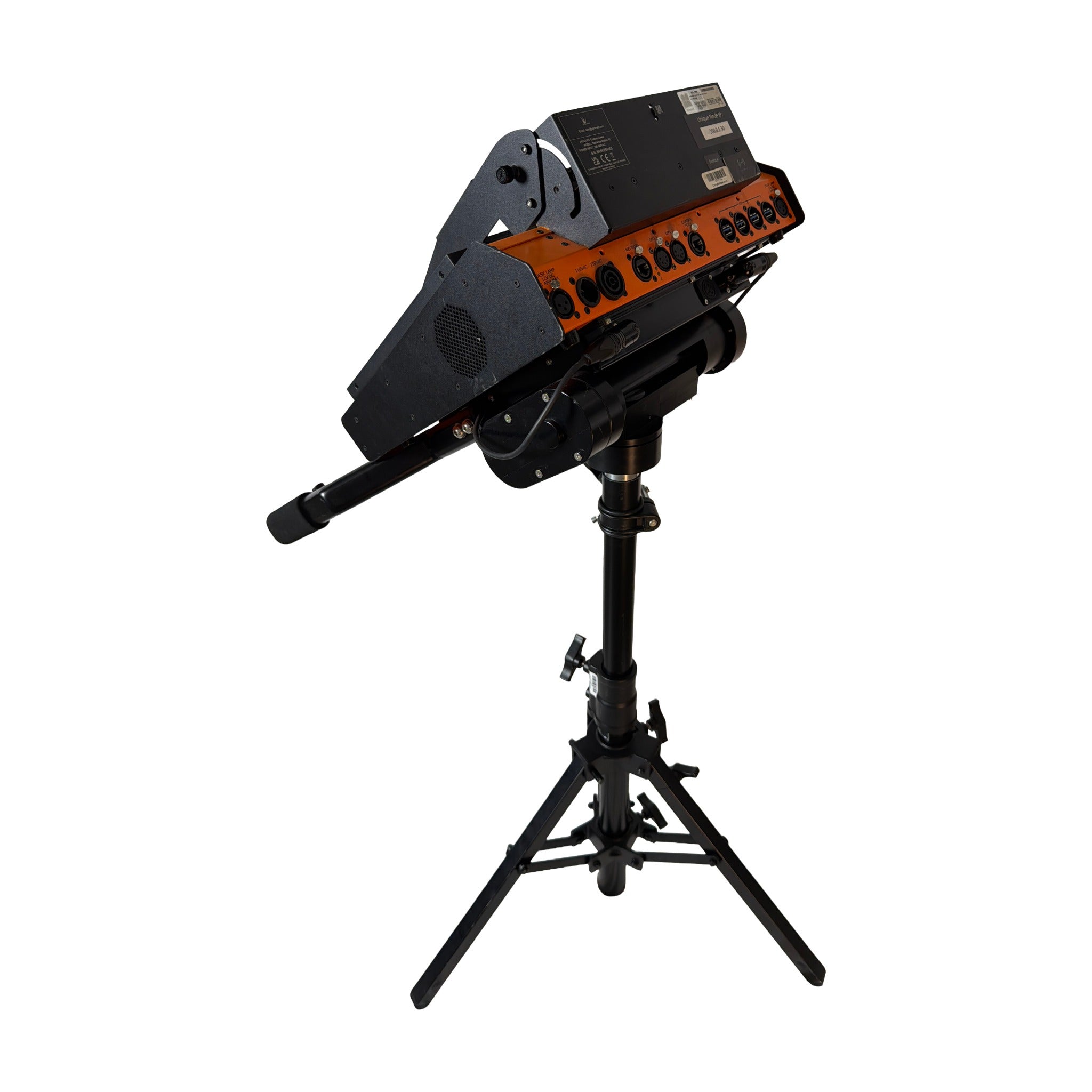

Evolution V4

Spotrack Evolution V4 is a humancentric follow spot control platform that lets operators track performers with natural handlebar movement while automated fixtures adjust key attributes in real time. Designed for professional productions, it supports synchronized tracking across multiple moving lights, helping improve operator safety, lighting consistency, and production workflow.

View Manufacturer Data Sheet

• Controls moving lights of any make or model as motion tracking followspots.
• Supports synchronized tracking of two to eight key lights per system for key, fill, and back light coverage.

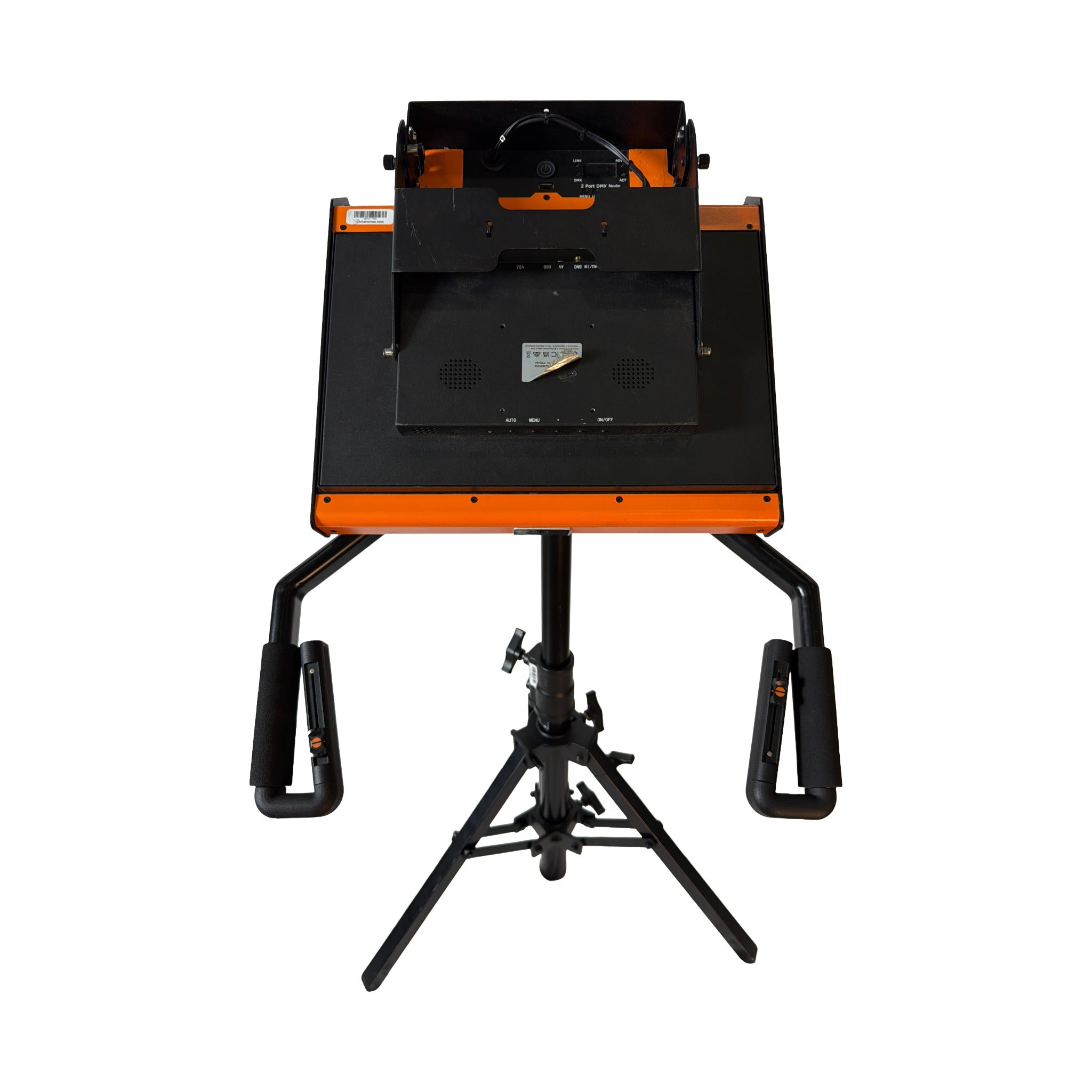

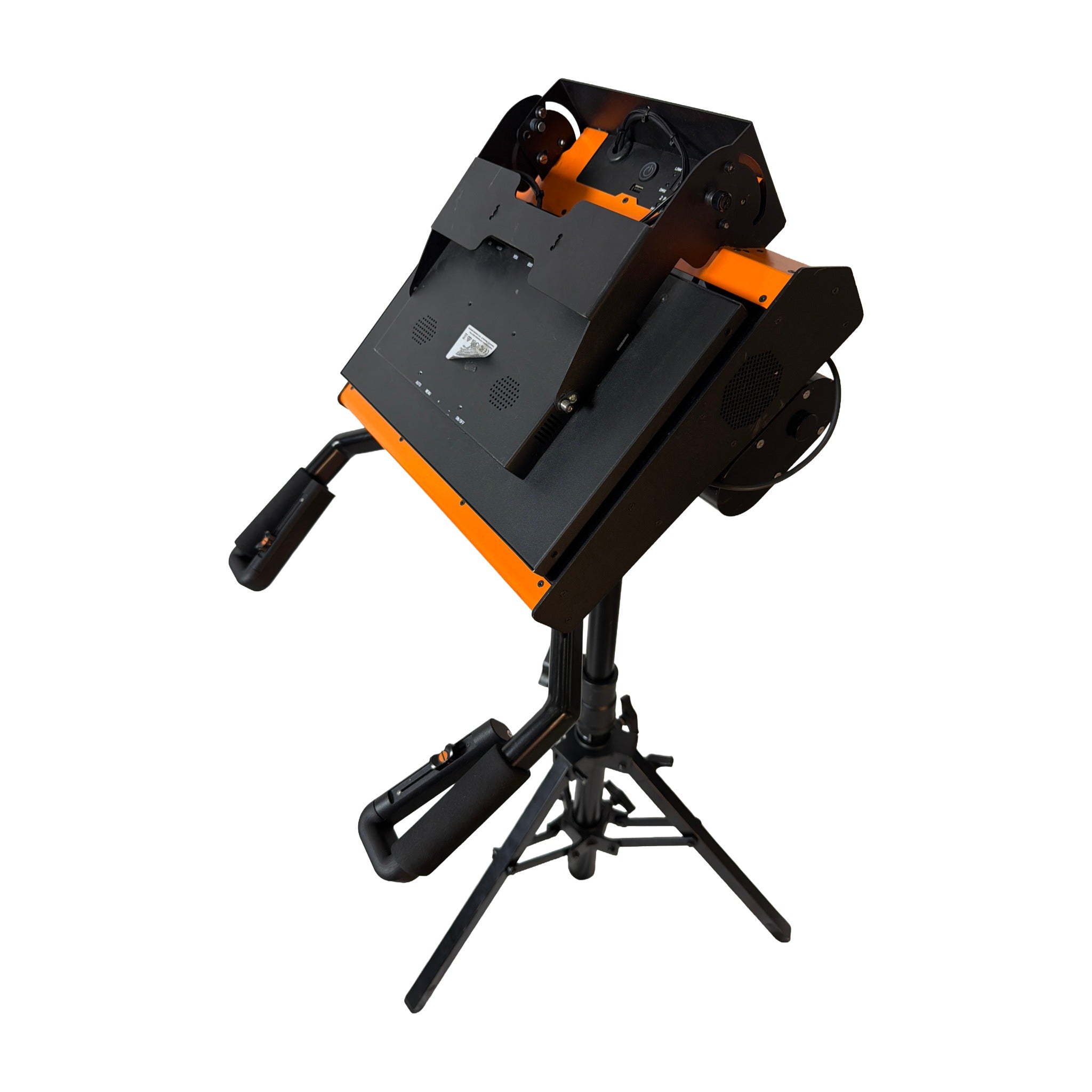

• Hands-on handlebar interface provides tactile pan and tilt control for natural performer tracking.
• Automatic attribute adjustment calculates focus, pan and tilt, dimmer, iris, and zoom settings.
• Manual override provides a practical backup response option during live operation.

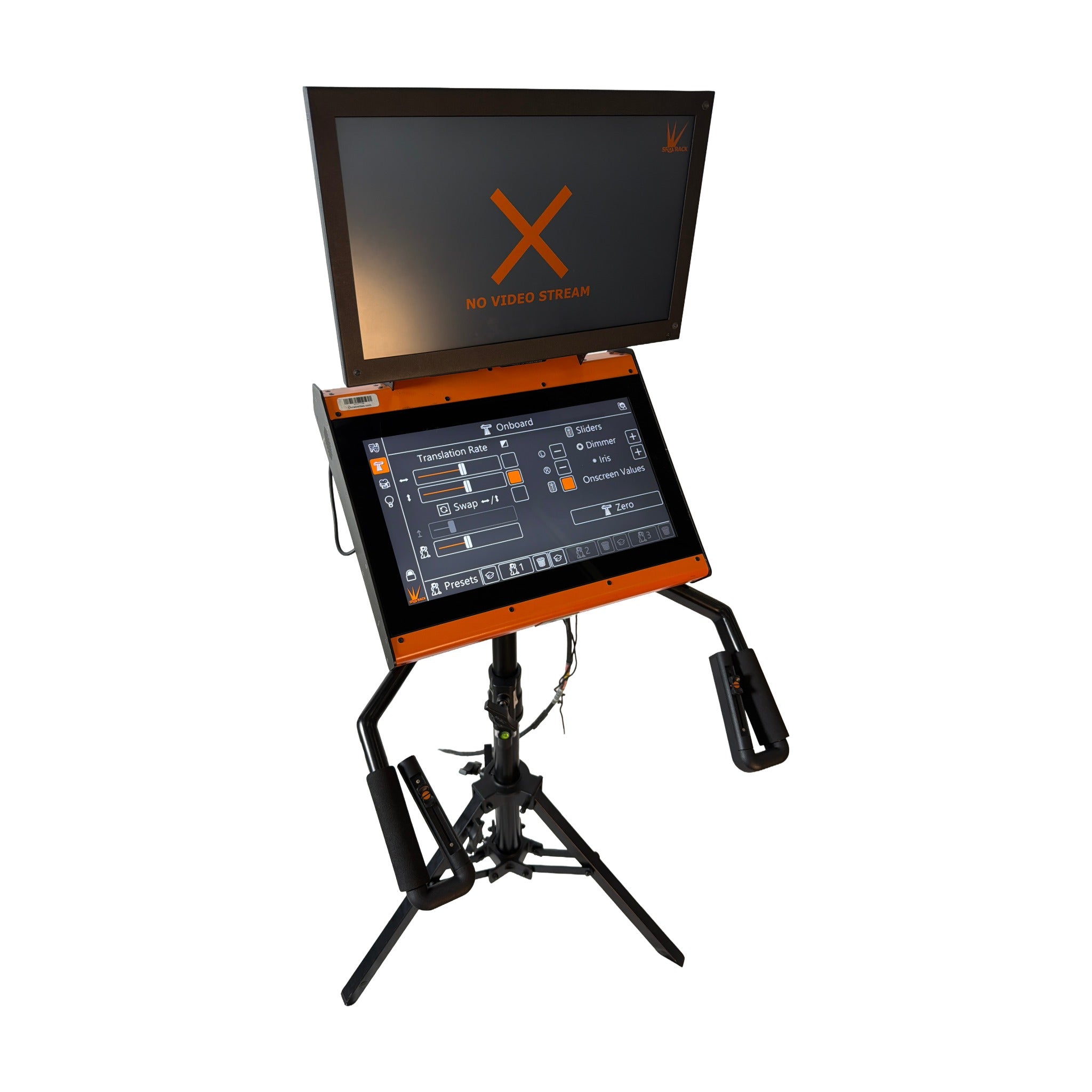

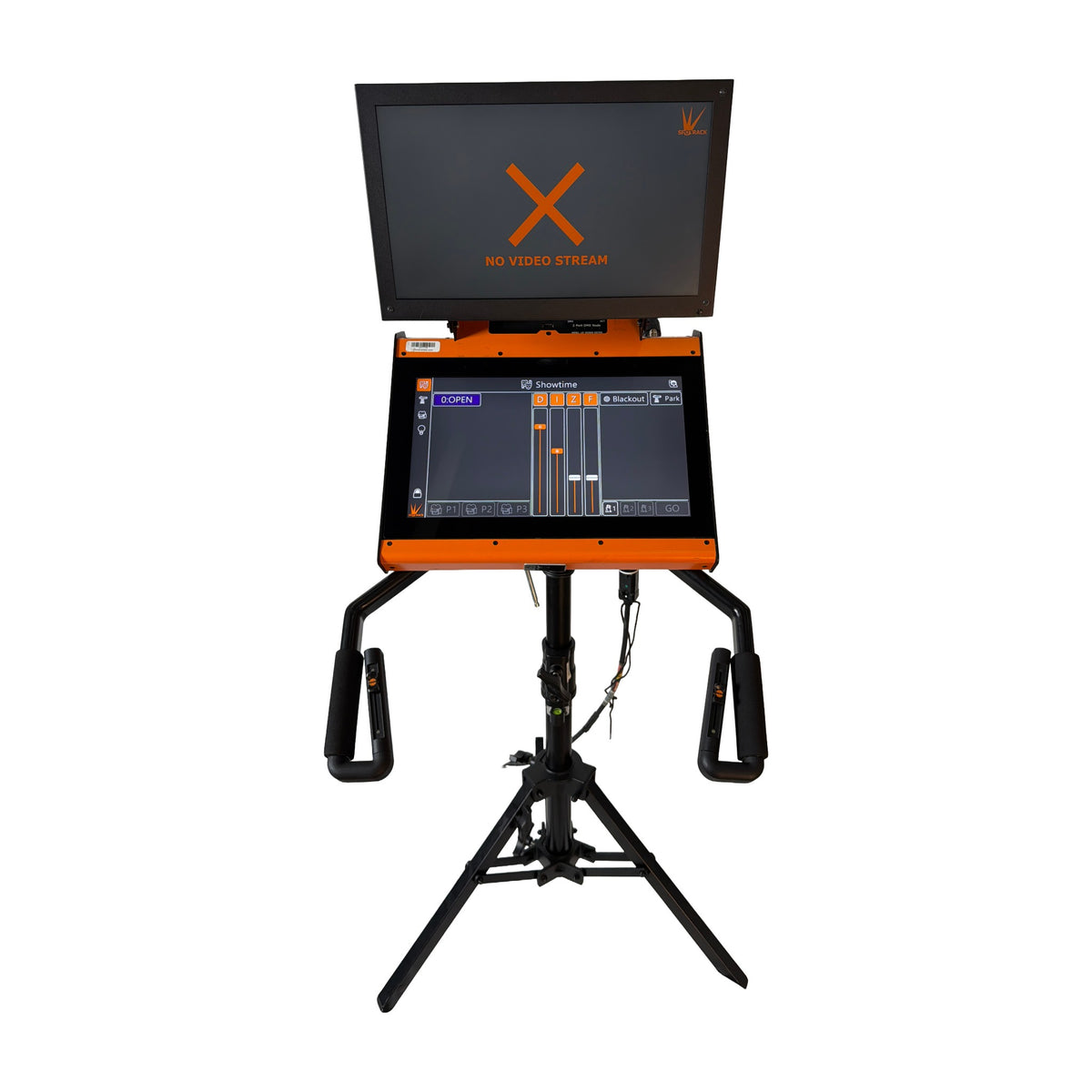

• Two 15.6" LCD displays support touchscreen control and real-time camera video monitoring.
• NDI and NDI HX optimized video pipeline supports low-latency video over the network.
• Compatible with DMX fixture brand/model, control console brand/model, control console OS, and sACN, Art-Net, and NDI networks.
• Available Green-GO integration supports production communication workflows.
• Hardwired Ethernet-based control, video, and comms reduce reliance on RF or IR wireless systems.

• Product Type: Follow spot control platform
• Control Capacity: Supports synchronized tracking of up to 8 lights / system
• Handlebar: 48-degree tilt by 360-degree pan w/ high-resolution encoders
• Control Display: 15.6" 10-point LCD touchscreen, full HD
• Video Display: 15.6" LCD, full HD
• Video Network: NDI
• Control Protocols: DMX, sACN, Art-Net, and NDI

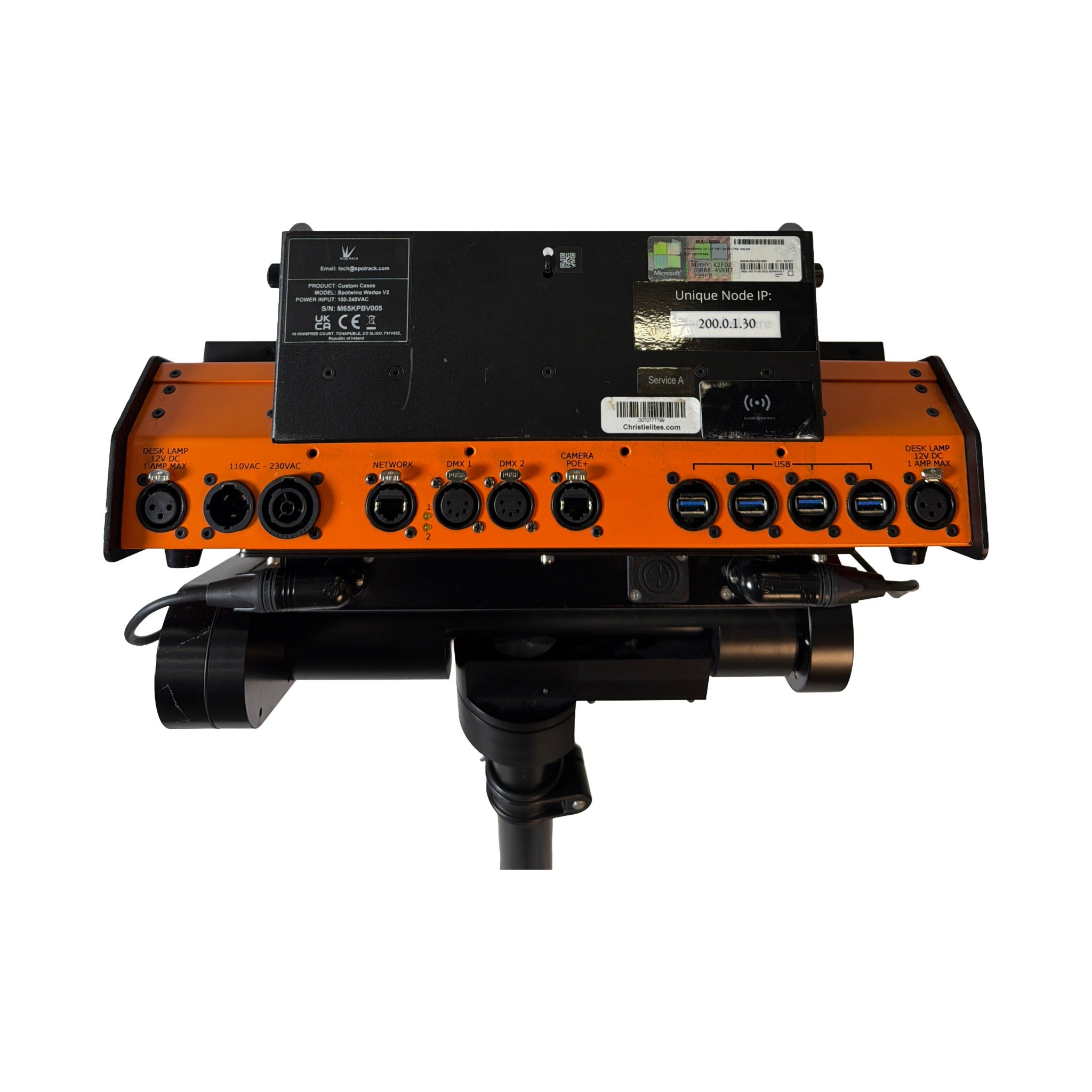

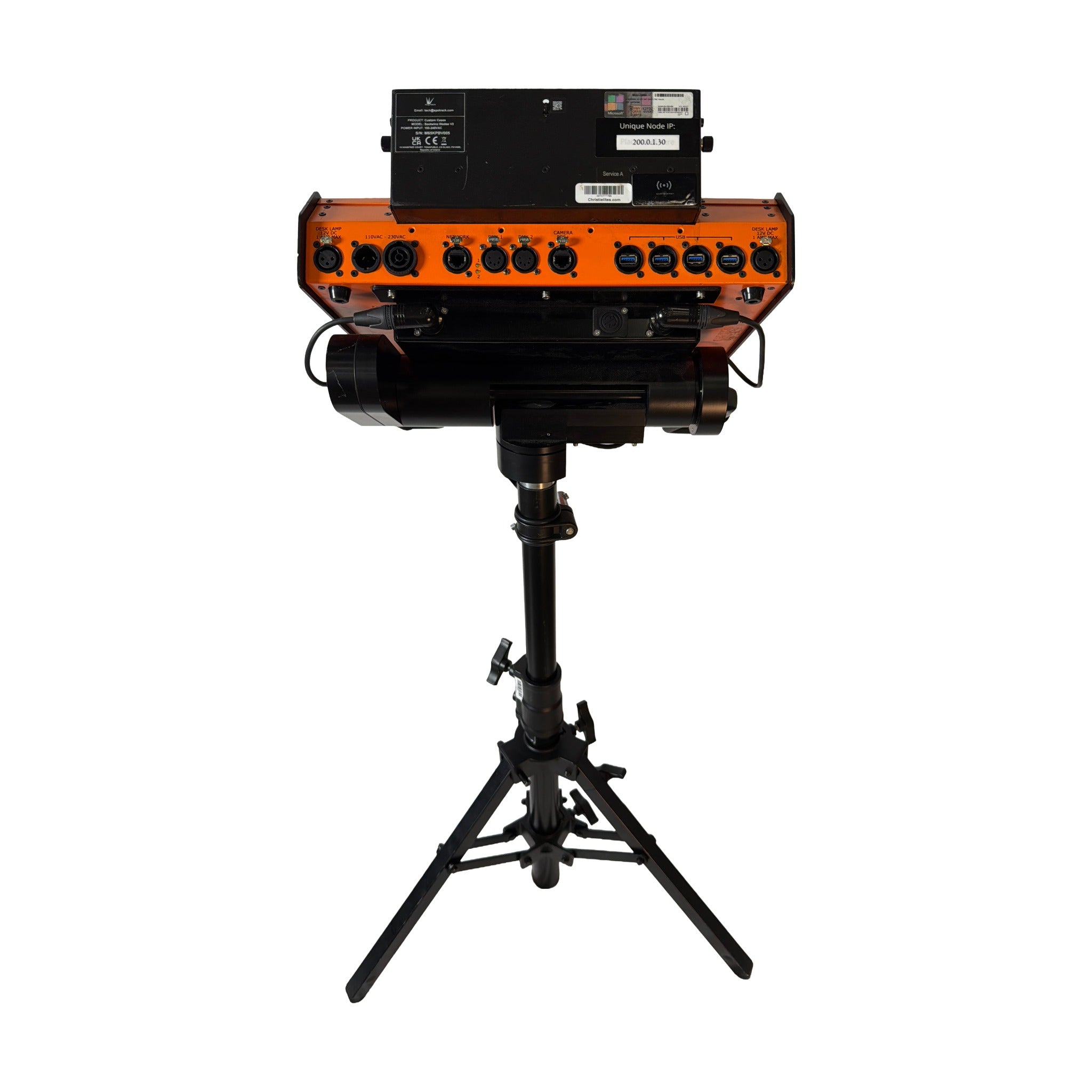

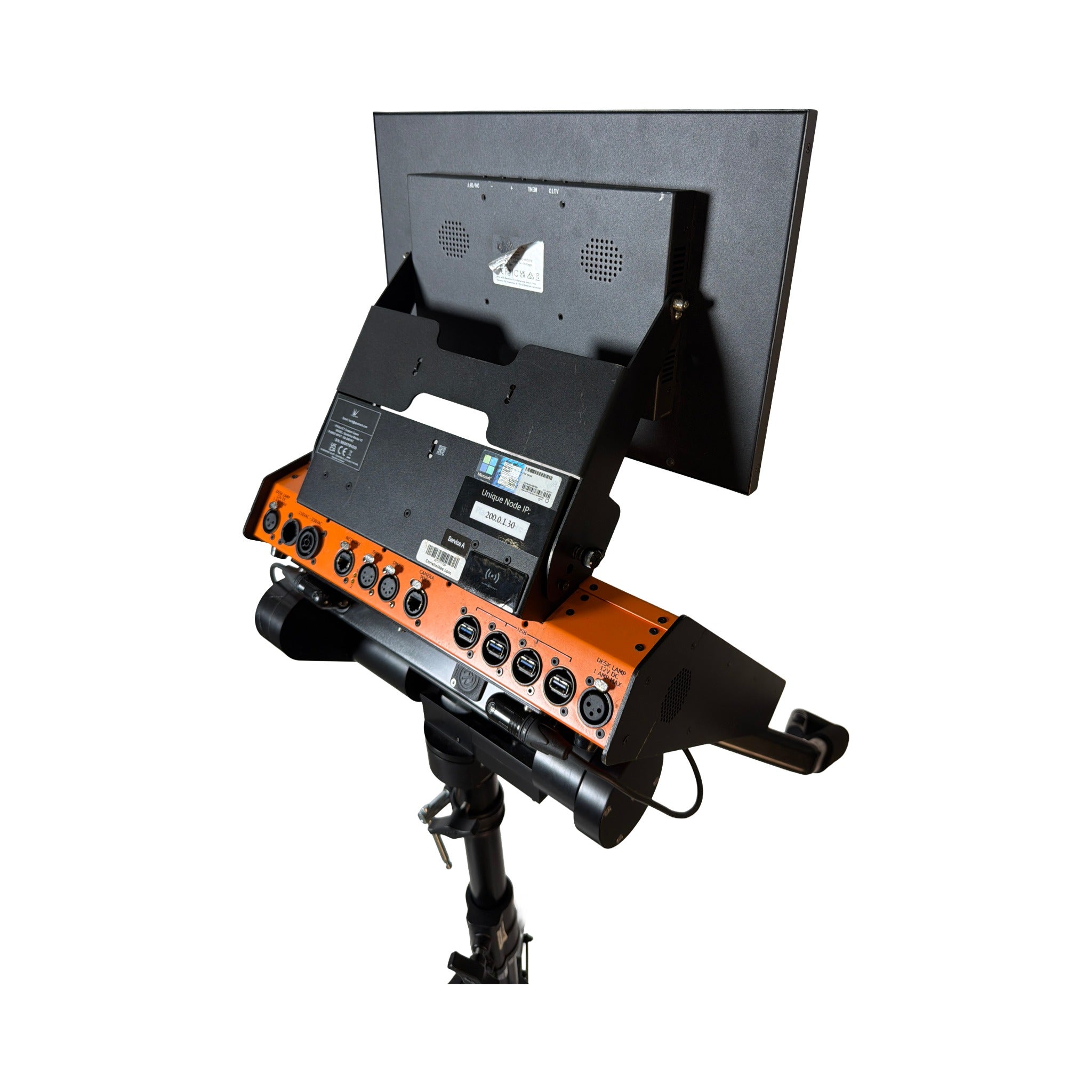

• Ports: Neutrik True 1 (100-240 VAC), XLR5 (DMX), RJ45 (Ethernet + NDI video), USB3 & 12V XLR3 (accessory)
• Power: 100 - 240V VAC
• Size: 40x37 cm (15.8x14.6 in)
• Weight: 20 kg (44 lbs)
• On Board Camera Mount Option: AIDA IP20 X20 or IP54 VF zoom PoE camera models. Fixture barrel mount.
• SpotCam Camera Enclosure Option: AIDA X20 zoom PoE camera. DMX controlled motorized pan/tilt yoke mount.
• Communication Options: PoE comms. House comms. AFIL Induction hearing loop interface.

Evolution V4 is built for concerts, touring productions, theaters, arenas, houses of worship, and broadcast environments that need flexible followspot-style control without placing operators in high, hot, or confined positions. It is ideal for productions using automated fixtures as key lights while maintaining responsive human performer tracking from a safe control location.
