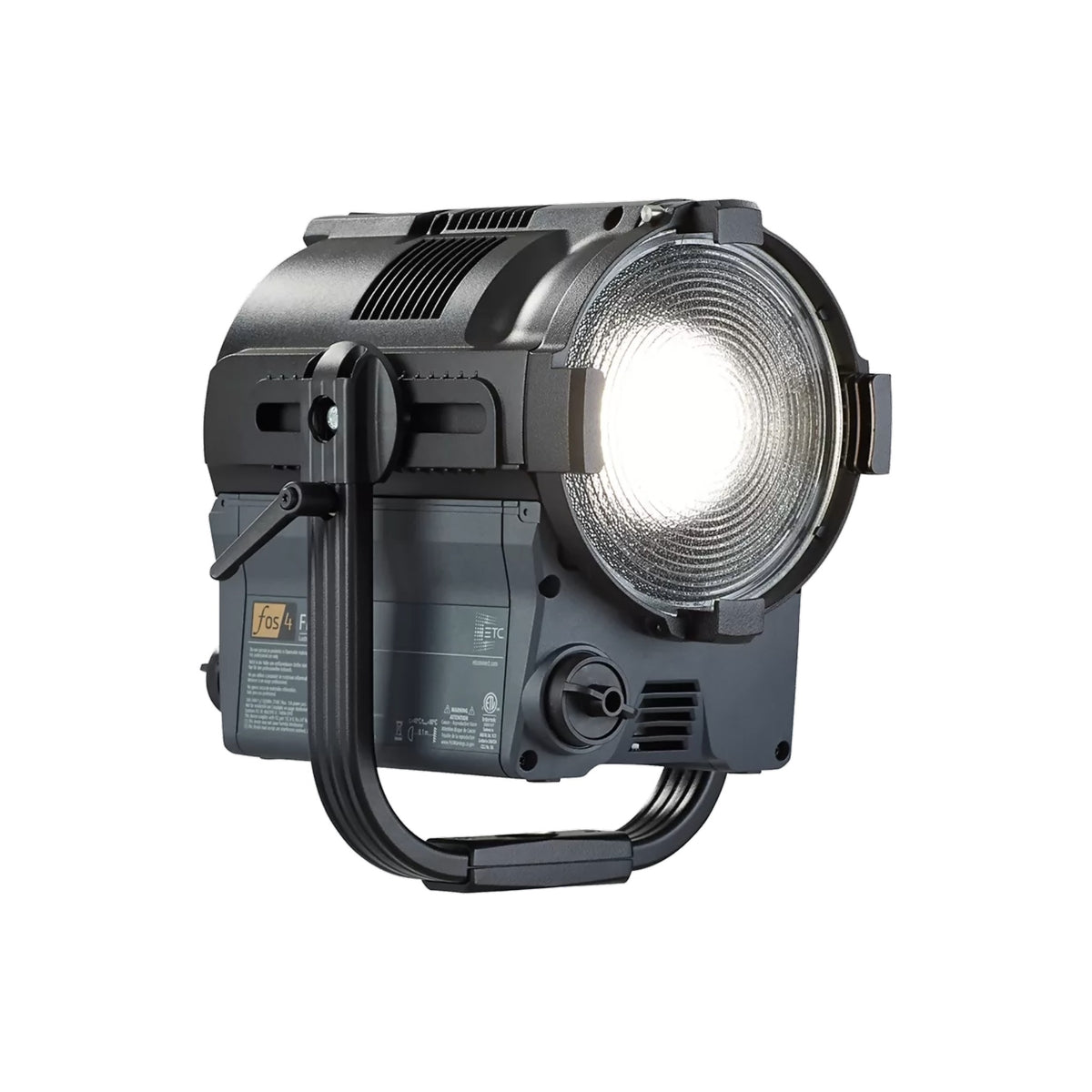

fos4 FRESNEL ETL 7 LUSTR FIXT (2-TONE)

GENERAL INFORMATION

Designed for the studio and film industry, fos/4 takes the most desired features of a standard incandescent Fresnel and adds in the nuanced color mixing, smooth fades, and LED technology of ETC’s other professional grade fixtures. With fos/4, you get a true Fresnel with an LED engine. With a 13–55 degree zoom, remarkable quality of light and brightness up to 9,700 lumens, you get the feature set and brightness you need for your shoot. With the addition of Deep Red LEDs, the Lustr X8 array pushes the boundaries of color rendering possibilities. The fos/4 series fixtures are made in the USA and backed by a 24/7/365 phone support guarantee – we’ll be there when you need us, regardless of time or day.

APPLICATIONS

• Television studios
• Location shoots
• Film sets

PRODUCT FEATURES

• Lustr X8 full color array
• 7 in glass Fresnel lens aperture
• Intuitive UI with color picker
• Up to 9,700 lumens
• Tunable CCT between 1900–10450 K
• NFC configuration
• Multiverse® wireless control

SOURCE

• LED details Lumileds LUXEON® C
• Max lumens Lustr X8: 7,406
• Lumens per watt Lustr X8: 41.7
• L70 rating (hours to 70% output) >54,000 hours

COLOR

• Colors used Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
• Color temperature range 1900–10450 K
• Calibrated array
• Red shift (selectable)

OPTICAL

• Beam angle range 13-55°
• Gate size N/A
• Aperture size 178 mm (7 in)
• Camera flicker control/Hz range - Flicker-free 20,000 Hz

CONTROL

• Input method 5-Pin XLR, Multiverse wireless and NFC
• Protocols DMX-512, RDM, City Theatrical Multiverse, NFC
• Modes (footprint) 5 modes (1–12 channels)
• RDM configuration
• UI type Full color display
• Local control
• Onboard presets (12)
• Onboard sequences - Yes
• Onboard effects - Yes (12)
• FixtureLink

WIRELESS

• Band 2.400–2.480 GHz
• Range 100 m indoors, 500 m line of sight (subject to conditions)
• Max receivers DMX: No limit
• RDM: Varies by transmitter used, Multiverse Show Baby®: 585, Multiverse Transmitter: 5,000
• Broadcast power 100 mW

ELECTRICAL

• Voltage range 100–240 VAC, 24–36 VDC
• (Note: Maximum fixture output may be reduced when powered by battery)
• Input method AC via Neutrik TRUE1 TOP, DC via 3-pin XLR
• Inrush (first half-cycle) 120 V: 46.6 A, 240 V: 110.2 A
• Fixtures per circuit on standard R20 breaker - 7 (link up to 6 via Power Thru connector)
• Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
• Wattage (Typical) 120 V: 177.7 / 219.8 W, 240 V: 172.9 / 219.9 W
• Current draw 120 V: 1.51 / 1.87 A, 240 V: 0.7 / 0.99 A

THERMAL

• Ambient operating temp 0°–40° C (32°–104° F)
• Fan (controllable)
• Droop compensation
• dB range 8.4–37.7 dBA
• BTUs/hour (120 V) 606

PHYSICAL

• Materials Cast and extruded aluminum
• Color options Two-tone (black and studio gray)
• Mounting options Yoke
• IP rating IP20
• Weight 11.1 kg (24.5 lb)
• Included accessories Yoke, laminated quick card, power cable and junior (28 mm) pin
