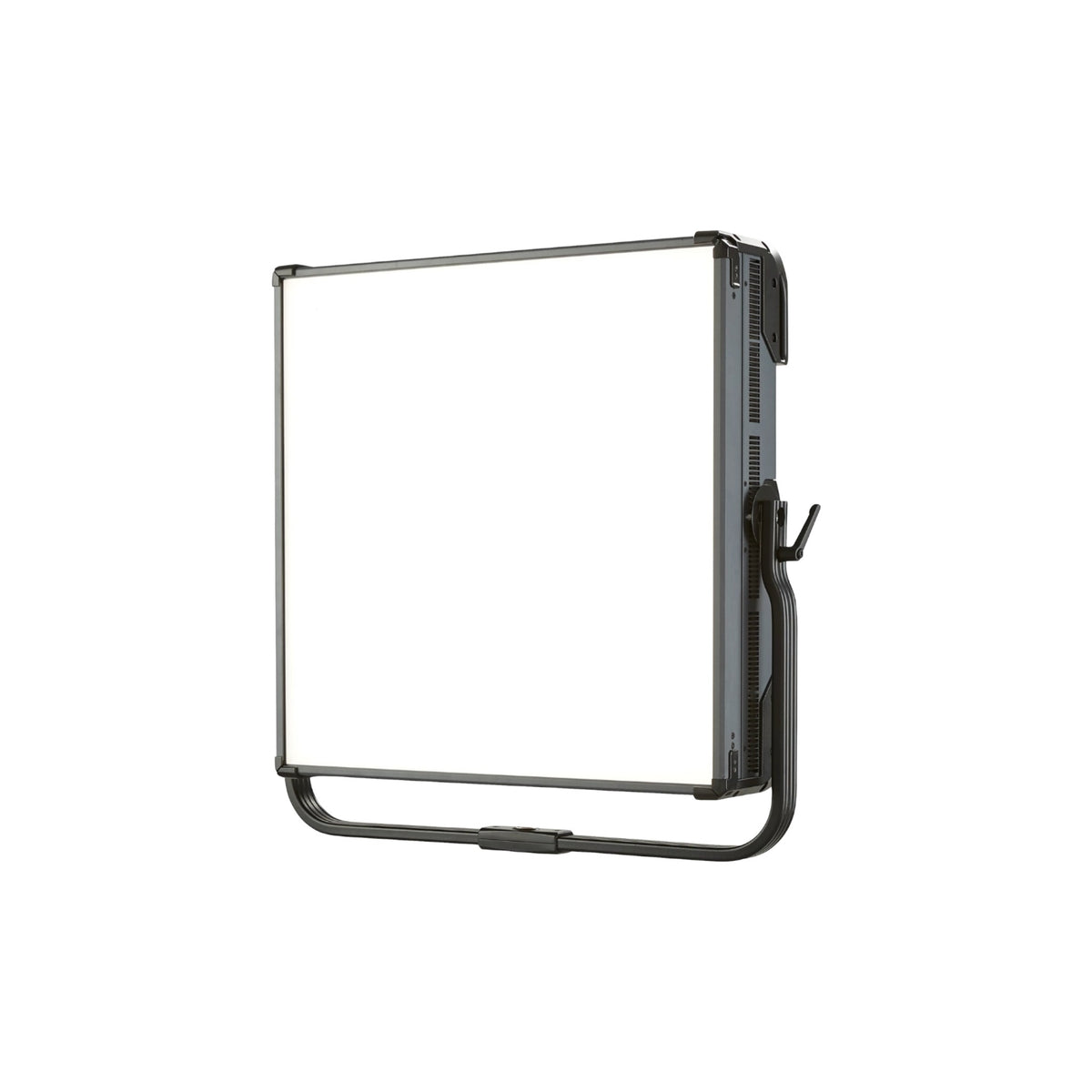

fos4 PANEL ETL 16 DAY CPU2 FIXT (2-TONE)

Overview

Over a decade of color research comes together in the fos/4 Panel. These fixtures were designed specifically for the studio and film industry, and take predictably nuanced color from reality to the camera to the screen.

With the fos/4 Panel available in three sizes and two arrays, you’ll never find yourself wishing for anything more. The fos/4 Panels are shockingly bright, but don’t sacrifice color quality. And with the addition of Deep Red LEDs, the Lustr X8 array pushes the boundaries of color rendering possibilities while the tunable Daylight HDR array gives new depth to your white light. The fos/4 series fixtures are made in the USA and backed by a 24/7/365 phone support guarantee – we’ll be there when you need us, regardless of time or day.

Applications

• Television studios
• Location shoots
• Film sets

Features

• Two array choices:
  • Lustr X8 full color array
  • Daylight HDR tunable white array
• Three sizes available
  • Small (8x24 in)
  • Medium (16x24 in)
  • Large (24x24 in)
• Intuitive UI with color picker
• Up to 62,000 lumens
• Select CCT between 1900–10450 K
• NFC configuration
• Multiverse® wireless control
• Standard 5/10 year LED fixture warranty

Specifications

Source

• LED details: Lumileds LUXEON® C
• Max lumens: 20,569/41,058/61,587
• Lumens per watt(5600 K):5/52.4/52.0
• L70 rating (hours to 70% output)*: >54,000 hours

Color

• Colors used:
  • Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
  • Daylight HDR: Deep Red, Red, Mint, Cyan, Blue, Indigo
• Color temperature range: 1900–10450 K
• Calibrated array: Yes
• Red shift: Yes (selectable)
