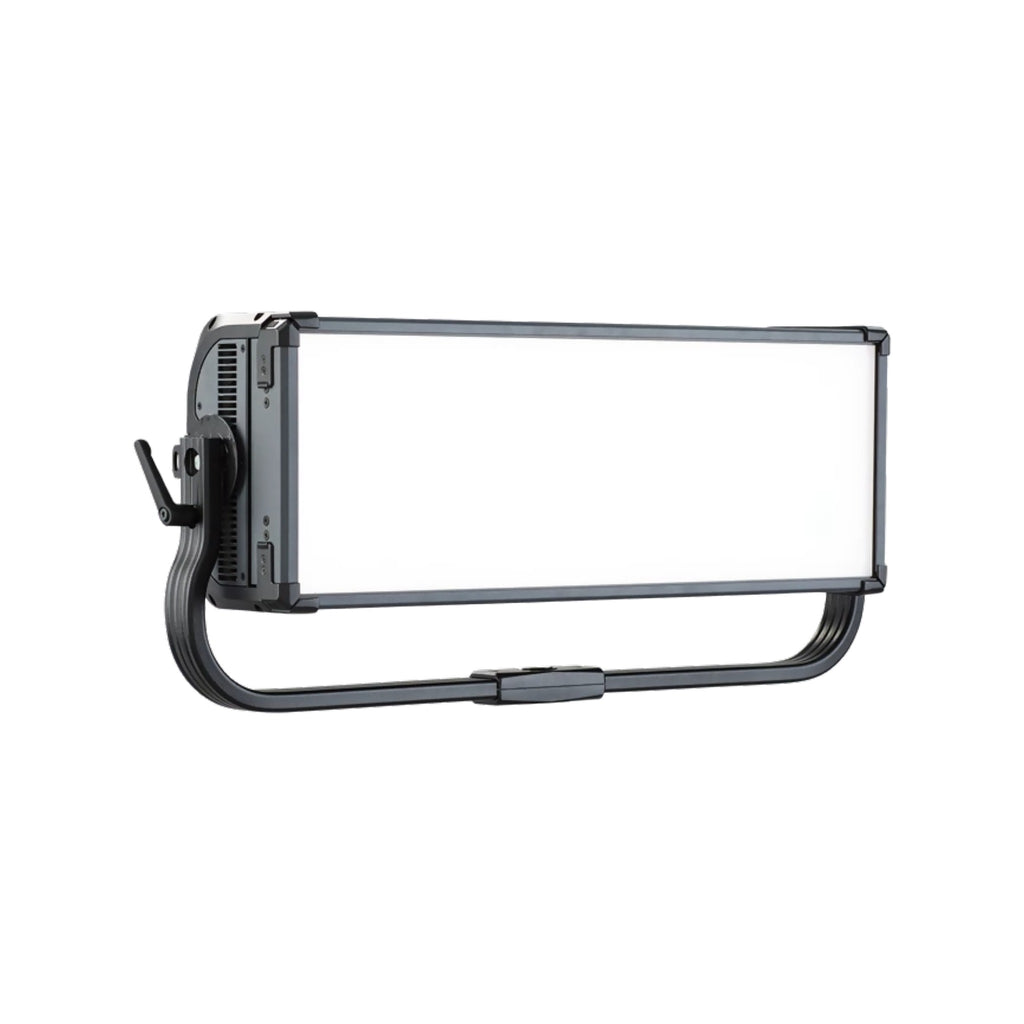

fos4 PANEL ETL 8 LUSTR CPU2 FIXT(2-TONE)

GENERAL INFORMATION

Over a decade of color research comes together in the fos/4 Panel. These fixtures were designed specifically for the studio and film industry, and take predictably nuanced color from reality to the camera to the screen.

With the fos/4 Panel available in three sizes and two arrays, you’ll never find yourself wishing for anything more. The fos/4 Panels are shockingly bright, but don’t sacrifice color quality. And with the addition of Deep Red LEDs, the Lustr X8 array pushes the boundaries of color rendering possibilities while the tunable Daylight HDR array gives new depth to your white light. The fos/4 series fixtures are made in the USA and backed by a 24/7/365 phone support guarantee – we’ll be there when you need us, regardless of time or day.

APPLICATIONS

• Television studios
• Location shoots
• Film sets

PRODUCT FEATURES

• Lustr X8 full color array
• Small (8x24 in)
• Intuitive UI with color picker
• Up to 62,000 lumens
• Select CCT between 1900–10450 K
• NFC configuration
• Multiverse® wireless control

SOURCE

• LED details Lumileds LUXEON® C
• Max lumens (5600 K) 41,058
• Lumens per watt (5600 K) 52.0
• L70 rating (hours to 70% output) >54,000 hours

COLOR

• Colors used Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
• Color temperature range 1900–10450 K
• Calibrated array
• Red shift (selectable)

OPTICAL

• Beam angle range 108° native with standard diffusion
• Aperture size 203x610 mm (8x24 in)
• Camera flicker control/Hz range Flicker-free 20,000 Hz

CONTROL

• Input method 5-Pin XLR, Multiverse wireless and NFC
• Protocols DMX-512, RDM, City Theatrical Multiverse, NFC
• Modes (footprint) 5 modes (1–12 channels)
• RDM configuration
• UI type Full color display
• Local control
• Onboard presets (12)
• Onboard sequences
• Onboard effects (12)
• Fixture-to-fixture control

WIRELESS

• Band 2.400-2.480 GHz
• Range 100 m indoors, 500 m line of sight (subject to conditions)
• Max receivers DMX: No limit
• RDM: Varies by transmitter used Multiverse SHoW Baby®: 585 Multiverse Transmitter: 5,000
• Broadcast power 100 Mw

ELECTRICAL

• Voltage range 100–240 VAC, 24–36 VDC (battery input for the small and medium only)
• Input method AC via Neutrik TRUE1 TOP DC via 3-pin XLR Note: Small and medium models include power pass-thru.
• Inrush (first half-cycle) 120V: 33.4 A, 240V: 57.0 A
• Fixtures per circuit on standard R20 breaker 2
• Note: TRUE1 connector rated for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz).
• Wattage (Typical) 120V: 475 W, 230V: 465 W
• Current draw 120V: 4.0 A, 230V: 2.1 A

THERMAL

• Ambient operating temp 0°–40° C (32°–104° F)
• Fan (controllable)
• Droop compensation
• dB range 22.4 dBA
• BTUs/hour (120 V) 1,620

PHYSICAL

• Materials Cast and extruded aluminum
• Color options Two-tone (black and studio gray)
• Mounting options Yoke or Griprail (M6 standard T-nut)
• IP rating IP20
• Weight Small: 14.5 kg (32 lb)
• Included accessories Yoke, standard diffusion, laminated quick card, power cable and junior (28 mm) pin

AVAILABLE ACCESSORIES (sold separately):

• Diffusion:
• Light
• Heavy
• Intensifier
• Barn Door
• Egg Crates:
• 40°
• 50°
• 60°
• Chimera Pop Bank
