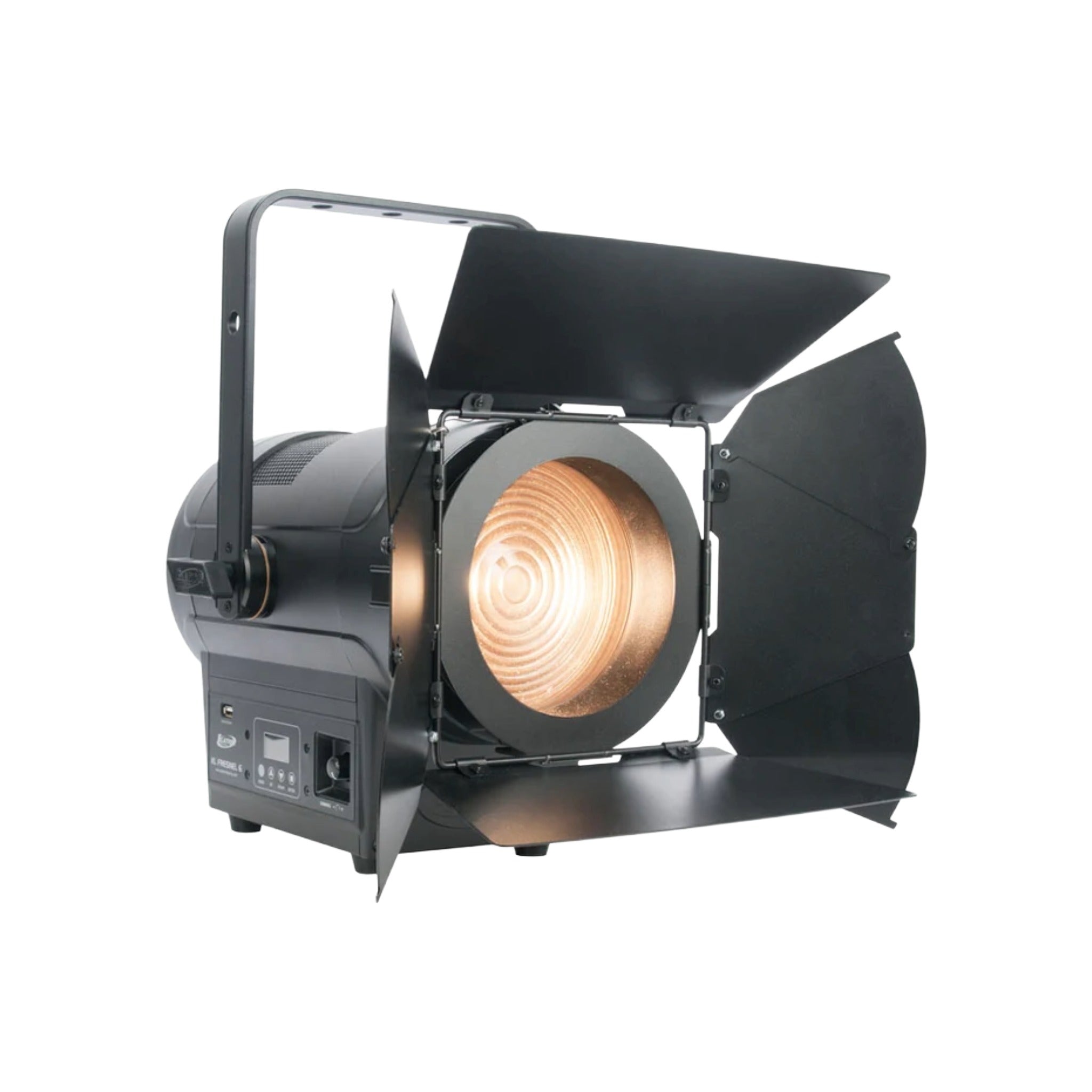

KL Fresnel 6 WW

The KL FRESNEL 6 is a professional 6? warm-white LED Fresnel fixture that replicates the output of traditional halogen units while delivering modern LED efficiency and advanced control. Designed for theatre, film, broadcast, and live production, it offers silent operation, high-CRI performance and manual zoom flexibility in a rugged, compact housing.

• Warm-white LED engine with high CRI for natural colour rendering
• Manual zoom range of 15° to 38° for precise beam control
• Flicker-free output optimised for film and broadcast applications
• Selectable dimming curves and 16-bit resolution for smooth fades
• DMX and RDM support for versatile remote control integration
• Silent, fan-free operation ideal for noise-sensitive environments
• Includes barn doors, gel frame, and multi-position yoke
• 3-/5-pin DMX with RDM support; locking power in/out connectors (IP65-rated cables; fixture rated IP30)

• LED Engine: 150 W, 3,000 K, >95 CRI
• Output: 6,500+ lumens
• Zoom Range: 15°–38° (Beam 15.5°; Field 23.4°–51.8°)
• Photometric Data: 17,829 lux @ 2 m (min zoom/full on); 4,412 lux @ 2 m (max zoom/full on)
• Dimensions (L × W × H): 498.5 × 273 × 393 mm (19.62? × 10.75? × 15.47?)
• Weight: 8.4 kg (18.5 lbs)
• Electrical: 100-240 V AC, 50/60 Hz; Max power: 180 W
• Power Linking: 6 units @ 110 V / 14 units @ 240 V
• Operating Temperature: –15 °C to +45 °C (5 °F to 113 °F)
• Control / Connections: 3-/5-pin DMX with RDM support; locking power in/out connector
• IP Rating: IP30 (indoor use only)
• Approvals: CE, cETLus

Perfect for studio, stage and event applications that require compact form, quiet operation and high-fidelity white light. The KL FRESNEL 6 performs as a key light, fill or general wash in theatrical, broadcast and professional production settings.
