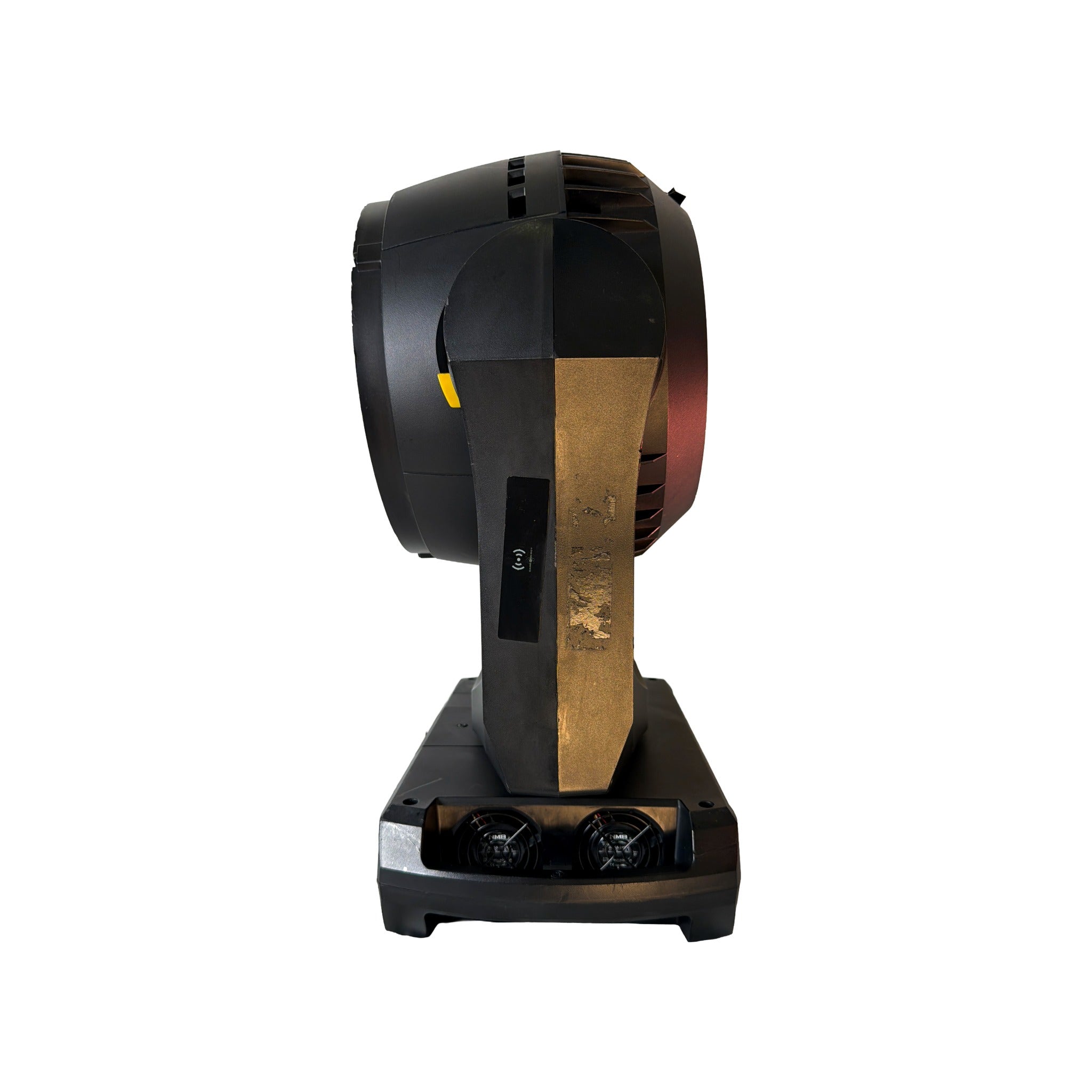

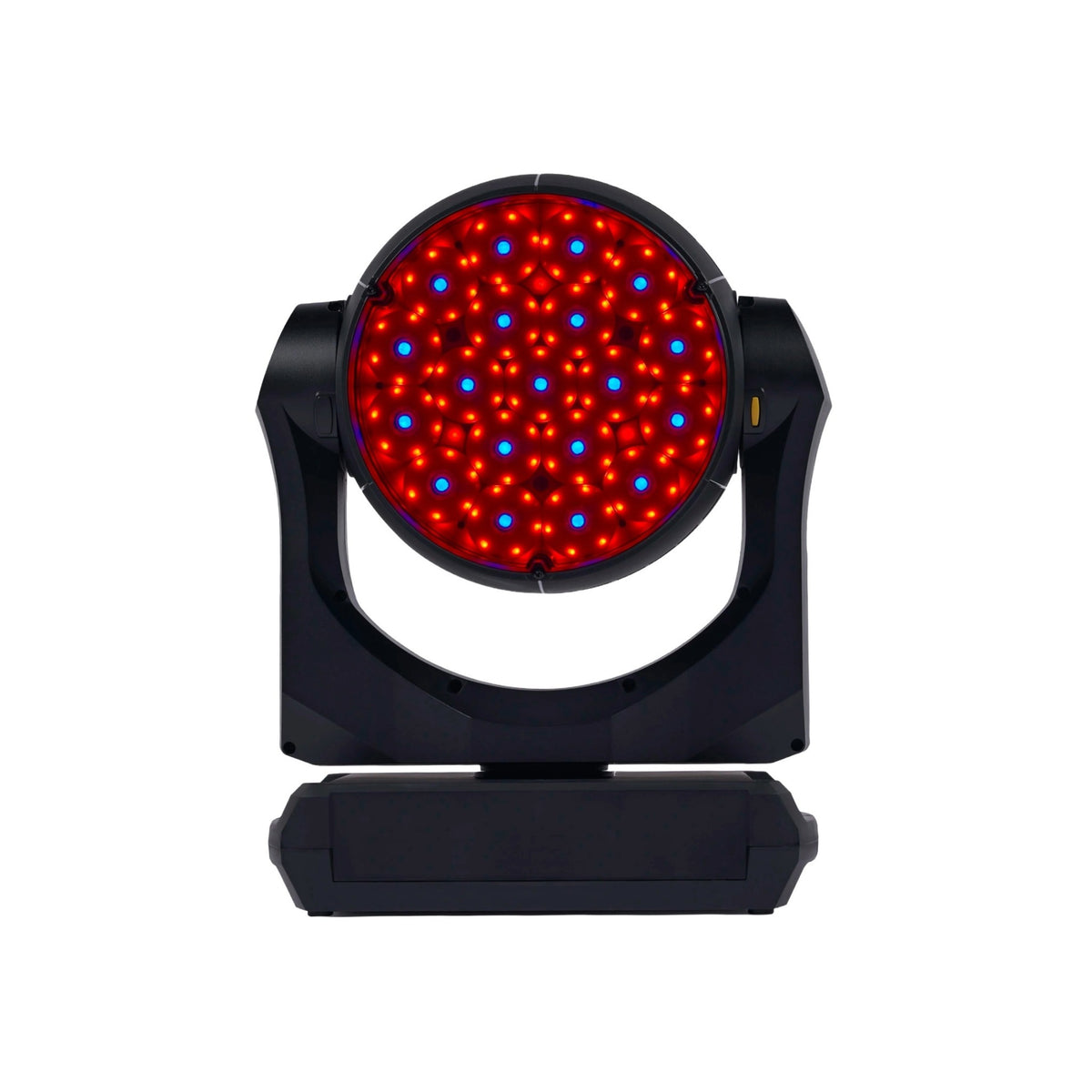

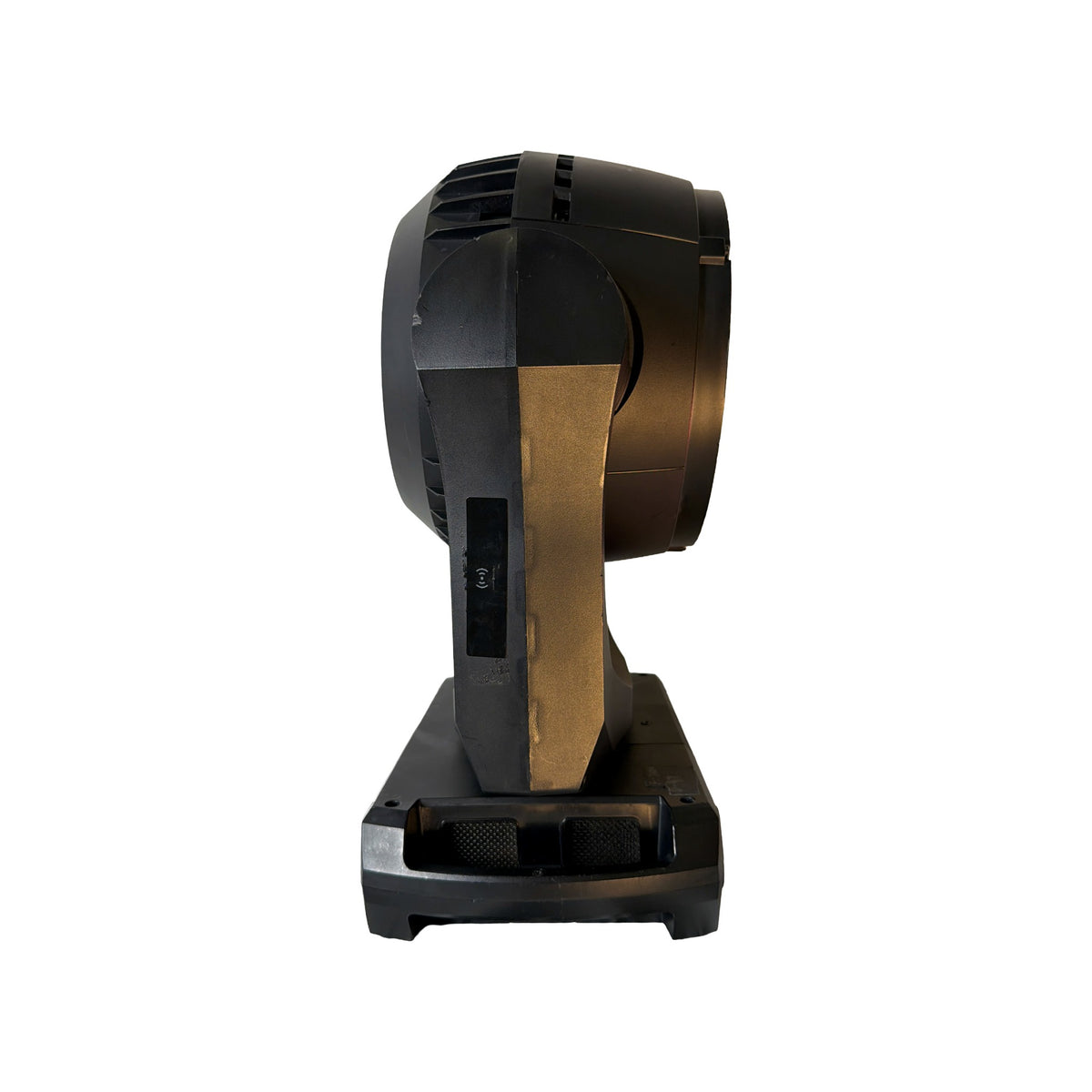

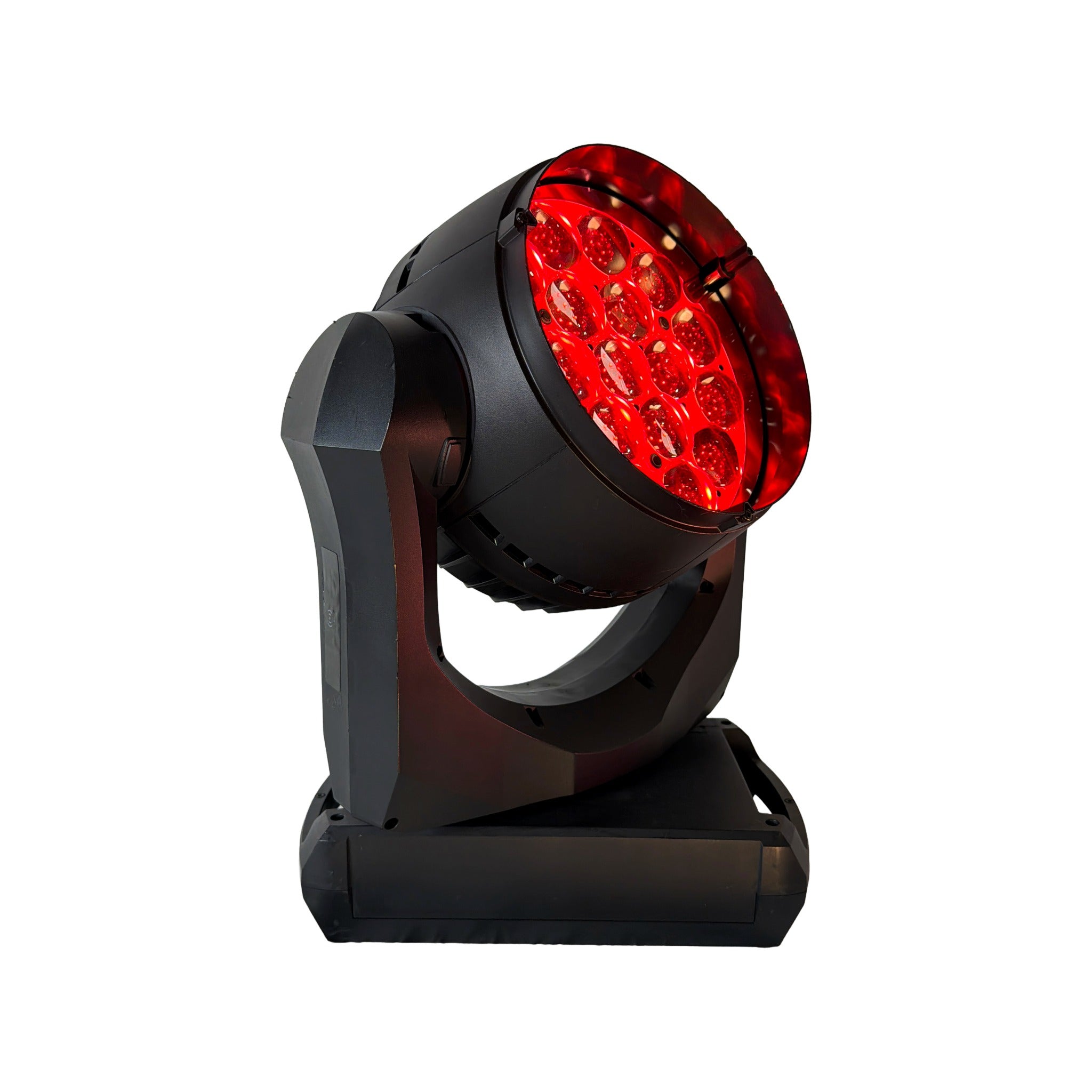

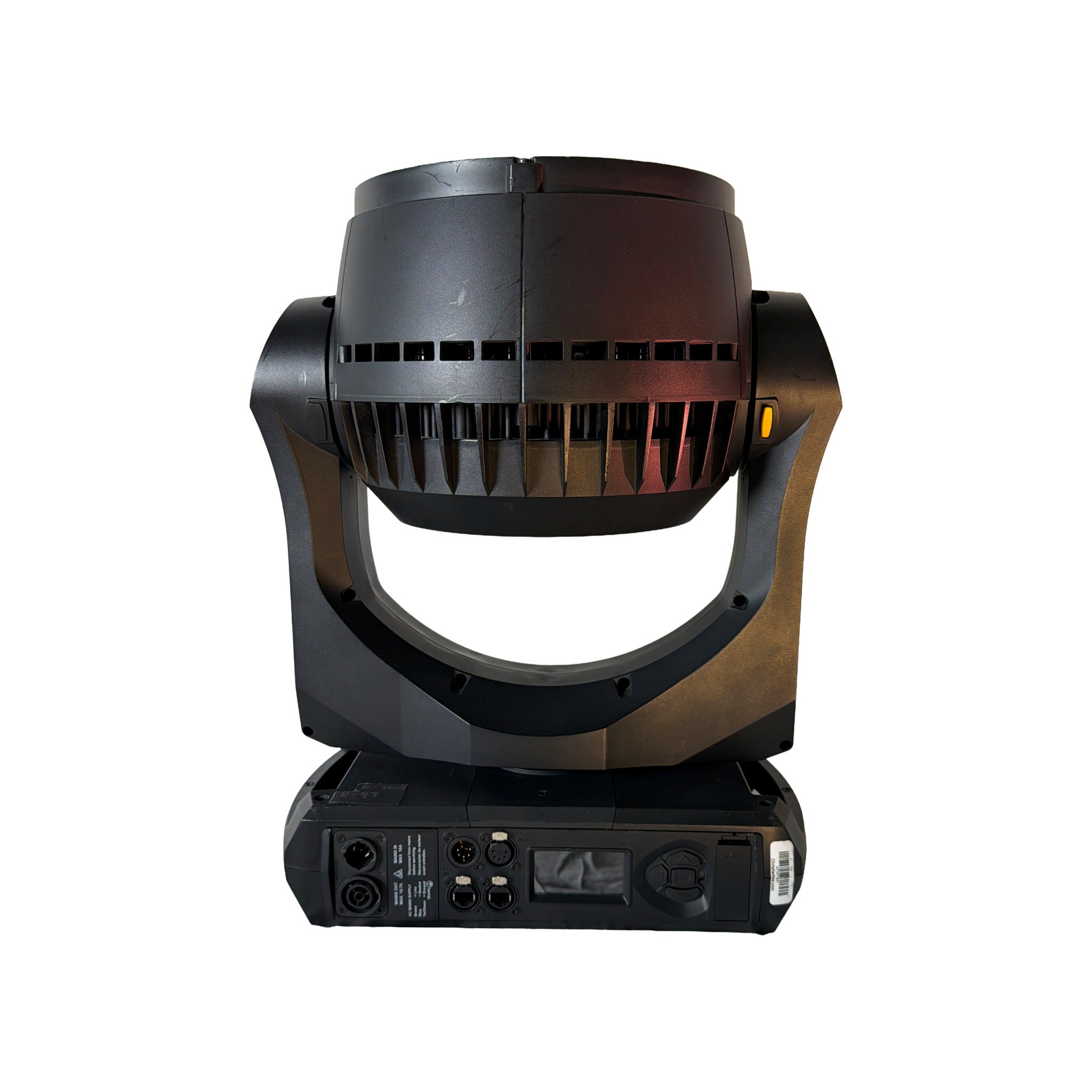

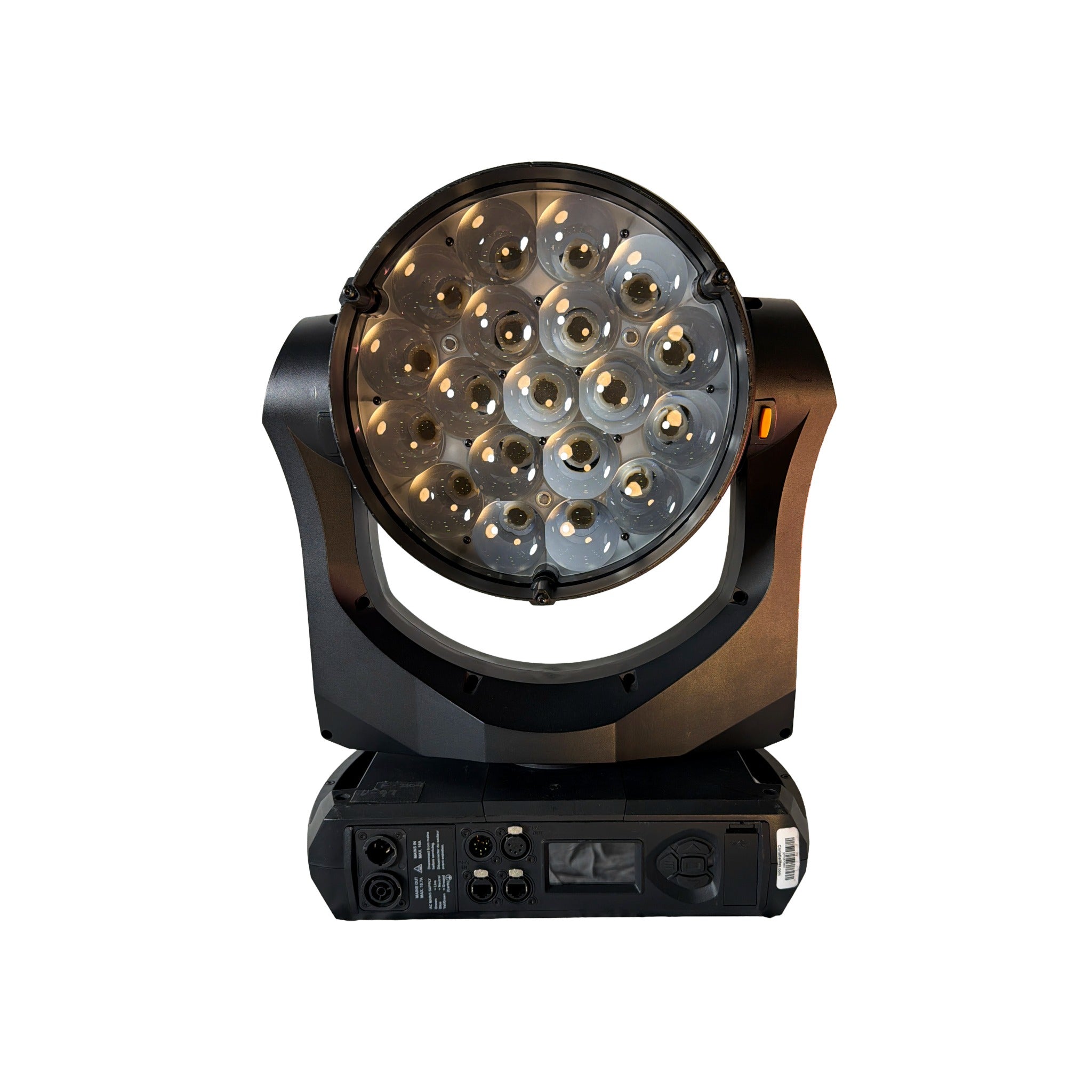

MAC Aura PXL

The Martin MAC Aura PXL is a compact LED wash moving head built for touring, broadcast, live events, and high-end installation work. Expanding on the MAC Aura family, it delivers a brighter, tighter beam, a cleaner front-face appearance, and Martin's signature Aura backlight look. With individual control of both beam and Aura pixels plus support for DMX, Art-Net, sACN, RDM over Art-Net, and Martin P3, it is designed for designers who want strong wash performance, striking mid-air looks, and creative video-style effects from a single fixture.

• High-output RGBW wash fixture with a tighter beam, broad wash coverage, and a visually clean multi-lens design.
• Independent pixel control across 19 main beam pixels and 141 Aura backlight pixels for layered effects and detailed programming.
• Martin Aura backlight technology delivers eye-catching face visuals and smooth wide wash fields.
• Motorized zoom supports everything from concentrated mid-air beams to wide stage washes.
• More than 150 built-in FX macros with foreground color, background color, speed, and direction control.
• P3 video mapping and P3 Mix enable crossfades between video content and DMX looks.
• Fully calibrated with Martin's Full Gamut Color Calibration for consistent color performance.
• Flicker-free operation and adjustable LED driver frequency make it suitable for demanding camera applications.
• Ultra-quiet cooling and low-noise operation support theater, broadcast, and other noise-sensitive environments.
• Battery-powered control panel, RDM support, and Ethernet thru simplify setup in rental and production workflows.

• Fixture type: LED wash moving head with pixelated beam and Aura backlight
• Fixture luminous output wide: 10,500 lumens
• Fixture luminous output narrow: 8,500 lumens
• Peak luminous intensity narrow: 940,000 cd
• Beam light source: 19 x 40 W RGBW LED
• Aura light source: 141 x 0.3 W RGB LED
• Beam / field angle: 6° - 40° beam; 7° - 59° field
• Zoom range: 1:8
• Color mixing: RGBW color mixing with Beam RGB(W) and Aura RGB control
• Color temperature control: Variable 2,000 - 10,000 K
• Beam pixel control: individual RGB control of each of the 19 Beam pixels
• Aura pixel control: individual RGB control of each of the 141 Aura pixels
• Built-in effects: More than 150 built-in FX macros
• Pan: Motorized 540°
• Tilt: Motorized 268°
• Control protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3
• DMX modes: Compact, Basic, Extended, Ludicrous & Compact Direct
• DMX channels: 17, 32, 89, 512 & 17
• Connections: Neutrik powerCON TRUE1 power in/thru, Neutrik 5-pin locking XLR DMX/RDM in/thru, Neutrik etherCON Ethernet in/thru, USB 2.0 type A
• LED refresh rates: Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode (DMX controllable); Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode (DMX controllable)
• Cooling: Forced air (temperature regulated, low noise, user-definable levels)
• Sound pressure level: 32.6 dB(A) @ 1 m (default regulated fan mode)
• Sound pressure level: 24.6 dB(A) @ 1 m (constant fan mode ultra low)
• IP rating: IP 20
• AC power: 100-240 V AC nominal, 50/60 Hz
• Power consumption: Maximum: 560 W; Typical: 500 W; Idle: 81 W; Hibernation: 37 W
• Width (across yoke): 410 mm (16.14 in.)
• Width (base): 385 mm (15.16 in.)
• Height (head forward): 516 mm (20.31 in.)
• Height (maximum): 544 mm (21.42 in.)
• Depth (head): 216 mm (8.50 in.)
• Depth (base): 232 mm (9.13 in.)
• Minimum center-to-center distance in side-by-side installation: 420 mm (17 in.)
• Weight: 15.60 kg (34.39 lbs)

The MAC Aura PXL is a strong fit for concert touring, television production, corporate events, and premium nightclub installations where designers need a compact fixture that can deliver punchy beams, smooth washes, and eye-catching pixel effects. Its quiet operation, camera-friendly performance, and flexible control options also make it well suited for broadcast studios, theater environments, and cross-rental inventories.
