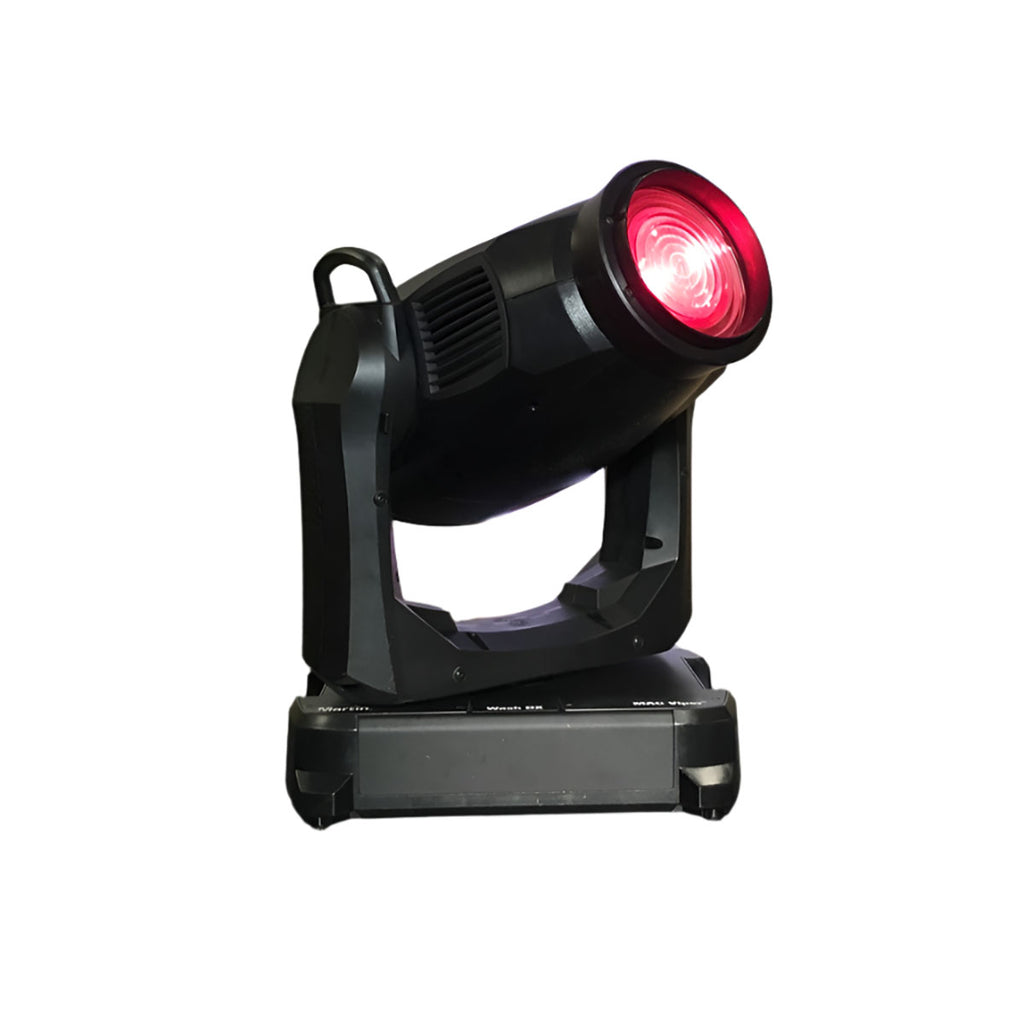

MAC Viper Wash DX Moving Light

The Martin MAC Viper Wash DX is a high-output discharge wash moving head designed for precise stage, scenery, and performer illumination. Its internal barndoor system, wide zoom range, CMY color mixing, and variable CTO provide flexible beam shaping and color control for professional productions.

• Internal barndoor system provides precise beam shaping without external accessories
• High-output wash performance with a uniform field and smooth zoom transitions
• CMY color mixing, variable CTO, and a seven-slot color wheel expand creative color options
• Fast motorized zoom supports tight beams and broad stage coverage
• Mechanical dimmer, shutter, iris, strobe, and pulse effects support dynamic programming
• Absolute position monitoring maintains accurate pan and tilt placement

• Product Type: Discharge wash moving head with internal barndoors
• Light Source: 1000 W short-arc discharge lamp
• Output: 33,000 lm
• Color Temperature: 3,200 - 6,000 K
• CRI: >85
• Zoom Range: 13.5° - 59° (1:5)
• Color Mixing: CMY, independently variable 0 - 100%
• Color Temperature Control: CTO, variable 6000 - 3200 K
• Color Wheel: 7 interchangeable dichroic filters plus open, indexing, continuous rotation, random color
• Beam Shaping: Internal barn doors, continuously variable opening, indexed rotation
• Iris: 0 - 100%, pulse effects
• Mechanical Dimmer/Shutter: 0 - 100% continuous dimming, variable and random strobe and pulse effects, instant open and blackout
• Dimming Options: Choice of four dimming curves
• Pan: 540°
• Tilt: 268°
• Position Correction: Absolute position monitoring
• Control Protocols: DMX and RDM
• DMX Channels: 18/24
• DMX and RDM Connections: 5-pin locking XLR input and output
• AC Power Input: Neutrik PowerCon
• AC Power: 120-240 V AC nominal, 50/60 Hz
• Typical Power Consumption: 1225 W
• Cooling: Filtered forced air, temperature-regulated, low noise
• Protection Rating: IP20
• Dimensions: 472 mm (18.6 in.) base length, 473 mm (18.6 in.) width, 749 mm (29.5 in.) maximum height
• Weight: 34.1 kg (75.2 lbs.)

Ideal for concert touring, theatrical productions, production rental, broadcast studios, houses of worship, corporate events, television sets, and live entertainment applications requiring high-output wash lighting and precise beam shaping.
