Quarter Ton CM Single Brake Motor 60 ft lift

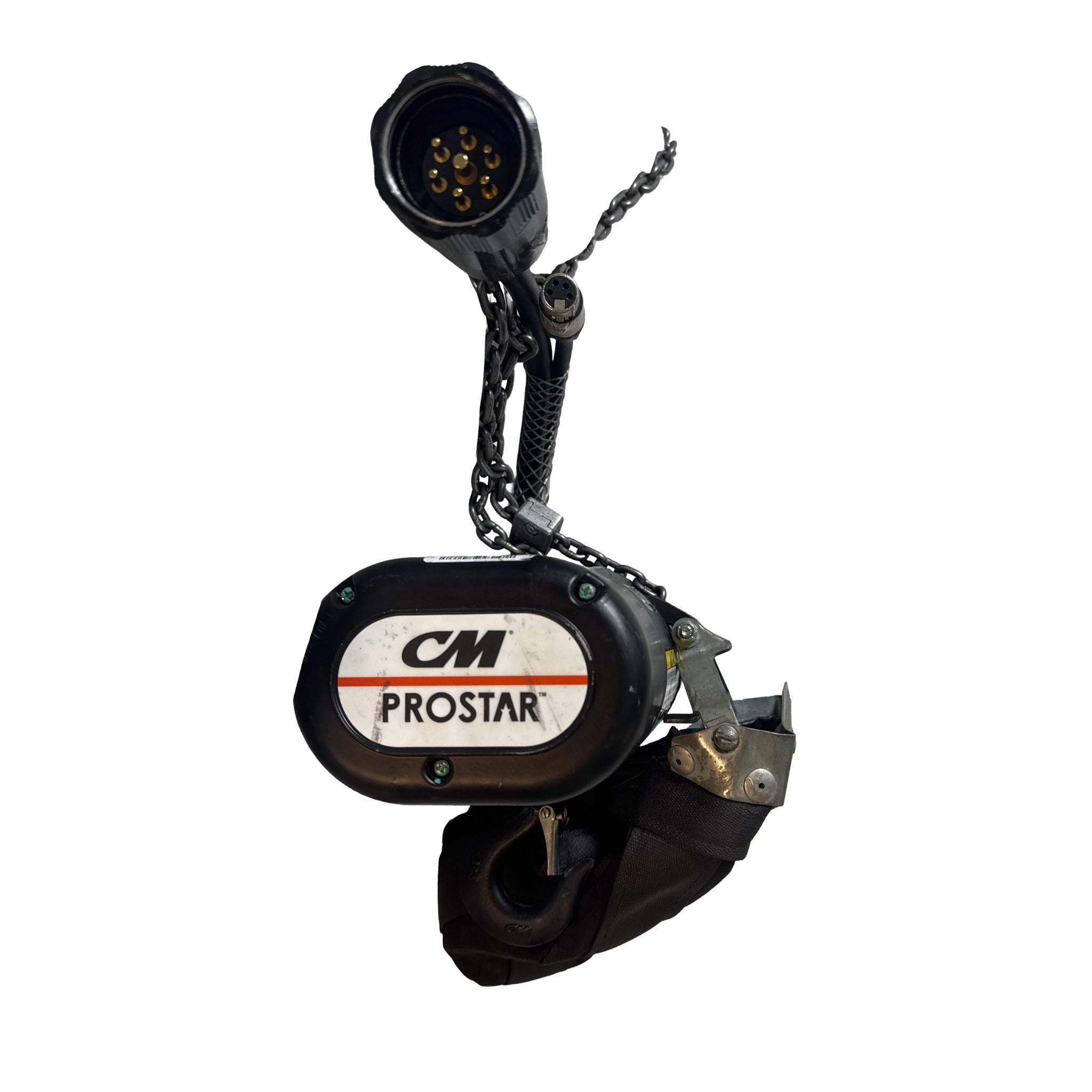

The CM ET Prostar 2127CF is a compact single-reeving electric chain hoist built for professional entertainment and production rigging. Rated for 500 lb / 1/4 ton with a 60 ft lift and 230-3-50/60 operation, it combines low-visibility construction, smooth lifting performance, and durable CM hoist engineering for demanding show environments.

Manufacturer's Manual

• DC electro-mechanical double brakes are non-adjusting for low maintenance and quiet operation.
• Precision-machined, heat-treated gearing provides strength and durability.
• One-piece chain guide helps prevent jamming and supports smooth operation.
• Lightweight cast aluminum housing with black powder coat finish supports low visibility in production environments.
• CM patented 10-pocket, oblique-lay lift wheel is designed for quiet, smooth chain travel.
• Overload protection helps prevent lifting of dangerous overloads.
• Chain stop is mounted on the load chain to help prevent over travel.
• Columbus McKinnon load chain is zinc plated to help protect against corrosion.

• Brand: CM
• Model: ET Prostar 2127CF
• Product Type: Electric chain hoist
• Capacity: 500 lb / 1/4 ton
• Lift: 60 ft
• Reeving: Single-reeving
• Voltage: 230-3-50/60
• Brakes: DC electro-mechanical double brakes
• Control Voltage: 110 Volt
• Duty Rating: H-4
• Housing: Cast aluminum with black powder coat finish
• Lift Wheel: CM patented 10-pocket, oblique-lay lift wheel
• Load Chain: Columbus McKinnon zinc-plated load chain
• Protection: Overload protection and load chain stop

Ideal for entertainment rigging, stage productions, touring systems, theaters, houses of worship, event venues, and AV installations requiring a compact, low-visibility hoist for controlled lifting of truss, lighting, audio, and production equipment.
