GENERAL INFORMATION

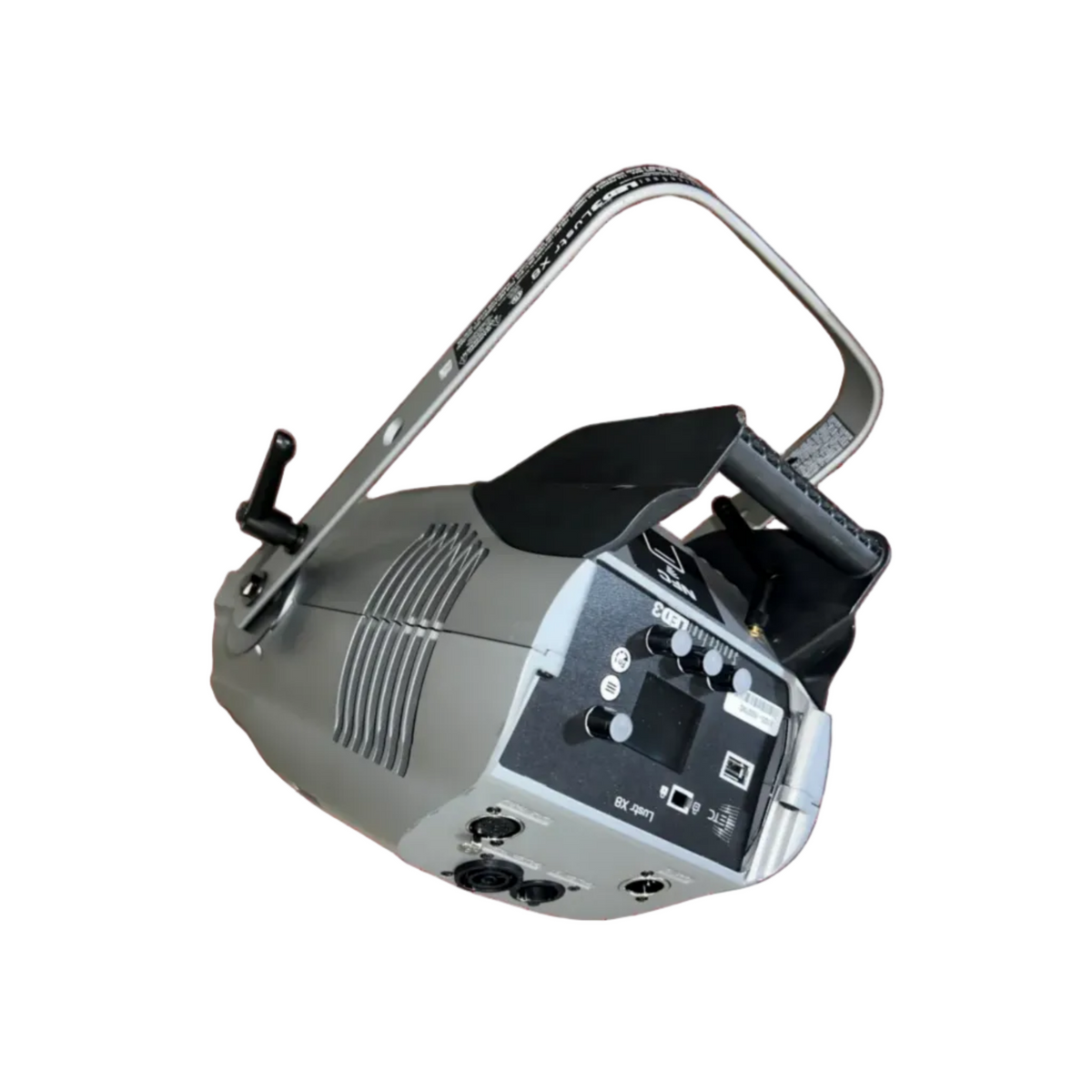

Over a decade of research comes together in the Source Four LED Series 3 fixture. ETC brings the eight-color Lustr X8 array and the tunable white light Daylight HDR array to the professional stage with this fixture. The deep red LEDs in both arrays reveal richer skin tones, bring a deeper dimension to your scenery, and add warmth to sunsets and firelight. Additional features include wireless DMX/RDM through City Theatrical’s Multiverse® technology, contactless programming and control using NFC and ETC’s Set Light app, and an intuitive user interface featuring a color picker and action-responsive backlit encoders.
Does NOT include Lens Tube.
SOURCE
- LED details 90 Lumileds LUXEON® C and CZ
- Max lumens Lustr X8: 10,889
- Lumens per watt Lustr X8: 35
- L70 rating (hours to 70% output) >54,000
COLOR
- Colors used Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
- Color temperature range 1900–10450 K
- Calibrated array
- Red shift (selectable)
OPTICAL
- Beam angle range Swappable lens tubes between 5°–90°
- Gate size 80 mm
- Aperture size 6.25–17.5 in (depending on lens tube)
- Pattern projection enables
- Pattern size A or B
- Camera flicker control/Hz range - 5 kHz, 25 kHz
- Can be used with LED CYC and Fresnel adapters
CONTROL
- Input method 5-Pin XLR, Multiverse wireless and NFC
- Protocols DMX-512, RDM, City Theatrical Multiverse, NFC
- Modes (footprint) 5 modes (1–12 channels)
- RDM configuration
- UI type Full color display
- Local control
- Onboard presets (12)
- Onboard sequences
- FixtureLink
- 15-bit virtual dimming engine
ELECTRICAL
- Voltage range 100–240 VAC 50/60 Hz
- Input method AC via Neutrik powerCON TRUE1 TOP
- Inrush 40 A at 120 V (First half-cycle) 80 A at 230 V (First half-cycle)
- Fixtures per circuit 5 (link up to 4 via Power Thru connector)
- TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
- Wattage typical Lustr X8: 307 W at 120 V, 305 W at 230 V
- Current draw Lustr X8: 2.6 A at 120 V, 1.35 A at 230 V
THERMAL
- Ambient operating temp 0°–40° C (32°–104° F)
- Fan (controllable)
- Droop compensation
- dB range 34 dBA average at 1 m
- BTUs/hour Lustr X8: 1,047
PHYSICAL
- Materials Die-cast, all metal housing
- Color options Black, white, silver, or custom color
- Mounting options Yoke, cyc floor stand (sold separately)
- IP rating IP20
- Weight With barrel: 8.87 kg (19.55 lb), Without barrel: 6.76 kg (14.90 lb)
- Included accessories Hanging yoke, 1.5 m power cable, A-size gobo holder, c-clamp*
- Positive locking double-clutch fixture body
- Slot for glass or stainless steel patterns and soft focus diffuser
- Wide accessory slot with sliding cover for motorized pattern device or iris
