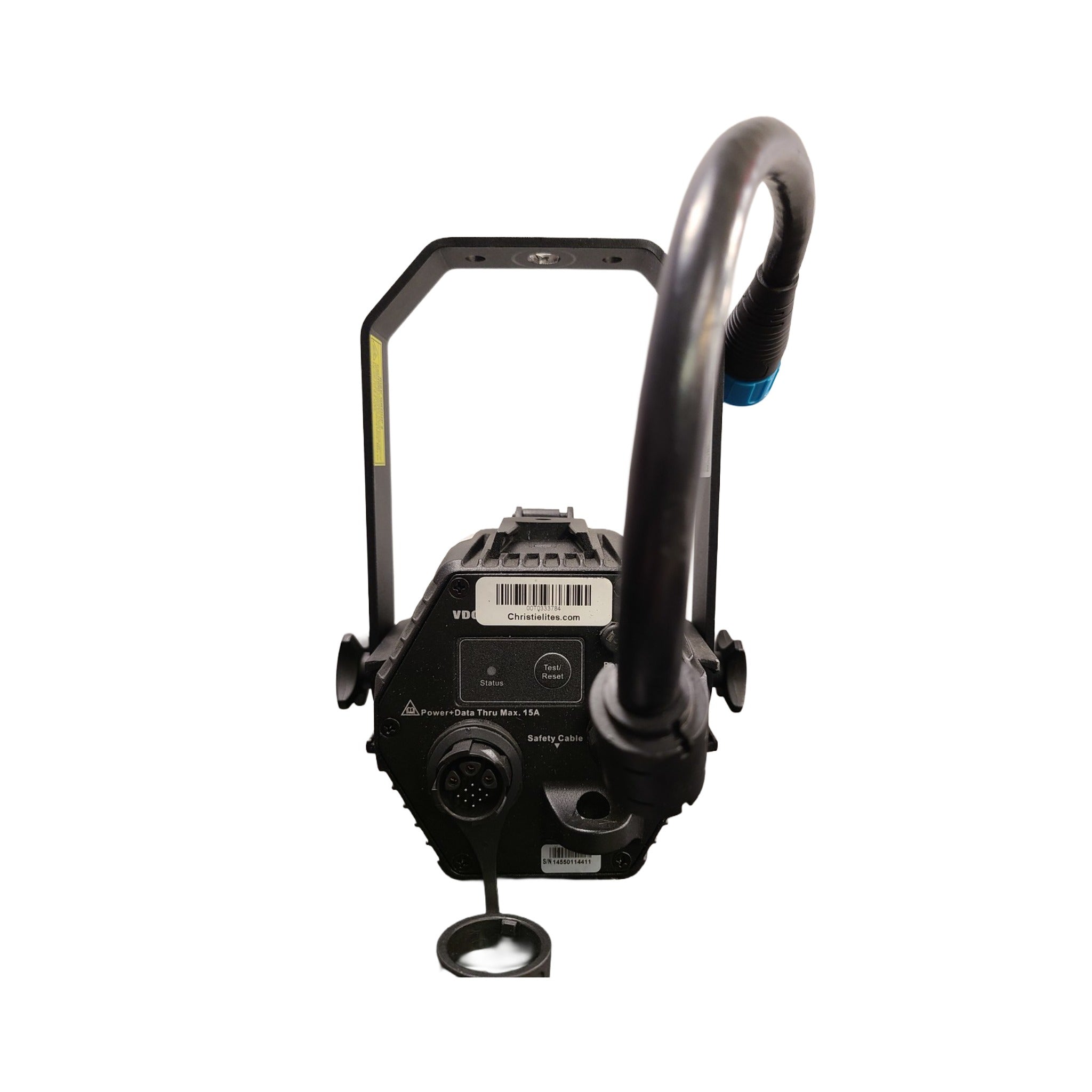

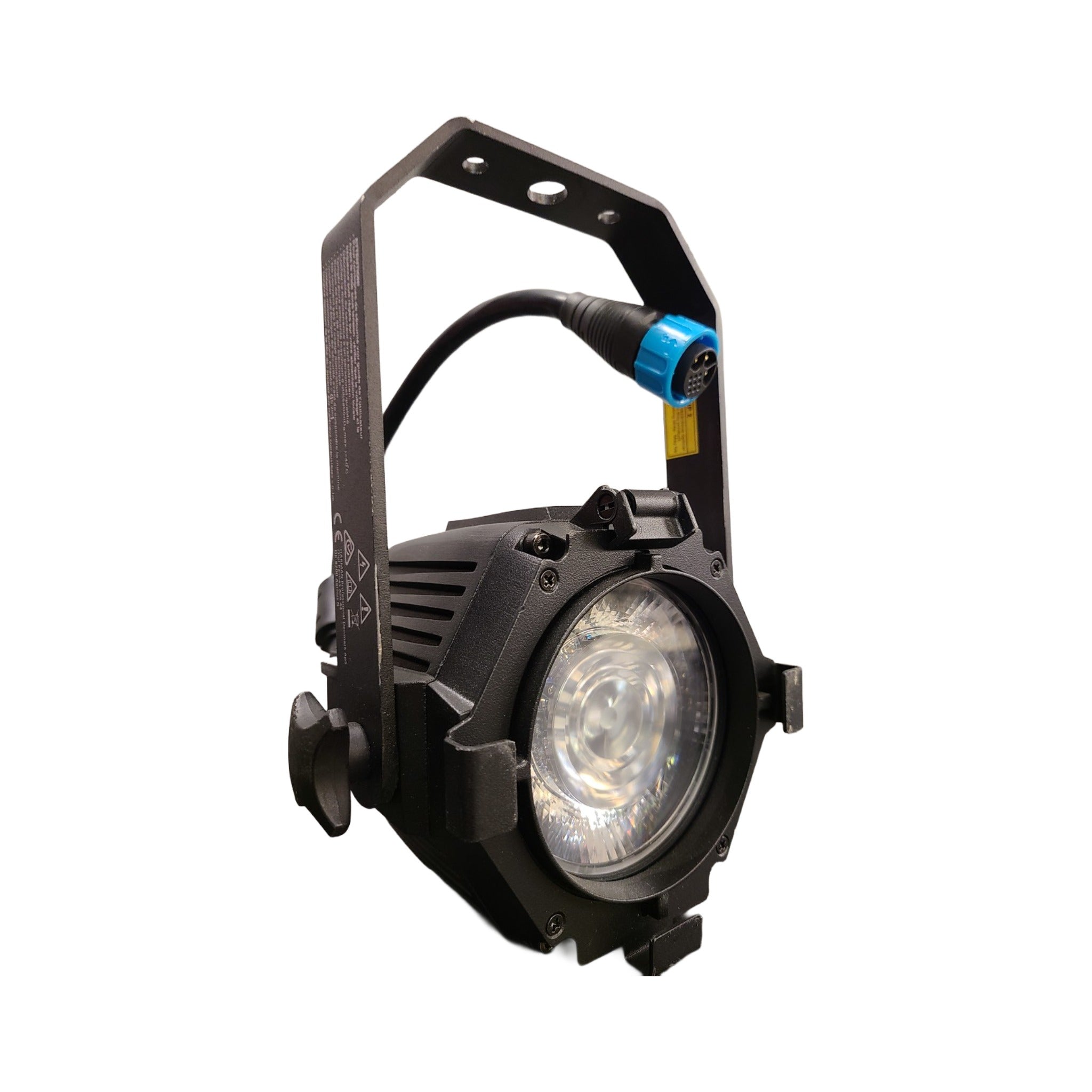

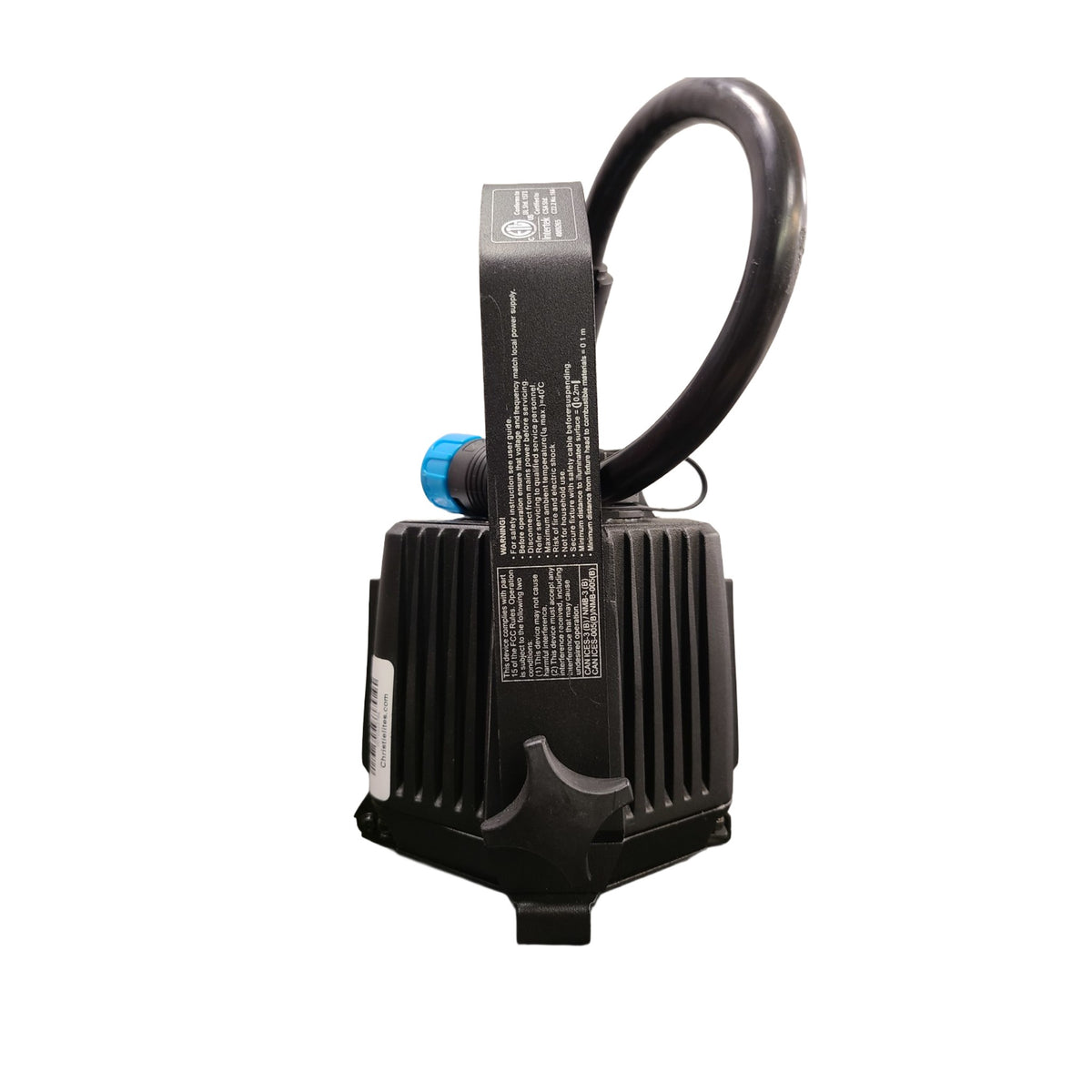

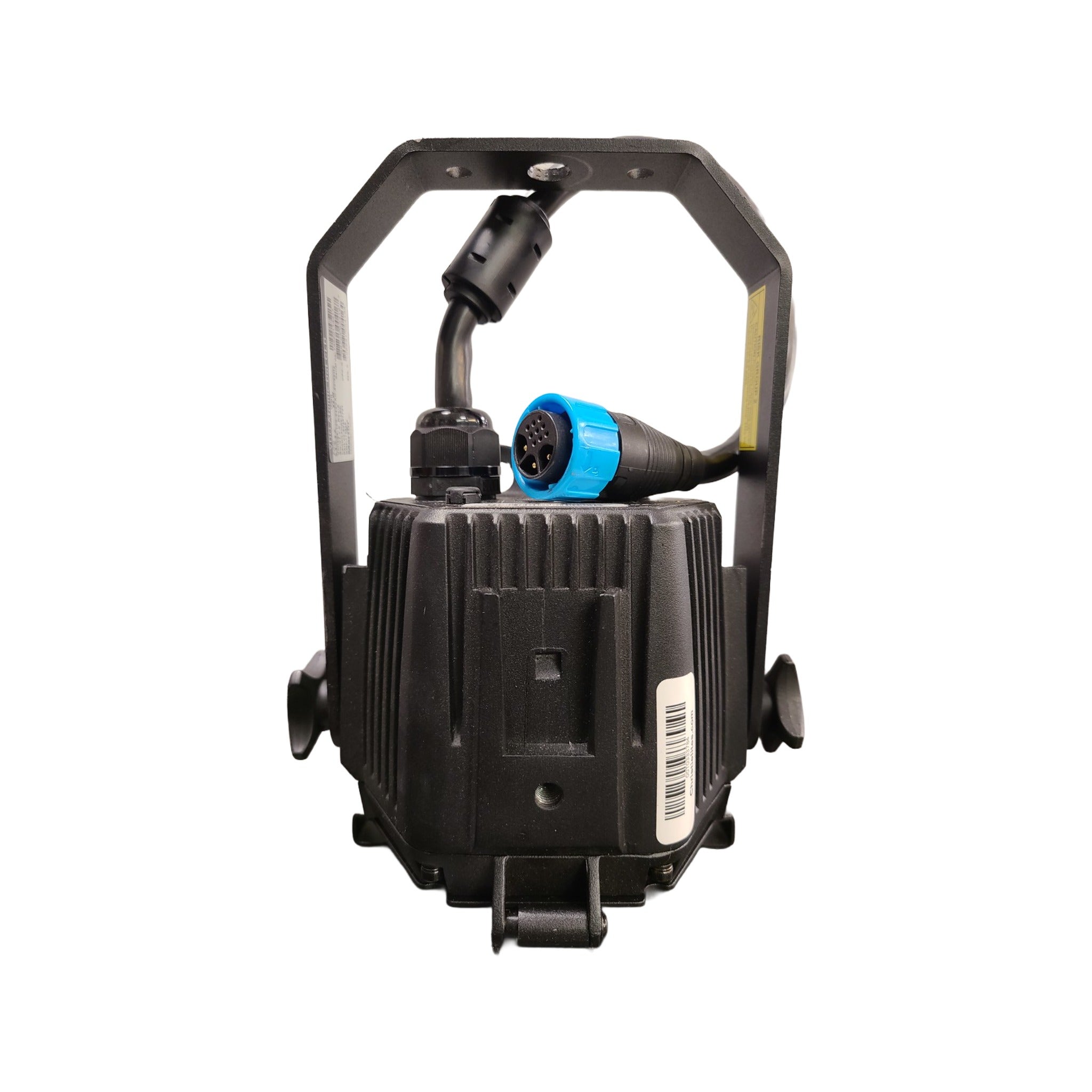

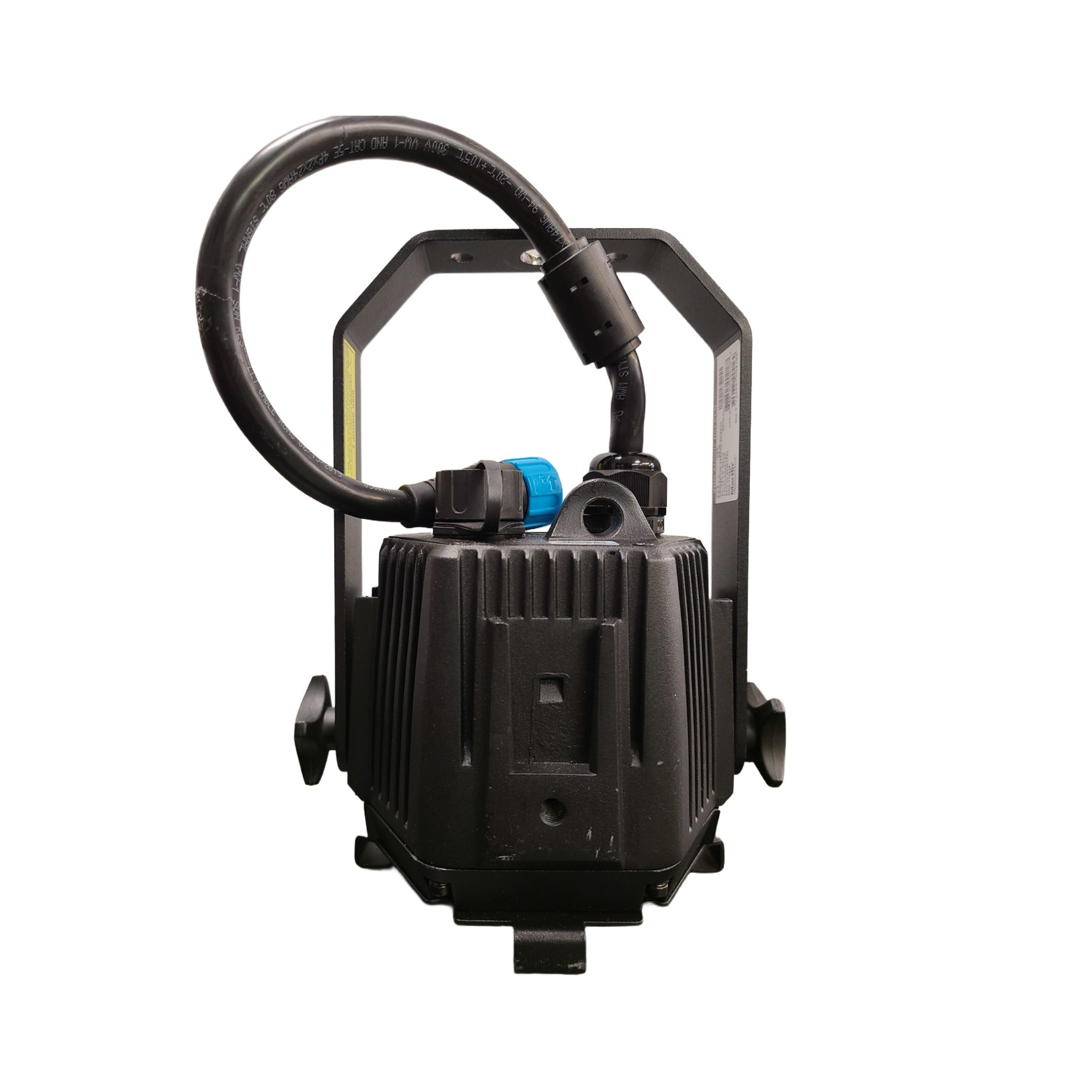

VDO Atomic Dot CLD

The Martin VDO Atomic Dot CLD is a compact hybrid lighting and video fixture combining a cold white strobe/blinder beam with a video-controlled RGB Aura backlight. Designed for flexible deployment, it supports DMX, RDM, Art-Net, sACN, and Martin P3 without external interface boxes. The integrated VDO Grid Mount System and PDE hybrid cabling allow multiple fixtures to be interconnected into battens and arrays for touring, broadcast, corporate, and nightclub environments. A WRM color temperature variant is also available.

• Cold white 5700 K beam/strobe/blinder with boost and continuous modes
• 11° beam angle and 22° field angle
• RGB Aura backlight with 16 individually controllable LEDs
• Beam and Aura dimming with four selectable dimming curves
• Aura color mixing with 2,000 - 11,000 K color temperature control
• 36 virtual Aura color presets with continuous rotation and random color
• P3 Mix with crossfade between DMX and video control
• Built-in FX for Beam, Aura, and combined output
• DMX modes: 1, 3, 4, 19, 64 channels
• PDE hybrid cable for power, DMX, Art-Net, sACN, and P3
• VDO Grid Mount System for battens and creative arrays
• Interlocking compatibility with VDO Atomic Bold and MAC One
• Detachable yoke assembly
• PAR30-size front accessory holder
• Passive convection cooling
• IP65-rated aluminum housing

• Light Source - Beam: Cold White LED
• Light Source - Aura: 16 x RGB LEDs
• Maximum Lumen Output: 3,350 lm (boost), 1,600 lm (continuous)
• Beam Angle: 11° (half peak)
• Field Angle: 22° (one-tenth peak)
• Beam Color Temperature: 5,700 K
• Aura Color Temperature: 2,000 - 11,000 K
• CRI: >= 80
• Color Resolution: 16-bit (Beam), 16-bit per color per pixel (Aura)
• LED Lifetime: 50,000 hours to >70% output
• Lens Diameter: 95 mm
• Control Protocols: DMX512-A, RDM (ANSI E1.20), Art-Net 1-4 including RDM over Art-Net, sACN (ANSI E1.31-2016), Martin P3
• Ethernet: 10/100 Mbit
• DMX Channels: 1, 3, 4, 19, 64
• AC Input: 100-240 V AC, 50/60 Hz
• Power Consumption: 55 W max
• Max Current Draw: 0.6 A @ 100-120 V, 0.3 A @ 208-240 V
• Power Factor: 0.99 @ 100 V, 0.98 @ 120 V, 0.95 @ 208 V, 0.96 @ 230 V, 0.94 @ 240 V
• Cooling: Convection
• Ambient Temperature Range: 0 C to 40 C
• Heat Dissipation: 171 BTU/hr typical
• Protection Rating: IP65
• Housing: Aluminum, black
• Dimensions (with bracket): 175 x 242 x 146 mm
• Dimensions (without bracket): 130 x 134 x 146 mm
• Weight: 2.2 kg with bracket, 2.0 kg without bracket
• Compliance: EN 60598-2-17, EN 62471, EN 62493, UL 1573, CSA 22.2 No. 166, RCM, UKCA

Suitable for touring productions, television studios, corporate events, and nightclub installations, the VDO Atomic Dot CLD can be deployed as a compact strobe, blinder, pixel-mapped element, or array component in scalable creative configurations.
